BLUE PRINT

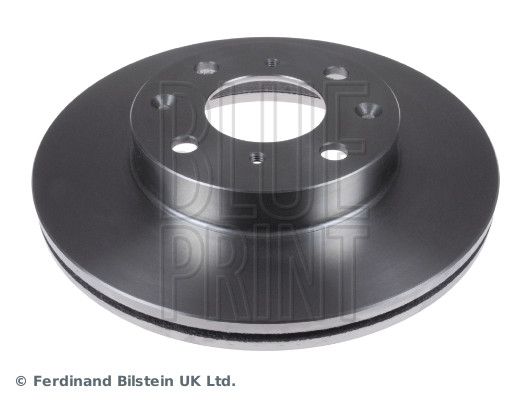

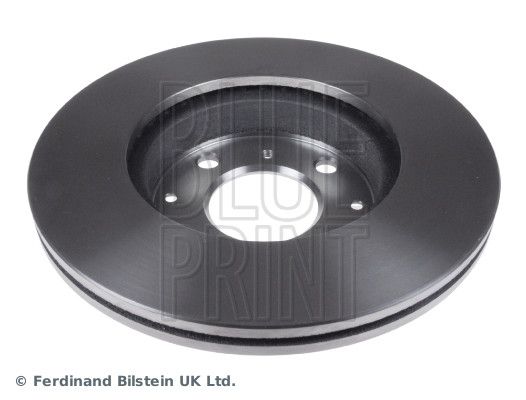

Blue Print ADH24316 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: ADH24316

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£66.95 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HONDA

CIVIC MK IV Saloon (ED, EF)

Description	Cylinder Capacity	Horse Power	Year
1.6 i 16V (ED4)	1590 CCM	109 HP	11/1987 - 09/1991
1.5 i 16V (ED3, SH4)	1493 CCM	94 HP	10/1987 - 09/1991
1.6 i 16V (ED4)	1590 CCM	110 HP	10/1987 - 09/1991
1.6 i 16V 4x4 (EE5)	1590 CCM	109 HP	10/1989 - 09/1991
1.5 i 16V (ED3)	1493 CCM	90 HP	10/1987 - 09/1991

CIVIC MK IV Hatchback (EC, ED, EE, EF)

Description	Cylinder Capacity	Horse Power	Year
1.6 i 16V (ED7)	1590 CCM	109 HP	10/1987 - 09/1991
1.5 i 16V (ED6)	1493 CCM	94 HP	10/1988 - 09/1991
1.6 i 16V (ED7)	1590 CCM	110 HP	10/1987 - 09/1991
1.6 i 16V (ED7)	1590 CCM	130 HP	09/1987 - 09/1991
1.5 i 16V (ED6)	1493 CCM	90 HP	10/1988 - 09/1991

CIVIC Mk II Shuttle (EE, EF)

Description	Cylinder Capacity	Horse Power	Year
1.6 i 16V 4WD (EE4)	1590 CCM	109 HP	01/1988 - 12/1989
1.6 i 16V 4WD (EE4)	1590 CCM	110 HP	01/1988 - 02/1995
1.4 i 16V (EE1)	1396 CCM	90 HP	01/1988 - 12/1992
1.6 4x4 (EE4)	1590 CCM	116 HP	01/1988 - 12/1992

CRX (AF, AS)

Description	Cylinder Capacity	Horse Power	Year
1.6 i 16V (AS)	1590 CCM	125 HP	03/1986 - 10/1987

CRX Mk II (ED, EE)

Description	Cylinder Capacity	Horse Power	Year
1.6 i 16V (ED9)	1590 CCM	131 HP	10/1987 - 12/1989
1.6 i 16V (ED9)	1590 CCM	124 HP	10/1987 - 02/1992

INTEGRA Hatchback (DA)

Description	Cylinder Capacity	Horse Power	Year
1.5 (DA4)	1488 CCM	86 HP	10/1985 - 08/1989
1.6 (DA1, DA3)	1590 CCM	120 HP	03/1986 - 08/1989

The Blue Print ADH24316 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 19 mm brake disc thickness, 242 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Thickness [mm] : 19

Rim Hole Number : 4

Number of mounting bores : 4

Thickness [mm] : 44

Outer Diameter [mm] : 242

Bolt Hole Circle Ø [mm] : 100

Surface : Coated

Brake Disc Type : internally vented

Fitting Position : Front Axle

Minimum thickness [mm] : 17

Centering Diameter [mm] : 61
