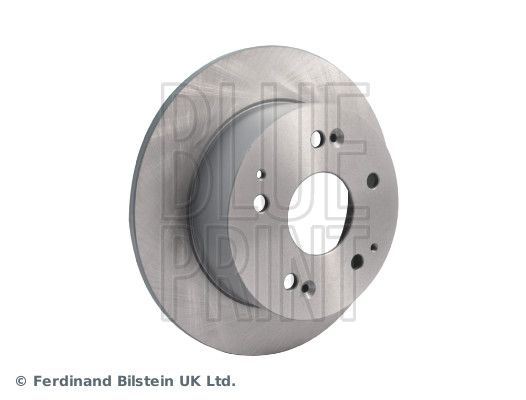

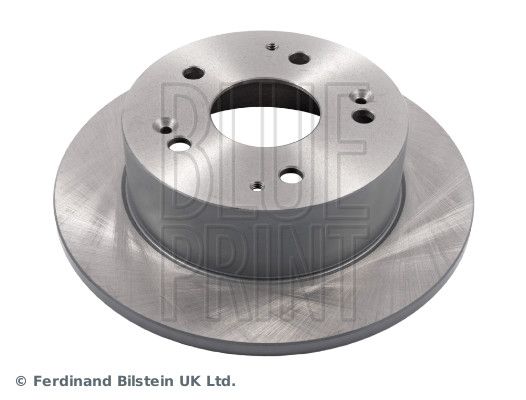

Blue Print ADH24353 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: ADH24353

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£72.52 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HONDA

ACCORD VI (CK, CG, CH, CF, CL)

Description	Cylinder Capacity	Horse Power	Year
2.2 Type-R (CH1)	2156 CCM	212 HP	02/1999 - 12/2002
2.3 (CL3, S86)	2254 CCM	154 HP	01/2001 - 06/2003

ACCORD Mk VII Hatchback (CH, CL)

Description	Cylinder Capacity	Horse Power	Year
2.3 (CL4)	2254 CCM	154 HP	11/2000 - 12/2002

The Blue Print ADH24353 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 10 mm brake disc thickness, 260 mm outer diameter, solid disc construction, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Thickness [mm] : 10

Rim Hole Number : 5

Number of mounting bores : 4

Thickness [mm] : 64

Outer Diameter [mm] : 260

Bolt Hole Circle Ø [mm] : 114

Surface : Coated

Brake Disc Type : solid

Fitting Position : Rear Axle

Minimum thickness [mm] : 8

Centering Diameter [mm] : 64
