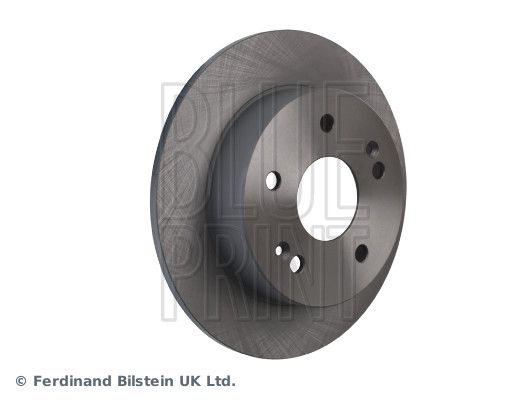

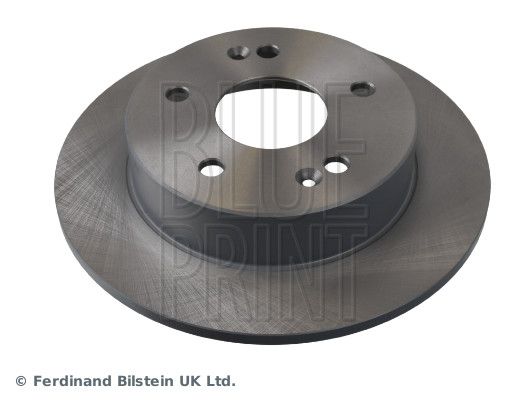

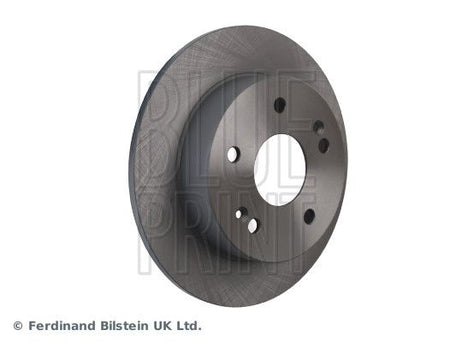

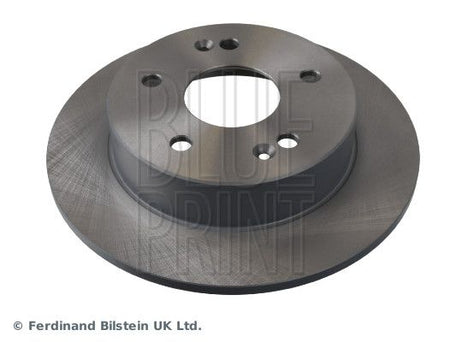

Blue Print ADH24374 Brake Disc
Your selected vehicle
Regular price
£106.86
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Blue Print ADH24374 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 9 mm brake disc thickness, 260 mm outer diameter, solid disc construction, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Thickness [mm] :
9
Rim Hole Number :
5
Number of mounting bores :
5
Thickness [mm] :
50
Outer Diameter [mm] :
260
Bolt Hole Circle Ø [mm] :
114
Surface :
Coated
Brake Disc Type :
solid
Fitting Position :
Rear Axle
Minimum thickness [mm] :
8
Centering Diameter [mm] :
64
- Vendor BLUE PRINT
- SKU ADH24374
- HONDA : 42510-S87-A00
- APEC : DSK2177
- MINTEX : MDC1864
- TEXTAR : 92172100
- TEXTAR : 92172103
