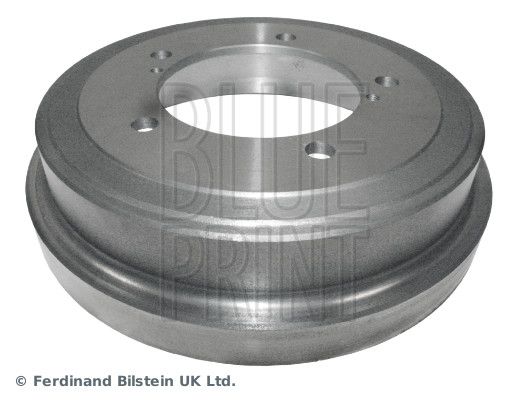

Blue Print ADK84705 Brake Drum - 1

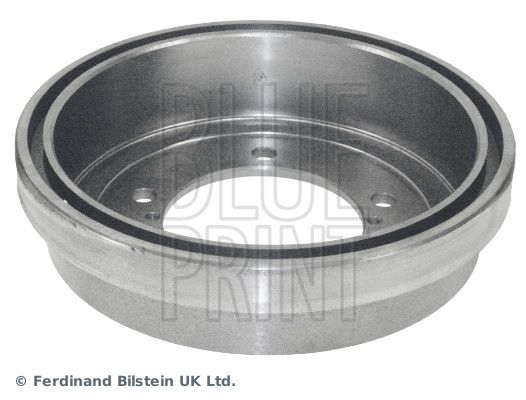

Blue Print ADK84705 Brake Drum - 2
Blue Print ADK84705 Brake Drum - 1
Blue Print ADK84705 Brake Drum - 2
BLUE PRINT

Blue Print ADK84705 Brake Drum

SKU: ADK84705
Your selected vehicle
Out of stock
Out of Stock
£134.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
GRAND VITARA I (FT, HT)
Description Cylinder Capacity Horse Power Year
2.5 V6 24V 4x4 (TD62, SQ625) 2493 CCM 144 HP 04/1998 - 07/2003
1.6 4x4 (SQ416) 1590 CCM 94 HP 01/2001 - 12/2005
2.0 4x4 (SQ420) 1995 CCM 128 HP 05/1999 - 09/2005
2.0 HDI 110 16V 4x4 (SQ420D, TD83V, JA420WD) 1997 CCM 109 HP 07/2001 - 09/2005
2.5 V6 24V 4x4 (SQ625) 2493 CCM 158 HP 08/2004 - 11/2005
1.6 4x4 (SQ416) 1590 CCM 97 HP 09/2003 - 09/2005
2.0 4x4 (SQ 420) 1995 CCM 140 HP 04/1998 - 08/2005
2.0 HDI 110 4x4 (SQ420D, TD82V) 1997 CCM 109 HP 02/2001 - 12/2003
2.0 4x4 (SQ 420) 1995 CCM 132 HP 08/1998 - 11/2004
GRAND VITARA I Open Off-Road Vehicle (GT)
Description Cylinder Capacity Horse Power Year
1.6 4x4 (SQ416) 1590 CCM 94 HP 03/1998 - 07/2003
2.0 4x4 (SQ420) 1995 CCM 128 HP 03/1998 - 07/2003
JIMNY Closed Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V 4WD (SN413, JB43) 1328 CCM 82 HP From 02/2001

The Blue Print ADK84705 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 220 mm inner diameter, 262 mm outer diameter, rear axle fitting position, and 108.2 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Rim Hole Number : 5
Number of mounting bores : 2
Width [mm] : 54
Thickness [mm] : 64
Inner Diameter [mm] : 220
Outer Diameter [mm] : 262
Bolt Hole Circle Ø [mm] : 140
max. brake drum reboring dimension [mm] : 222
Fitting Position : Rear Axle
Centering Diameter [mm] : 108.2
  • Vendor BLUE PRINT
  • SKU ADK84705
  • Barcode 5050063847055
  • SUZUKI : 43511-65D10 43511-67D01 43511-82A00
  • DELPHI : BF531
  • FTE : 9190022
  • HELLA : 8DT 355 302-471
  • MINTEX : MBD407
  • TEXTAR : 94045700
  • TRW : DB4444
