BLUE PRINT

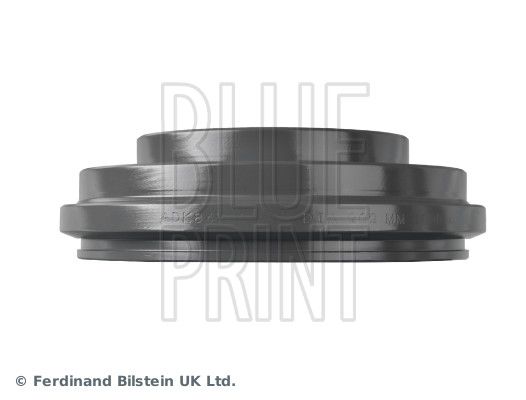

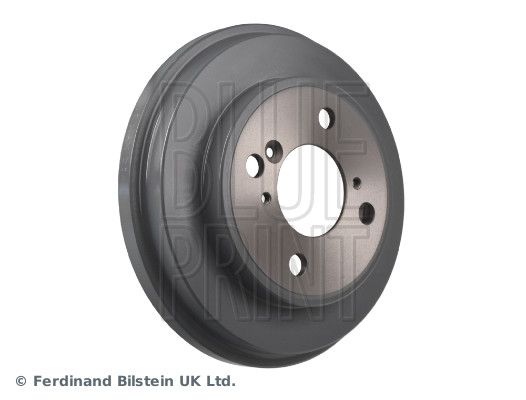

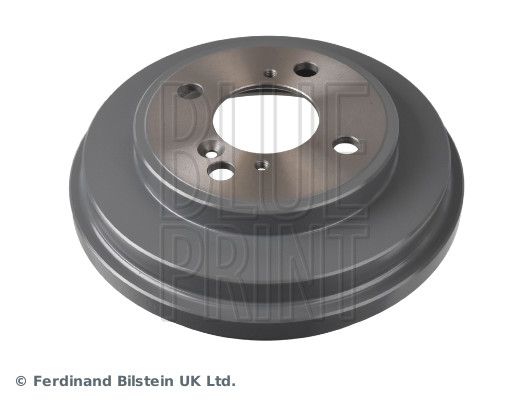

Blue Print ADK84710 Brake Drum

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: ADK84710

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£77.66 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI

IGNIS I (FH)

Description	Cylinder Capacity	Horse Power	Year
1.5 Sport (RG415)	1490 CCM	109 HP	12/2003 - 12/2005

IGNIS II (MH)

Description	Cylinder Capacity	Horse Power	Year
1.5 4x4 (RM415)	1490 CCM	99 HP	From 09/2003
1.3 4x4 (RM413)	1328 CCM	94 HP	From 09/2003

The Blue Print ADK84710 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 200 mm inner diameter, 232 mm outer diameter, rear axle fitting position, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum

Rim Hole Number : 4

Number of mounting bores : 1

Width [mm] : 38

Thickness [mm] : 67

Inner Diameter [mm] : 200

Outer Diameter [mm] : 232

Bolt Hole Circle Ø [mm] : 100

max. brake drum reboring dimension [mm] : 202

Fitting Position : Rear Axle

Centering Diameter [mm] : 60
