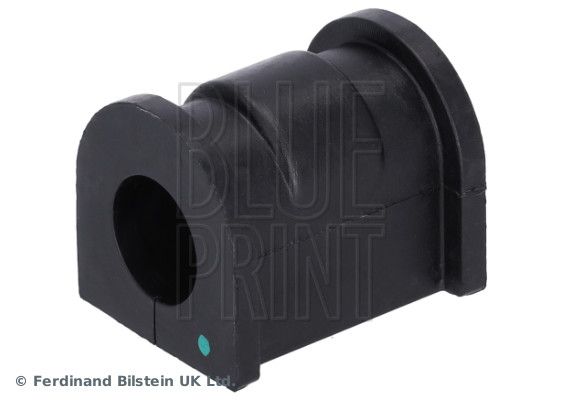

Blue Print ADK88013 Mounting, stabiliser bar - 1

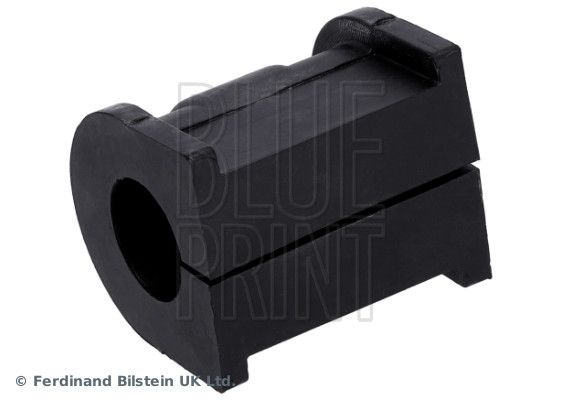

Blue Print ADK88013 Mounting, stabiliser bar - 2
Blue Print ADK88013 Mounting, stabiliser bar - 1
Blue Print ADK88013 Mounting, stabiliser bar - 2
BLUE PRINT

Blue Print ADK88013 Anti-Roll Bar Bush

SKU: ADK88013
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£14.59 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
ALTO V (HA12_, HA23_, HA22_)
Description Cylinder Capacity Horse Power Year
1.0 993 CCM 58 HP 01/2000 - 06/2002
IGNIS I (FH)
Description Cylinder Capacity Horse Power Year
1.3 (HV51, HX51, RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.3 4WD (RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.5 Sport (RG415) 1490 CCM 109 HP 12/2003 - 12/2005
WAGON R+ Hatchback (EM)
Description Cylinder Capacity Horse Power Year
1.0 (RC410, SR410, SR412) 996 CCM 65 HP 02/1998 - 05/2000
1.2 4WD (SR412) 1171 CCM 69 HP 02/1998 - 05/2000
1.2 (SR412) 1171 CCM 69 HP 02/1998 - 05/2000
WAGON R+ (MA)
Description Cylinder Capacity Horse Power Year
1.3 (RB413) 1298 CCM 76 HP 05/2000 - 12/2004
1.3 4WD (RB413) 1298 CCM 76 HP From 10/2001
1.3 (RB413) 1328 CCM 94 HP 09/2003 - 08/2006
1.3 4WD (RB413) 1328 CCM 94 HP From 09/2003
1.0 (RB310) 993 CCM 53 HP 07/2001 - 12/2006
WAGON R (MH21, MH22)
Description Cylinder Capacity Horse Power Year
1.2 1229 CCM 80 HP 06/2004 - 08/2005
1.3 (RB413) 1328 CCM 88 HP 09/2003 - 12/2010

The Blue Print ADK88013 Anti-Roll Bar Bush is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 21 mm inner diameter, 41 mm outer diameter, rubber construction, and front axle fitting position. It is listed in the mounting, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Mounting, stabiliser bar
Length [mm] : 40
Width [mm] : 51
Thickness [mm] : 41
Inner Diameter [mm] : 21
Outer Diameter [mm] : 41
Material : Rubber
Fitting Position : Front Axle
  • Vendor BLUE PRINT
  • SKU ADK88013
  • Barcode 5050063880137
  • SUZUKI : 42431-70B42 42431-83E00 42431-83E00-000
  • FEBI BILSTEIN : 42257
