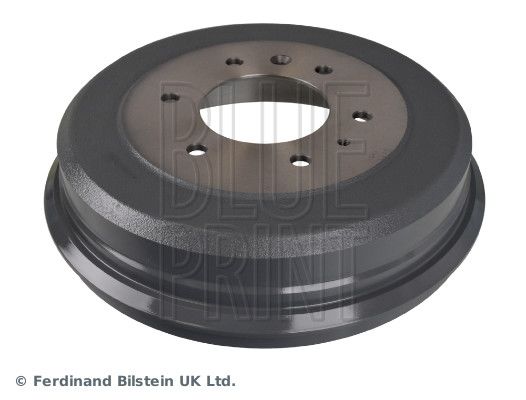

Blue Print ADM54708 Brake Drum - 1

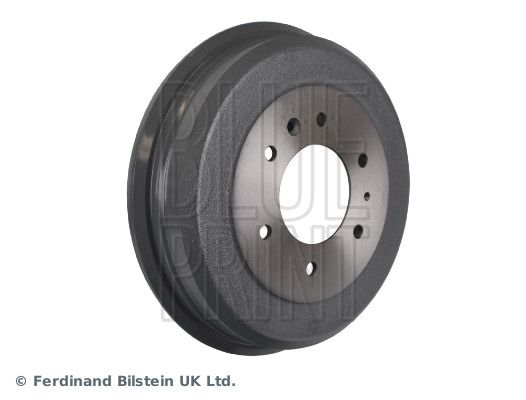

Blue Print ADM54708 Brake Drum - 2

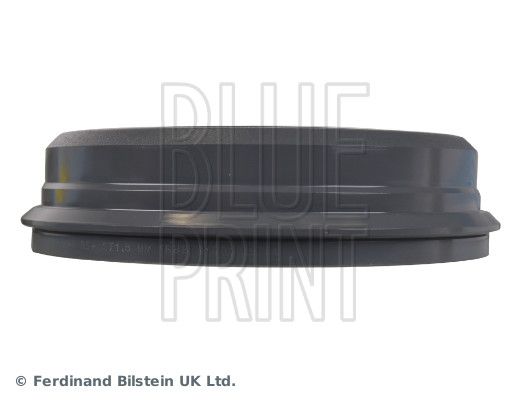

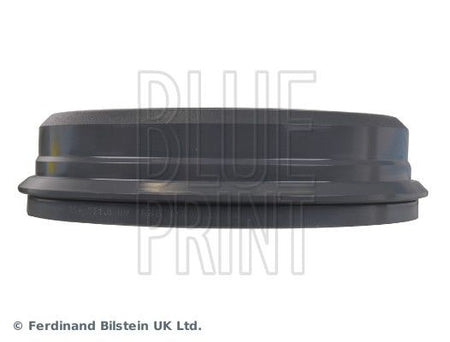

Blue Print ADM54708 Brake Drum - 3
Blue Print ADM54708 Brake Drum - 1
Blue Print ADM54708 Brake Drum - 2
Blue Print ADM54708 Brake Drum - 3
BLUE PRINT

Blue Print ADM54708 Brake Drum

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: ADM54708

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£88.29 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 78 HP 10/1999 - 04/2002
2.5 TD 2500 CCM 84 HP 04/2002 - 06/2006
2.5 TDdi 2499 CCM 117 HP 04/2002 - 09/2005
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 2953 CCM 156 HP 05/2006 - 07/2012
RANGER (TKE)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 125 HP From 04/2011
2.2 TDCi 2198 CCM 120 HP From 04/2011
2.2 TDCi 2198 CCM 150 HP From 11/2011
2.2 TDCi 2198 CCM 131 HP From 05/2015
MAZDA
B-SERIE (UF)
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 86 HP 04/1996 - 01/1999
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 D 2499 CCM 78 HP 06/1999 - 11/2006
2.5 D 2499 CCM 84 HP 12/2002 - 11/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

The Blue Print ADM54708 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 270 mm inner diameter, 328 mm outer diameter, rear axle fitting position, and 93 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Rim Hole Number : 6
Number of mounting bores : 1
Width [mm] : 68
Thickness [mm] : 81
Inner Diameter [mm] : 270
Outer Diameter [mm] : 328
Bolt Hole Circle Ø [mm] : 140
max. brake drum reboring dimension [mm] : 271.5
Fitting Position : Rear Axle
Centering Diameter [mm] : 93
  • Vendor BLUE PRINT
  • SKU ADM54708
  • Barcode 5050063069921
  • FORD : 1 733 770 1 768 317 3 780 207
  • MAZDA : UH71-26-251 UH71-26-251B UH71-26-251C
  • FORD USA : XM341126AC XM341126AD
  • FORD MOTOR COMPANY : XM341126AA XM341126AC XM34-1126-AD
  • BORG & BECK : BBR7230
  • DELPHI : BF581
  • MINTEX : MBD314
  • TEXTAR : 94033500
  • TRW : DB4371
