BLUE PRINT

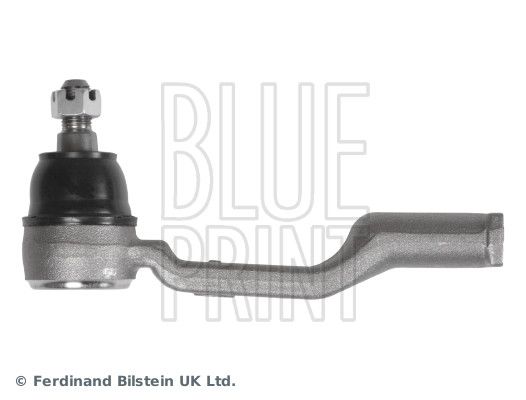

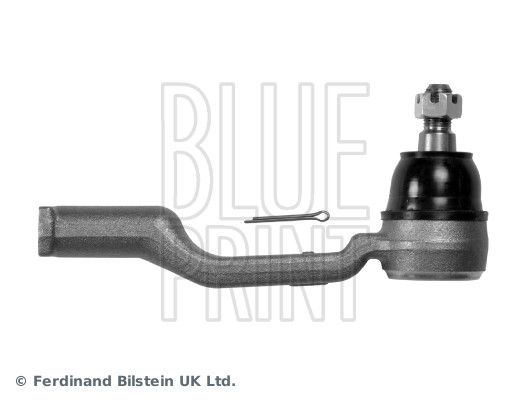

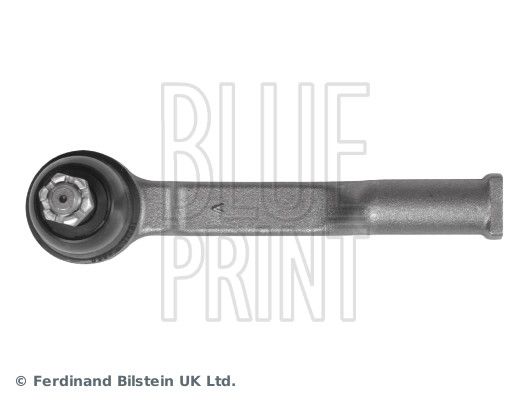

Blue Print ADM58768 Tie Rod End

SKU: ADM58768

Your selected vehicle

Out of stock

Out of Stock

£28.60 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

RANGER (ET)

Description	Cylinder Capacity	Horse Power	Year
2.5 TDCi 4x4	2499 CCM	143 HP	05/2006 - 07/2012
2.5 TDdi	2499 CCM	143 HP	05/2006 - 07/2012

MAZDA

BT-50 Platform/Chassis (CD, UN)

Description	Cylinder Capacity	Horse Power	Year
2.5 CDVi (UNY0W3)	2500 CCM	143 HP	From 12/2006
3.0 CDVi 4x4 (UNY0E3)	2953 CCM	156 HP	From 12/2006

BT-50 Pickup (CD, UN)

Description	Cylinder Capacity	Horse Power	Year
2.5 MRZ-CD 4x4 (UNY0W3)	2499 CCM	143 HP	12/2006 - 12/2015
3.0 CDVi (UNY0E3)	2953 CCM	156 HP	12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3)	2953 CCM	156 HP	10/2006 - 12/2015
2.5 MRZ-CD (UNY0W3)	2499 CCM	143 HP	08/2006 - 06/2013

The Blue Print ADM58768 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 158 mm length, M12 x 1,25 and M14 x 1,5 external thread size, front axle left, inner, and front axle right fitting position, and with crown nut and split pin. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Length [mm] : 158

External Thread Size : M12 x 1,25

External Thread Size : M14 x 1,5

Spanner Size : 21

Cone Size [mm] : 17

Fitting Position : Front Axle Left

Fitting Position : inner

Fitting Position : Front Axle Right

Supplementary Article/Supplementary Info : with crown nut and split pin

Blue Print ADM58768 Tie Rod End
