BLUE PRINT

Blue Print ADN14364 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: ADN14364

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£86.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN

100NX (B13)

Description	Cylinder Capacity	Horse Power	Year
2.0 GTI	1998 CCM	143 HP	03/1991 - 10/1994

ALMERA Hatchback (N15)

Description	Cylinder Capacity	Horse Power	Year
2.0 GTi	1998 CCM	143 HP	07/1996 - 03/2000

SUNNY Mk III Hatchback (N14)

Description	Cylinder Capacity	Horse Power	Year
2.0 GTI 16V	1998 CCM	143 HP	10/1990 - 05/1995
2.0 GTI-R 4x4	1998 CCM	220 HP	10/1990 - 05/1995

SUNNY III Liftback (N14)

Description	Cylinder Capacity	Horse Power	Year
2.0 i 16V	1998 CCM	143 HP	10/1990 - 05/1995

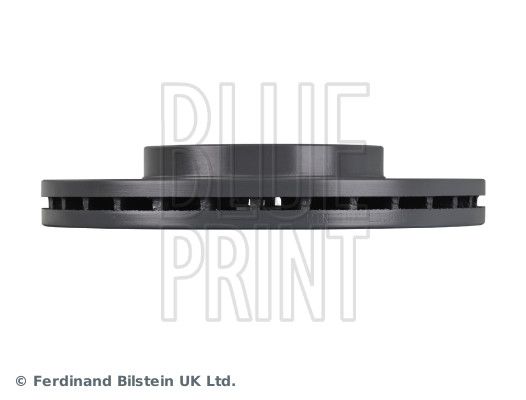

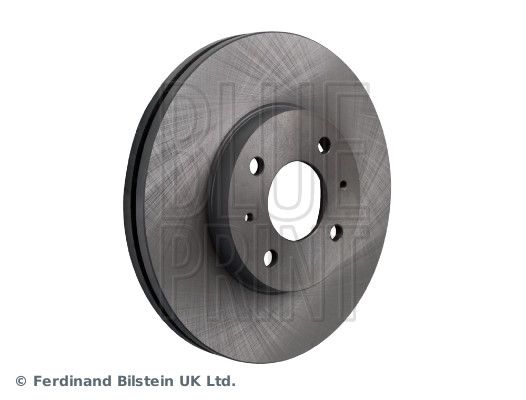

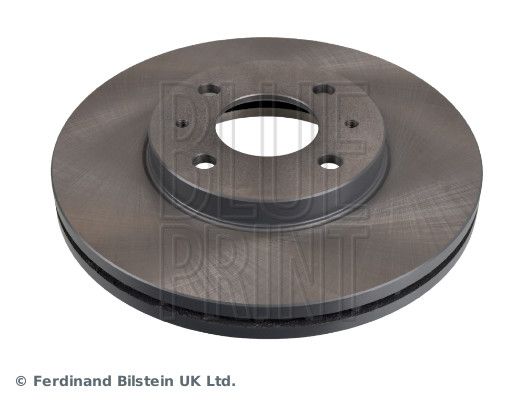

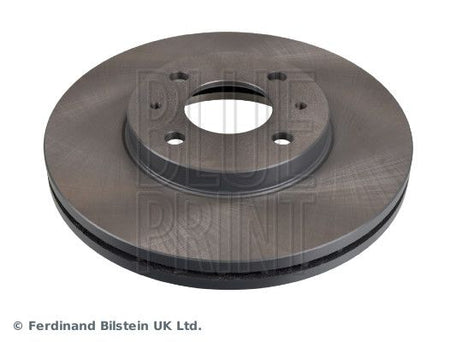

The Blue Print ADN14364 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 26 mm brake disc thickness, 257 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Thickness [mm] : 26

Rim Hole Number : 4

Thickness [mm] : 46

Outer Diameter [mm] : 257

Bolt Hole Circle Ø [mm] : 100

Surface : Coated

Brake Disc Type : internally vented

Fitting Position : Front Axle

Minimum thickness [mm] : 24

Centering Diameter [mm] : 61
