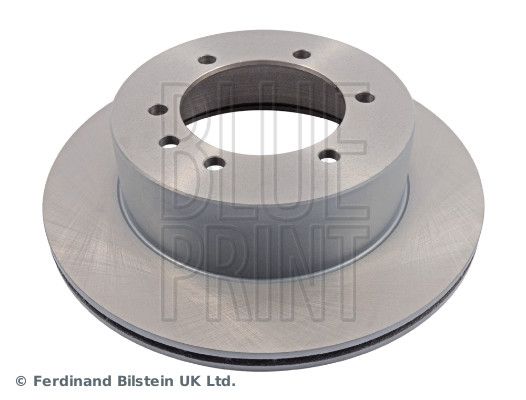

Blue Print ADN14378 Brake Disc - 1

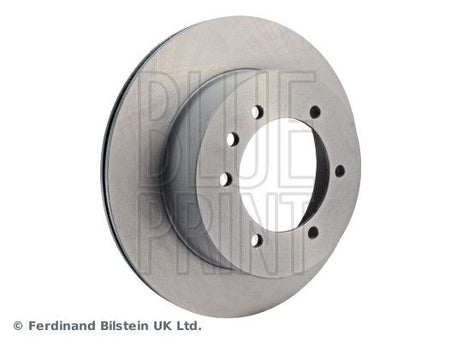

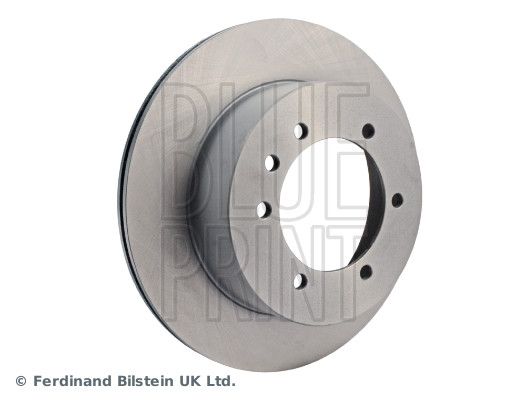

Blue Print ADN14378 Brake Disc - 2

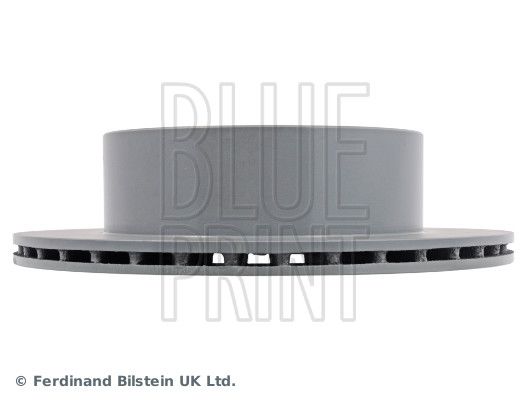

Blue Print ADN14378 Brake Disc - 3
Blue Print ADN14378 Brake Disc video
Blue Print ADN14378 Brake Disc video
Blue Print ADN14378 Brake Disc - 1
Blue Print ADN14378 Brake Disc - 2
Blue Print ADN14378 Brake Disc - 3
Blue Print ADN14378 Brake Disc video
Blue Print ADN14378 Brake Disc video
BLUE PRINT

Blue Print ADN14378 Brake Disc

SKU: ADN14378
Your selected vehicle
Out of stock
Out of Stock
£121.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
PATROL GR   (Y60, GR)
Description Cylinder Capacity Horse Power Year
2.8 TD (Y60A) 2826 CCM 116 HP 09/1988 - 06/1997
4.2 D (CRGY60, KY60, KRY60, WRGY60) 4169 CCM 116 HP 11/1988 - 06/1997
4.2 Cat 4169 CCM 165 HP 11/1988 - 02/1998
4.2 Efi 4WD (CGY60, WGY60) 4169 CCM 175 HP 02/1988 - 12/1995
2.8 TD 2826 CCM 111 HP 10/1995 - 02/1998
4.2 D 4x4 (CRGY60, VRY60, VRGY60, WRY60, WRGY60) 4169 CCM 125 HP 07/1992 - 05/1994
PATROL GR Mk II Wagon (Y61)
Description Cylinder Capacity Horse Power Year
2.8 TD 2826 CCM 129 HP 06/1997 - 05/2000
3.0 DTi 2953 CCM 158 HP From 05/2000
3.0 DTi 2953 CCM 160 HP From 05/2000
2.8 TDiC (Y61) 2826 CCM 131 HP 10/1997 - 02/2000

The Blue Print ADN14378 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 18 mm brake disc thickness, 315 mm outer diameter, internally vented disc construction, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Thickness [mm] : 18
Rim Hole Number : 6
Number of mounting bores : 2
Thickness [mm] : 80
Outer Diameter [mm] : 315
Bolt Hole Circle Ø [mm] : 140
Surface : Coated
Brake Disc Type : internally vented
Fitting Position : Rear Axle
Minimum thickness [mm] : 16
Centering Diameter [mm] : 111
  • Vendor BLUE PRINT
  • SKU ADN14378
  • Barcode 5050063143782
  • NISSAN : 43206-VB000 43206-05J03 43206-05J04
  • APEC : DSK341
  • BORG & BECK : BBD4199
  • BOSCH : 0 986 479 385
  • DELPHI : BG3117
  • FEBI BILSTEIN : 108519
  • HELLA : 8DD 355 110-831
  • MEYLE : 36-15 523 0039
  • MINTEX : MDC1298
  • National : NBD826
  • SKF : VKBD 90587 V2
  • TEXTAR : 92129900
  • TRW : DF4814
