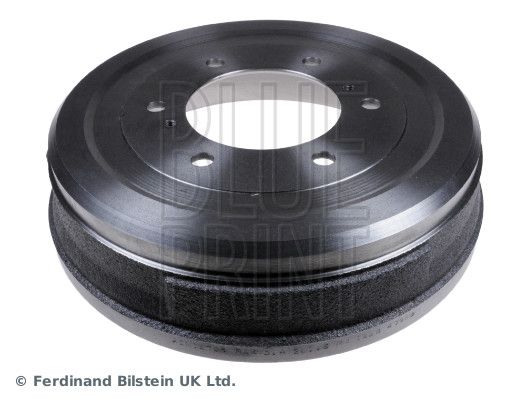

Blue Print ADN14709 Brake Drum - 1

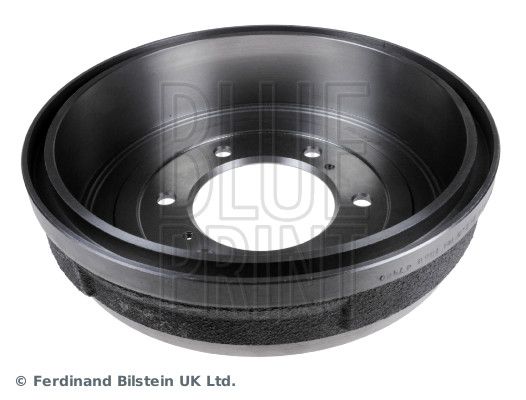

Blue Print ADN14709 Brake Drum - 2
Blue Print ADN14709 Brake Drum - 1
Blue Print ADN14709 Brake Drum - 2
BLUE PRINT

Blue Print ADN14709 Brake Drum

SKU: ADN14709
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£143.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
ELGRAND (E50)
Description Cylinder Capacity Horse Power Year
3.2 D (AVE50) 3153 CCM 150 HP 10/1995 - 08/2001
3.3 (ALE50) 3275 CCM 170 HP 04/1996 - 04/2002
NAVARA Platform/Chassis (D22)
Description Cylinder Capacity Horse Power Year
2.5 Di 2488 CCM 133 HP From 02/2002
NP300 PICKUP (D22)
Description Cylinder Capacity Horse Power Year
2.5 dCi 2488 CCM 133 HP From 04/2008
PICK UP (D21)
Description Cylinder Capacity Horse Power Year
2.5 D 2494 CCM 83 HP 08/1992 - 02/1998
2.0 1952 CCM 90 HP 09/1988 - 12/1997
2.5 D 2494 CCM 75 HP 09/1987 - 02/1998
PICK UP (D22)
Description Cylinder Capacity Horse Power Year
2.5 D 2494 CCM 83 HP 02/1998 - 10/2002
2.5 Di 2488 CCM 133 HP 03/2002 - 12/2012
TERRANO   (WD21)
Description Cylinder Capacity Horse Power Year
3.0 i 4WD 2960 CCM 148 HP 01/1990 - 12/1995
URVAN Bus (E24)
Description Cylinder Capacity Horse Power Year
2.4 i 2389 CCM 101 HP 05/1989 - 09/1993
2.5 D 2494 CCM 80 HP 05/1989 - 10/1996
2.0 1952 CCM 90 HP 01/1992 - 09/1993
URVAN Van (E24)
Description Cylinder Capacity Horse Power Year
2.0 1952 CCM 87 HP 05/1987 - 05/1997
2.3 D 2289 CCM 69 HP 01/1988 - 05/1997
2.5 D 2494 CCM 80 HP 12/1988 - 05/1997
2.0 1952 CCM 90 HP 02/1987 - 07/1994

The Blue Print ADN14709 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 260 mm inner diameter, 300 mm outer diameter, rear axle fitting position, and 100.6 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Rim Hole Number : 6
Number of mounting bores : 2
Width [mm] : 64
Thickness [mm] : 75
Inner Diameter [mm] : 260
Outer Diameter [mm] : 300
Bolt Hole Circle Ø [mm] : 140
max. brake drum reboring dimension [mm] : 261.5
Fitting Position : Rear Axle
Centering Diameter [mm] : 100.6
  • Vendor BLUE PRINT
  • SKU ADN14709
  • Barcode 5050063147094
  • NISSAN : 43206-VG300 43206-VM00B 43206-08G11
  • DELPHI : BF241
  • MINTEX : MBD068
  • TEXTAR : 94021600
  • TRW : DB4141
