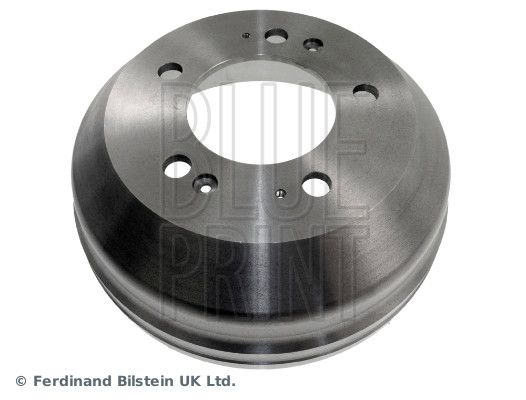

Blue Print ADN14714 Brake Drum - 1

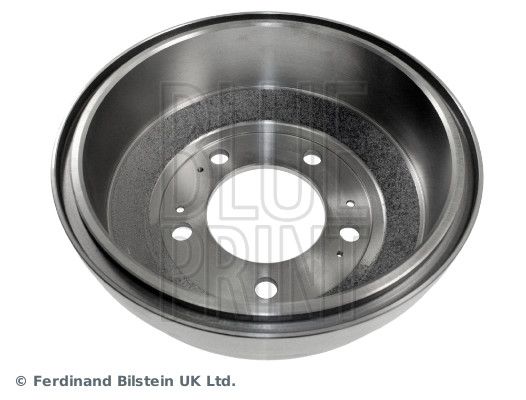

Blue Print ADN14714 Brake Drum - 2
Blue Print ADN14714 Brake Drum - 1
Blue Print ADN14714 Brake Drum - 2
BLUE PRINT

Blue Print ADN14714 Brake Drum

SKU: ADN14714
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£83.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
CABSTAR E (TL_, VL_)
Description Cylinder Capacity Horse Power Year
3.0 110.35 (TL0) 2953 CCM 110 HP 09/2000 - 04/2004
105.35, 110.35, 110.45 (TL0) 2953 CCM 106 HP 10/1998 - 10/2006
120.35, 120.45 (TL0) 2953 CCM 120 HP 10/1998 - 10/2006
125.35, 125.45 (TL0, VL0) 2953 CCM 125 HP 10/1998 - 10/2006
28.10, 32.10 2953 CCM 105 HP 01/2004 - 11/2006

The Blue Print ADN14714 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm inner diameter, 326 mm outer diameter, rear axle fitting position, and 110 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Rim Hole Number : 5
Number of mounting bores : 2
Width [mm] : 77
Thickness [mm] : 114
Inner Diameter [mm] : 280
Outer Diameter [mm] : 326
Bolt Hole Circle Ø [mm] : 160
max. brake drum reboring dimension [mm] : 282
Fitting Position : Rear Axle
Centering Diameter [mm] : 110
  • Vendor BLUE PRINT
  • SKU ADN14714
  • Barcode 5050063000757
  • NISSAN : 43206-F3901 43206-9X201
