BLUE PRINT

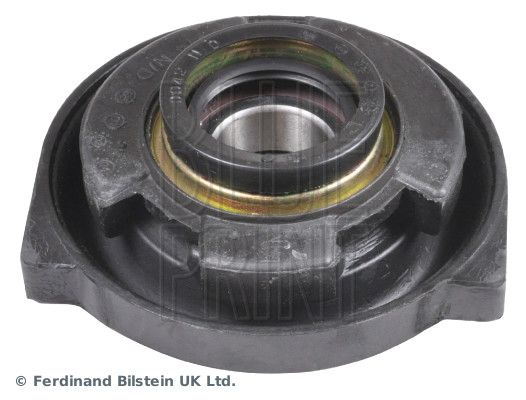

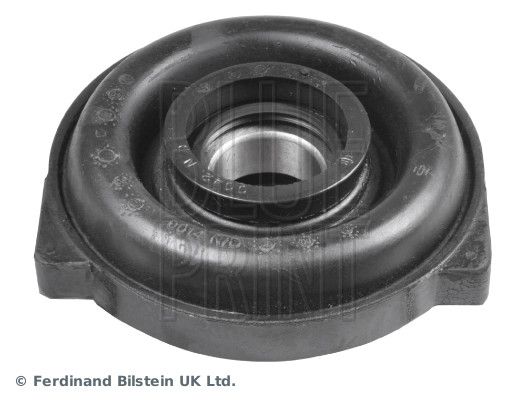

Blue Print ADN18025 Suspension, propshaft

SKU: ADN18025

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£90.52 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

PICK UP (D21)

Description	Cylinder Capacity	Horse Power	Year
2.4 4WD	2389 CCM	101 HP	03/1986 - 04/1992
2.4 i 12V 4WD	2389 CCM	126 HP	04/1992 - 02/1998
2.5 D 4WD	2494 CCM	75 HP	03/1986 - 08/1991
2.4	2389 CCM	107 HP	01/1992 - 12/1996
2.4 4x4	2389 CCM	103 HP	09/1985 - 05/1994

PICK UP (D22)

Description	Cylinder Capacity	Horse Power	Year
2.4 i 4WD	2389 CCM	120 HP	02/1998 - 11/2001
2.5 TD 4WD	2494 CCM	103 HP	05/1998 - 11/2001
2.4 i	2389 CCM	120 HP	02/1998 - 04/2005
2.5 D 4WD	2494 CCM	83 HP	02/1998 - 04/2005
2.4 i 4WD	2389 CCM	133 HP	03/2002 - 04/2005
2.5 dCi 4WD	2488 CCM	133 HP	From 03/2002

The Blue Print ADN18025 Suspension, propshaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 119 mm length, 32 mm inner diameter, Angular Ball Bearing bearing type, and with rolling bearing. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Suspension, propshaft

Length [mm] : 119

Inner Diameter [mm] : 32

Bearing Type : Angular Ball Bearing

Hole Spacing [mm] : 113

Supplementary Article/Supplementary Info 2 : with rolling bearing

Engine Code : Z24i

Construction Year to : 10.1987

Blue Print ADN18025 Suspension, propshaft
