BLUE PRINT

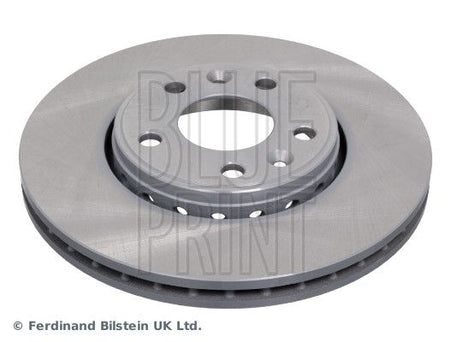

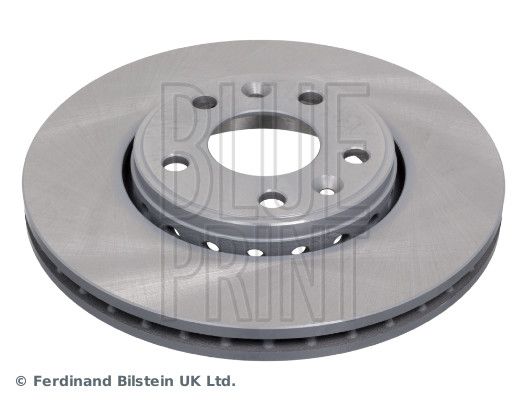

Blue Print ADR164335 Brake Disc

SKU: ADR164335

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£118.31 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

GRAND SCÉNIC III (JZ0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi (JZ09, JZ0D, JZ10, JZ14, JZ1G, JZ29, JZ2C)	1461 CCM	110 HP	04/2009 - 09/2016
1.5 dCi (JZ0A)	1461 CCM	86 HP	04/2009 - 09/2016
1.5 dCi (JZ0B, JZ07)	1461 CCM	106 HP	02/2009 - 09/2016
1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S)	1870 CCM	131 HP	02/2009 - 09/2016

LAGUNA III (BT0/1)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (BT05, BT0F, BT0W)	1998 CCM	140 HP	10/2007 - 12/2012
2.0 dCi (BT07, BT0J, BT14, BT1A, BT1S)	1995 CCM	131 HP	10/2007 - 12/2015
2.0 dCi (BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D,...	1995 CCM	150 HP	10/2007 - 12/2015
2.0 16V Hi-Flex (BT1H, BT1G, BT1K)	1997 CCM	140 HP	10/2007 - 12/2015

LAGUNA III Sport Tourer (KT0/1)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V (KT0F, KT0W)	1998 CCM	140 HP	10/2007 - 12/2015

LAGUNA Coupe (DT0/1)

Description	Cylinder Capacity	Horse Power	Year
2.0 16V Turbo	1998 CCM	170 HP	09/2008 - 12/2015
3.5 V6 (DT0P)	3498 CCM	238 HP	09/2008 - 12/2015

LATITUDE (L70_)

Description	Cylinder Capacity	Horse Power	Year
2.0 dCi 150 (L70H)	1995 CCM	150 HP	From 02/2011
2.5 V6 (L702, L703, L704, L707)	2495 CCM	177 HP	From 05/2011
2.0 16V (L70B)	1997 CCM	140 HP	From 02/2011
2.0 dCi 175 (L70Y, L734)	1995 CCM	173 HP	From 05/2011
1.5 dCi (L70R, L731)	1461 CCM	110 HP	From 07/2010

MEGANE III Grandtour (KZ0/1)

Description	Cylinder Capacity	Horse Power	Year
2.0 TCe (KZ0K, KZ1T)	1998 CCM	180 HP	11/2008 - 08/2015

MEGANE III Hatchback (BZ0/1_, B3_)

Description	Cylinder Capacity	Horse Power	Year
2.0 TCe (BZ0K)	1998 CCM	180 HP	11/2008 - 08/2015
2.0 dCi (BZ0L)	1995 CCM	160 HP	04/2009 - 08/2015

MEGANE III Coupe (DZ0/1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 TCe (DZ0K)	1998 CCM	180 HP	11/2008 - 08/2015
2.0 dCi (DZ0Y)	1995 CCM	150 HP	04/2009 - 08/2015

MEGANE CC (EZ0/1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 TCe (EZ1T)	1998 CCM	180 HP	06/2010 - 08/2015
2.0 dCi (EZ0L)	1995 CCM	160 HP	06/2010 - 08/2015

SCÉNIC III (JZ0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	110 HP	04/2009 - 09/2016
1.5 dCi	1461 CCM	86 HP	04/2009 - 09/2016
1.4 16V (JZ0F, JZ1V)	1397 CCM	131 HP	02/2009 - 09/2016
2.0 16V (JZ0G, JZ0P, JZ1E, JZ1P)	1997 CCM	140 HP	02/2009 - 09/2016
1.5 dCi	1461 CCM	106 HP	02/2009 - 09/2016
1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S)	1870 CCM	131 HP	02/2009 - 09/2016
1.2 TCe (JZ16)	1197 CCM	132 HP	01/2013 - 09/2016

The Blue Print ADR164335 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 26 mm brake disc thickness, 296 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Thickness [mm] : 26

Rim Hole Number : 5

Number of mounting bores : 2

Thickness [mm] : 44

Outer Diameter [mm] : 296

Bolt Hole Circle Ø [mm] : 114

Surface : Coated

Brake Disc Type : internally vented

Fitting Position : Front Axle

Minimum thickness [mm] : 23.4

Centering Diameter [mm] : 68

Blue Print ADR164335 Brake Disc
