Blue Print ADS78013C Anti-Roll Bar Bush

SKU: ADS78013C

Your selected vehicle

Out of stock

Out of Stock

£12.32 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU

FORESTER (SH_)

Description	Cylinder Capacity	Horse Power	Year
2.0 AWD (SHJ)	1995 CCM	150 HP	From 01/2010
2.5 AWD (SH9)	2457 CCM	171 HP	01/2009 - 09/2013
2.0 AWD (SH5)	1994 CCM	150 HP	01/2008 - 09/2013
2.0 D AWD (SHH, SHD, SHN)	1998 CCM	147 HP	09/2008 - 09/2013
2.5 AWD (SH9)	2457 CCM	230 HP	06/2008 - 09/2013
2.5 Turbo AWD (SH9)	2457 CCM	262 HP	02/2011 - 09/2013
2.0 BiFuel AWD	1994 CCM	150 HP	01/2009 - 12/2011

IMPREZA Saloon (GE, GV)

Description	Cylinder Capacity	Horse Power	Year
2.5 AWD	2457 CCM	230 HP	From 10/2008
2.5 WRX SE AWD (GVE, GEE)	2457 CCM	265 HP	01/2009 - 12/2014
2.0 i AWD (GE7)	1994 CCM	150 HP	From 01/2011
2.5 WRX STi AWD (GVF)	2457 CCM	301 HP	From 01/2011
2.5 AWD	2457 CCM	270 HP	From 07/2007
2.5 AWD (GVB)	2457 CCM	310 HP	09/2010 - 12/2015

IMPREZA Hatchback (GR, GH, G3)

Description	Cylinder Capacity	Horse Power	Year
2.0 R AWD (GH7)	1994 CCM	150 HP	01/2008 - 03/2012
2.5 AWD (GHE)	2457 CCM	230 HP	01/2008 - 09/2011
2.5 WRX STi AWD (GRF)	2457 CCM	301 HP	01/2008 - 08/2013
2.0 D AWD	1998 CCM	150 HP	01/2009 - 03/2012
2.5 STI CS400 AWD (GRF)	2457 CCM	400 HP	04/2010 - 08/2013
2.5 WRX STI AWD	2457 CCM	305 HP	06/2012 - 08/2013
2.5 AWD	2457 CCM	310 HP	09/2010 - 08/2013
2.5 WRX STI 330S AWD	2457 CCM	330 HP	05/2009 - 12/2010
2.5 WRX S AWD	2457 CCM	255 HP	02/2009 - 12/2010
2.0 AWD (GH7)	1994 CCM	140 HP	04/2007 - 08/2009

LEGACY IV (BL)

Description	Cylinder Capacity	Horse Power	Year
2.5 AWD (BL9)	2457 CCM	165 HP	09/2003 - 04/2009
3.0 R AWD (BLE, B13)	3000 CCM	245 HP	09/2003 - 08/2009
2.0 R AWD (BL5)	1994 CCM	150 HP	09/2007 - 12/2009
2.0 D AWD (BLD)	1998 CCM	150 HP	02/2008 - 12/2009
2.5 i AWD (BL9)	2457 CCM	173 HP	09/2007 - 12/2009

LEGACY IV Estate (BP)

Description	Cylinder Capacity	Horse Power	Year
2.5 AWD (BP9)	2457 CCM	165 HP	09/2003 - 04/2009
3.0 R AWD (BPE)	3000 CCM	245 HP	09/2003 - 08/2009
2.5 i AWD (BP9)	2457 CCM	173 HP	01/2008 - 12/2009
2.0 D AWD (BPD)	1998 CCM	150 HP	02/2008 - 12/2009
2.0 R AWD (BP5)	1994 CCM	150 HP	09/2007 - 12/2009

OUTBACK (BP)

Description	Cylinder Capacity	Horse Power	Year
3.0 AWD (BPE)	3000 CCM	245 HP	11/2003 - 09/2009
2.0 D AWD (BPD)	1998 CCM	150 HP	09/2008 - 09/2009
2.5 AWD (BP9)	2457 CCM	173 HP	09/2008 - 09/2009
2.5 BiFuel AWD	2457 CCM	173 HP	09/2008 - 06/2009

XV (_GP_)

Description	Cylinder Capacity	Horse Power	Year
1.6 i AWD (GP3, G33GP)	1600 CCM	114 HP	03/2012 - 12/2017
2.0 i AWD (GP7, G33GP)	1995 CCM	150 HP	03/2012 - 12/2017
2.0 D AWD (GPD)	1998 CCM	147 HP	03/2012 - 12/2017

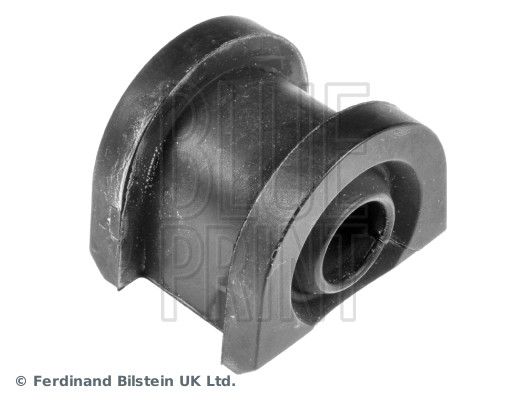

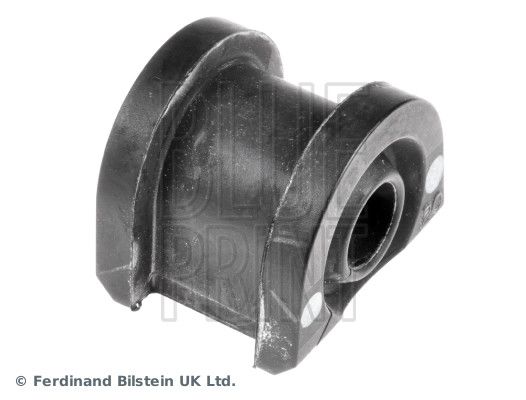

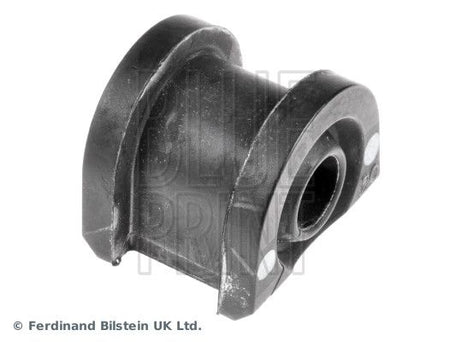

The Blue Print ADS78013C Anti-Roll Bar Bush is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 16 mm inner diameter, 48 mm outer diameter, rubber construction, and front axle right and front axle left fitting position. It is listed in the mounting, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Mounting, stabiliser bar

Length [mm] : 48

Width [mm] : 41

Thickness [mm] : 39

Inner Diameter [mm] : 16

Outer Diameter [mm] : 48

Material : Rubber

Fitting Position : Front Axle Right

Fitting Position : Front Axle Left

Blue Print ADS78013C Anti-Roll Bar Bush
