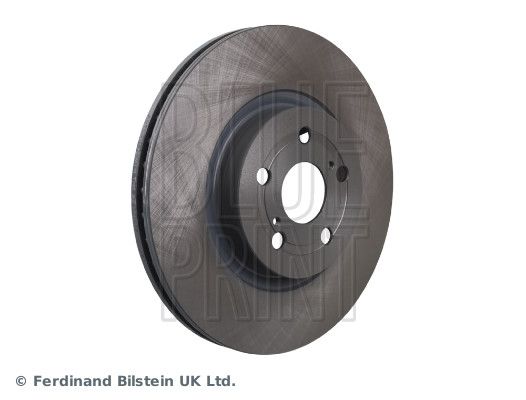

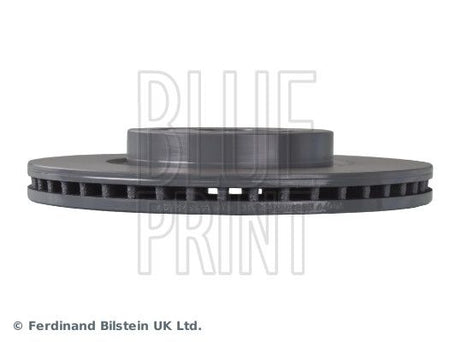

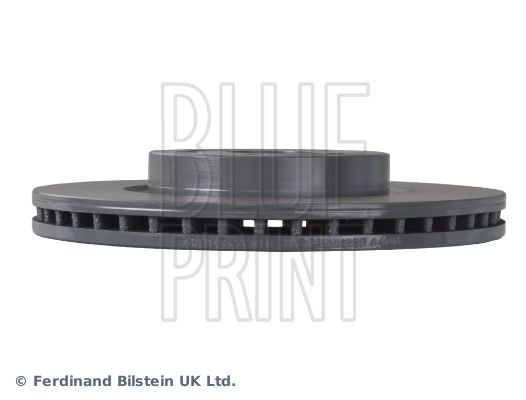

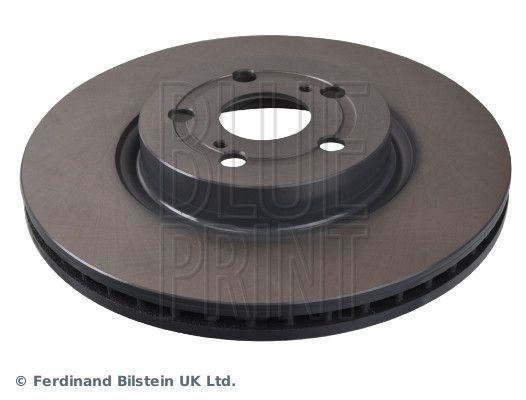

Blue Print ADT343168 Brake Disc
Your selected vehicle
Regular price
£91.51
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Blue Print ADT343168 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 26 mm brake disc thickness, 295 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Thickness [mm] :
26
Rim Hole Number :
5
Thickness [mm] :
49
Outer Diameter [mm] :
295
Bolt Hole Circle Ø [mm] :
100
Surface :
Coated
Brake Disc Type :
internally vented
Fitting Position :
Front Axle
Minimum thickness [mm] :
24
Centering Diameter [mm] :
55
- Vendor BLUE PRINT
- SKU ADT343168
- TOYOTA : 43512-YZZAB 43512-05050 43512-05070 43512-05110
- APEC : DSK2267
- APEC : SDK6083
- BORG & BECK : BBD4459
- BOSCH : 0 986 479 423
- DELPHI : BG3914
- Fahren : FBD6083
- FEBI BILSTEIN : 27237
- FTE : 9071098
- FTE : 9081088
- HELLA : 8DD 355 111-651
- MEYLE : 30-15 521 0068
- MINTEX : MDC1695C
- NAPA : NBD5273
- National : NBD1324
- SKF : VKBD 80437 V1
- TEXTAR : 92135603
- TRW : DF4445S
