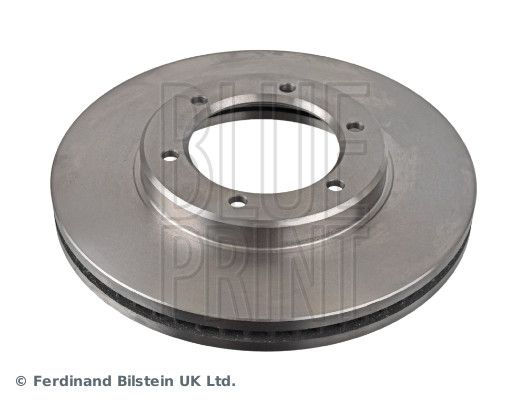

Blue Print ADT343251 Brake Disc - 1

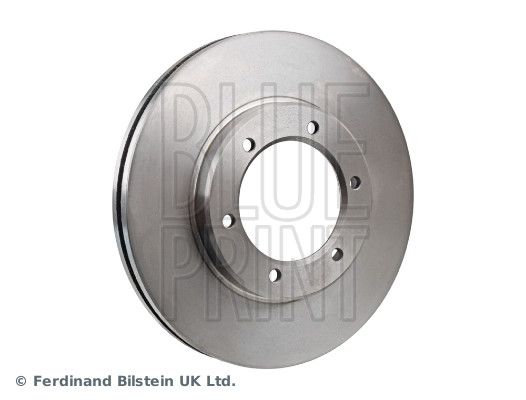

Blue Print ADT343251 Brake Disc - 2

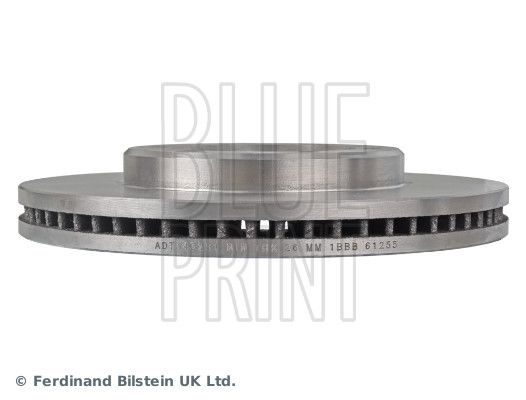

Blue Print ADT343251 Brake Disc - 3
Blue Print ADT343251 Brake Disc video
Blue Print ADT343251 Brake Disc video
Blue Print ADT343251 Brake Disc - 1
Blue Print ADT343251 Brake Disc - 2
Blue Print ADT343251 Brake Disc - 3
Blue Print ADT343251 Brake Disc video
Blue Print ADT343251 Brake Disc video
BLUE PRINT

Blue Print ADT343251 Brake Disc

SKU: ADT343251
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£122.46 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
HIACE IV Van (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (RCH103_, RCH113_, RCH103R, RCH113R) 2438 CCM 120 HP 08/1989 - 08/1995
2.4 D 4WD (LH108, LH118) 2446 CCM 75 HP 08/1989 - 07/1999
2.4 D 4WD 2446 CCM 78 HP 09/1989 - 08/1995
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (RCH18) 2438 CCM 116 HP 08/1995 - 04/1998
2.4 TD 4WD (LXH18, LXH28) 2446 CCM 90 HP 08/1995 - 08/2001
2.7 4WD (RCH19) 2694 CCM 143 HP 04/1998 - 08/2006
2.5 D-4D 4WD (KLH18) 2494 CCM 117 HP 09/2006 - 12/2012
HIACE IV Van (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (RCH18, RCH28) 2438 CCM 116 HP 08/1995 - 04/1998
2.4 TD 4WD (LXH18, LXH28) 2446 CCM 90 HP 08/1995 - 08/2001
2.7 4WD (RCH19, RCH29) 2694 CCM 144 HP 07/1998 - 06/2005
2.5 D-4D 4WD (KLH18, KLH28) 2494 CCM 102 HP 08/2001 - 08/2006
2.4 D (LXH12, LXH22) 2446 CCM 75 HP 08/1995 - 08/2001
2.5 D-4D 4WD (KLH18, KLH28) 2494 CCM 88 HP 08/2001 - 08/2004
2.5 D-4D 4WD (KLH28, KLH18) 2494 CCM 117 HP 09/2006 - 12/2012
REGIUS IV MPV (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_) 2438 CCM 120 HP 08/1989 - 07/1995
2.4 D 4WD (LH51_, LH61_, LH66_, LH71_, LH51R, LH61R,... 2446 CCM 75 HP 08/1987 - 08/1995

The Blue Print ADT343251 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 28 mm brake disc thickness, 285 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Thickness [mm] : 28
Rim Hole Number : 6
Thickness [mm] : 49
Outer Diameter [mm] : 285
Bolt Hole Circle Ø [mm] : 127
Surface : Coated
Brake Disc Type : internally vented
Fitting Position : Front Axle
Minimum thickness [mm] : 26
Centering Diameter [mm] : 100
  • Vendor BLUE PRINT
  • SKU ADT343251
  • Barcode 5050063606034
  • TOYOTA : 43512-26130 43512-26180
  • BORG & BECK : BBD5240
  • BOSCH : 0 986 479 A95
  • DELPHI : BG5036C
  • FTE : 9071384
  • FTE : 9081319
  • MEYLE : 30-15 521 0087
  • MINTEX : MDC2347
  • TEXTAR : 92238100
  • TRW : DF7226S
