BLUE PRINT

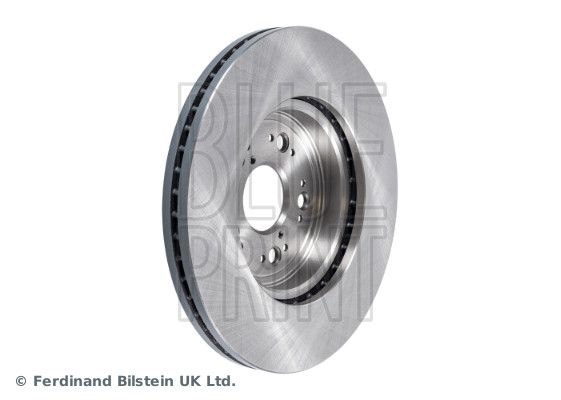

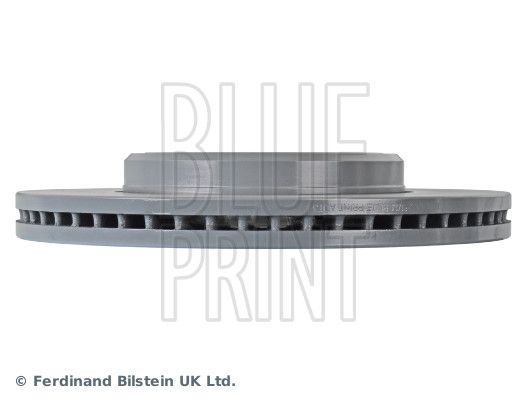

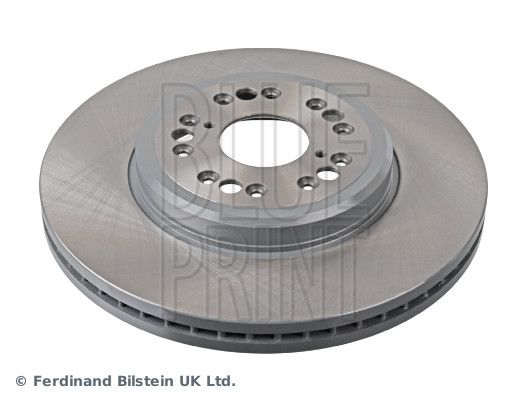

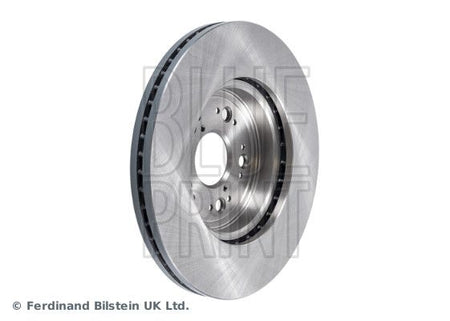

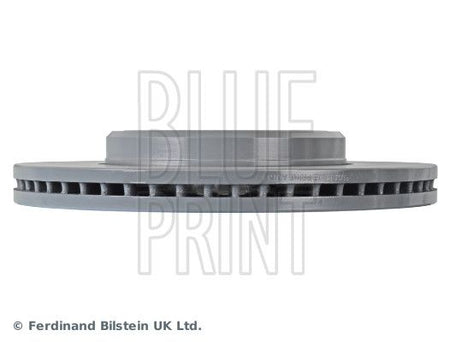

Blue Print ADT34388 Brake Disc

SKU: ADT34388

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£131.78 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

CELSIOR (UCF2_)

Description	Cylinder Capacity	Horse Power	Year
4.0 (UCF10, UCF11)	3969 CCM	264 HP	05/1993 - 09/1996
4.0 (UCF20, UCF21)	3969 CCM	280 HP	07/1997 - 08/2000

CENTURY (_G5_)

Description	Cylinder Capacity	Horse Power	Year
5.0 (GZG50)	4996 CCM	280 HP	04/1997 - 12/2016

LEXUS

LS (_F2_)

Description	Cylinder Capacity	Horse Power	Year
400 (UCF20_, UCF20R)	3969 CCM	264 HP	12/1994 - 08/1997
400 (UCF20_, UCF20R)	3969 CCM	284 HP	09/1997 - 10/2000
400 (UCF20_, UCF20R)	3969 CCM	276 HP	09/1998 - 10/2000
400 (UCF20_)	3969 CCM	294 HP	10/1997 - 12/2000

The Blue Print ADT34388 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 28 mm brake disc thickness, 315 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Thickness [mm] : 28

Rim Hole Number : 5

Number of mounting bores : 12

Thickness [mm] : 55

Outer Diameter [mm] : 315

Bolt Hole Circle Ø [mm] : 114

Surface : Coated

Brake Disc Type : internally vented

Fitting Position : Front Axle

Minimum thickness [mm] : 26

Centering Diameter [mm] : 62.2

Blue Print ADT34388 Brake Disc
