Blue Print ADT353169 Brake Hose - 1
Blue Print ADT353169 Brake Hose - 2
Blue Print ADT353169 Brake Hose - 1
Blue Print ADT353169 Brake Hose - 2
BLUE PRINT

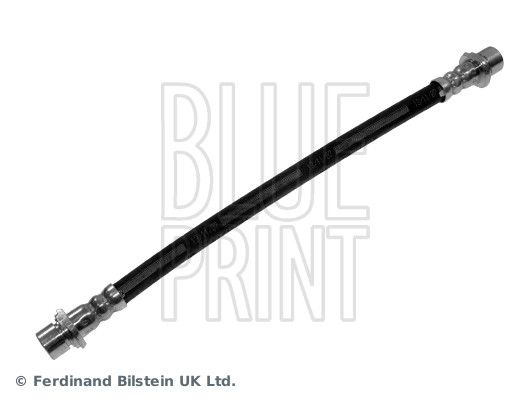

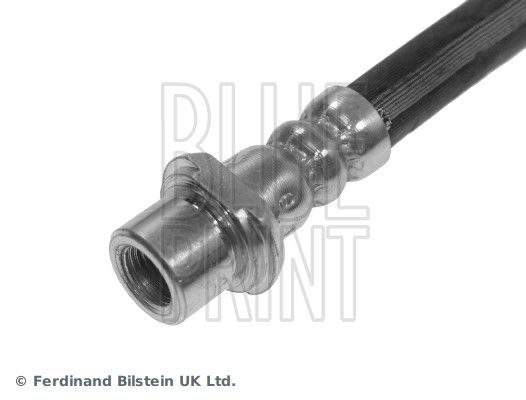

Blue Print ADT353169 Brake Hose

SKU: ADT353169
Your selected vehicle
Out of stock
Out of Stock
£14.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AVENSIS VERSO (_M2_)
Description Cylinder Capacity Horse Power Year
2.0 VVT-i (ACM20_, ACM20R) 1998 CCM 150 HP 08/2001 - 11/2009
2.0 D (CLM20_, CLM20R) 1995 CCM 116 HP 08/2001 - 08/2005
2.4 VVT-i (ACM21) 2362 CCM 156 HP 08/2001 - 08/2007
2.4 VVT-i 4WD (ACM26_, ACM26W) 2362 CCM 156 HP 11/2003 - 08/2006
2.4 VVT-i 4WD (ACM26_, ACM26W) 2362 CCM 160 HP 05/2001 - 12/2010
ESTIMA EMINA / LUCIDA (_R1_, _R2_)
Description Cylinder Capacity Horse Power Year
2.4 (TCR10G, TCR11G, TCR10W) 2438 CCM 135 HP 05/1990 - 12/1999
2.4 4x4 (TCR20G, TCR21G) 2438 CCM 135 HP 05/1990 - 12/1999
2.4 4x4 (TCR10G, TCR11G) 2438 CCM 160 HP 09/1993 - 12/1999
2.4 (TCR11_, TCR10_, TCR10R, TCR11R) 2438 CCM 160 HP 09/1993 - 12/1999
ISIS (_M1_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi (ANM10G) 1998 CCM 155 HP 07/2004 - 08/2009
NOAH/VOXY (_R6_)
Description Cylinder Capacity Horse Power Year
2.0 (AZR60G) 1998 CCM 152 HP 11/2001 - 06/2007
2.0 4WD (AZR65) 1998 CCM 152 HP 12/2001 - 06/2007
2.0 (AZR60G) 1998 CCM 155 HP 01/2004 - 06/2007
2.0 4WD (AZR65G) 1998 CCM 155 HP 01/2004 - 06/2007
PREVIA / ESTIMA I (_R1_, _R2_)
Description Cylinder Capacity Horse Power Year
2.4 (TCR11_, TCR10_, TCR10R, TCR11R) 2438 CCM 132 HP 05/1990 - 08/2000
2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R) 2438 CCM 132 HP 01/1990 - 08/2000
2.4 4WD (TCR20_) 2438 CCM 160 HP 09/1993 - 12/1997

The Blue Print ADT353169 Brake Hose is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records 272 mm length and rear axle left, inner, and rear axle right fitting position. Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Hose
Length [mm] : 272
Fitting Position : Rear Axle Left
Fitting Position : inner
Fitting Position : Rear Axle Right
  • Vendor BLUE PRINT
  • SKU ADT353169
  • Barcode 505006335316709
  • TOYOTA : 90947-02C80 90947-02618 90947-02720
  • BORG & BECK : BBH7259
  • BREMBO : T 83 073
  • DELPHI : LH6524
  • TRW : PHA555
