BLUE PRINT

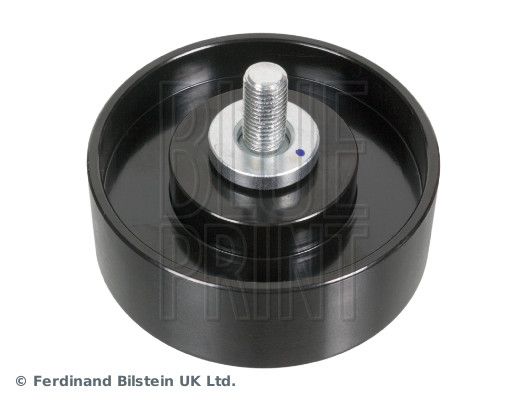

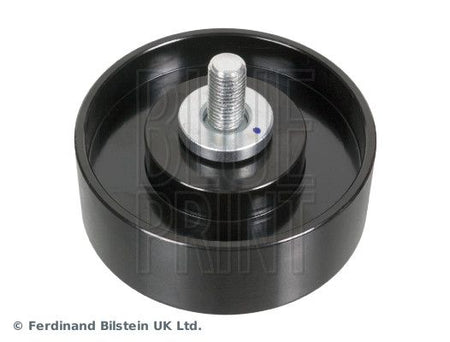

Blue Print ADT39654 Deflection/Guide Pulley, V-ribbed belt

SKU: ADT39654

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£112.22 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)

Description	Cylinder Capacity	Horse Power	Year
2.5 D-4D (KUN15, KUN35)	2494 CCM	144 HP	01/2010 - 05/2015
2.5 D 4WD (KUN25)	2494 CCM	102 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R)	2494 CCM	120 HP	06/2006 - 05/2015
2.5 D-4D (KUN15_, KUN15R)	2494 CCM	120 HP	06/2006 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	171 HP	08/2005 - 09/2015
2.5 D-4D (KUN15, KUN10)	2494 CCM	102 HP	03/2005 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	163 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25)	2494 CCM	144 HP	12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_)	2494 CCM	128 HP	11/2004 - 12/2005
2.5 D-4D (KUN15)	2494 CCM	88 HP	08/2005 - 10/2006

The Blue Print ADT39654 Deflection/Guide Pulley, V-ribbed belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records 29 mm width of castor bearing surface, 80 mm outer diameter, metal construction, and with screw. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Deflection/Guide Pulley, V-ribbed belt

Width of castor bearing surface [mm] : 29

Outer Diameter [mm] : 80

Material : Metal

Supplementary Article/Supplementary Info 2 : with screw

Blue Print ADT39654 Deflection/Guide Pulley, V-ribbed belt
