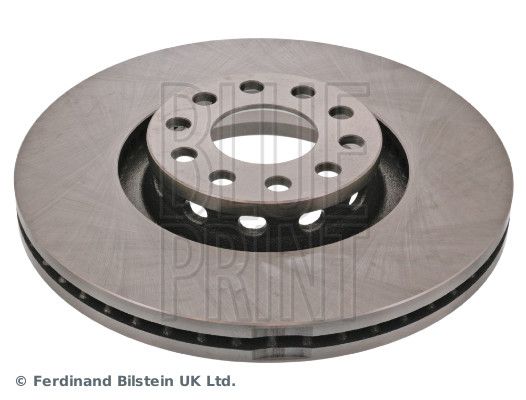

Blue Print ADV1843110 Brake Disc
Your selected vehicle
Regular price
£86.94
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Blue Print ADV1843110 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 30 mm brake disc thickness, 321 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Thickness [mm] :
30
Rim Hole Number :
10
Thickness [mm] :
52
Outer Diameter [mm] :
321
Bolt Hole Circle Ø [mm] :
112
Surface :
Coated
Brake Disc Type :
internally vented
Fitting Position :
Front Axle
Minimum thickness [mm] :
27
Centering Diameter [mm] :
68
- Vendor BLUE PRINT
- SKU ADV1843110
- VW : 4B3 615 301 A
- BORG & BECK : BBD6093S
- BOSCH : 0 986 479 690
- TRW : DF6742S
