BREMBO

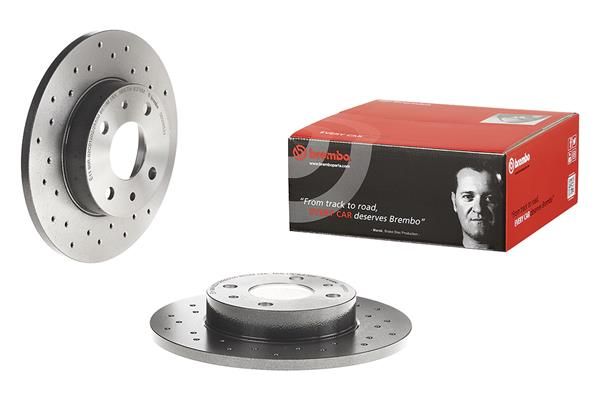

Brembo 08.5085.31 Brake Disc

SKU: 08.5085.31
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£68.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ABARTH
500 / 595 / 695
Description Cylinder Capacity Horse Power Year
1.4 (312.AXF11, 312.AXF1A) 1368 CCM 180 HP From 08/2008
1.4 (312.AXT1A) 1368 CCM 190 HP From 08/2008
1.4 (312.AXD1A) 1368 CCM 135 HP From 08/2008
1.4 (312.AXF11, 312.AXF1A, 312.AXD1A) 1368 CCM 160 HP From 08/2008
1.4 (312.AXF1A, 312.AXD1A) 1368 CCM 140 HP From 05/2010
1.4 (312.AXY11, 312.AXY1A) 1368 CCM 145 HP From 05/2016
1.4 (312.AXZ11) 1368 CCM 165 HP From 05/2016
1.4 (312.AYB11, 312.AYB1A) 1368 CCM 163 HP From 06/2016
500C / 595C / 695C
Description Cylinder Capacity Horse Power Year
1.4 (312.AXF1A, 312.AXD1A) 1368 CCM 160 HP From 05/2011
1.4 (312.AXF11, 312.AXF1A) 1368 CCM 180 HP From 06/2010
1.4 (312.AXD1A) 1368 CCM 135 HP From 05/2008
1.4 (312.AXZ1A) 1368 CCM 165 HP From 05/2016
1.4 (312.AXY1A, 312.AXY11) 1368 CCM 145 HP From 05/2016

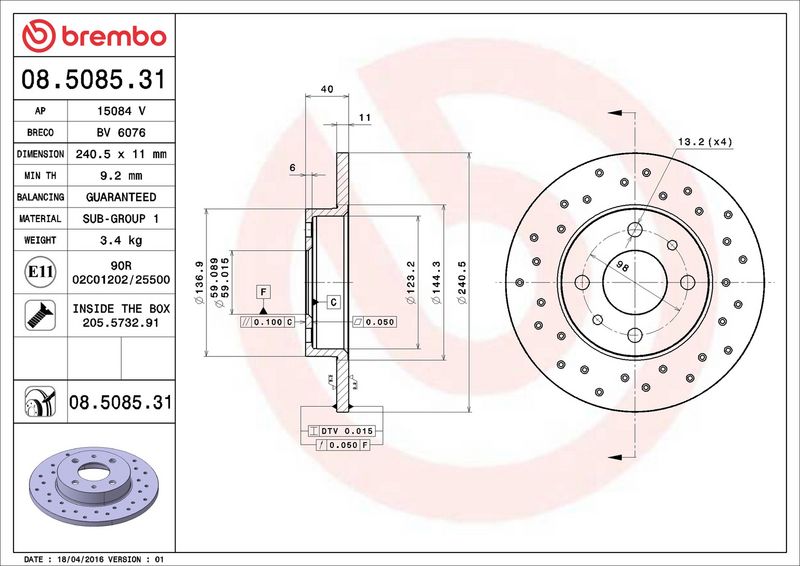

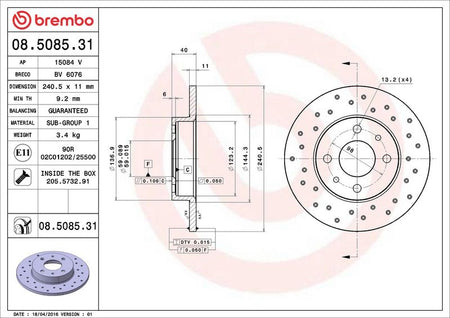

The Brembo 08.5085.31 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid and Perforated disc construction, 11 mm brake disc thickness, 4 mounting holes, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Type : Perforated
Brake Disc Thickness [mm] : 11
Number of Holes : 4
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 40
Centering Diameter [mm] : 59
Outer Diameter [mm] : 240
Surface : Coated
Minimum thickness [mm] : 9.2
Tightening Torque [Nm] : 98
  • Vendor BREMBO
  • SKU 08.5085.31
  • Barcode 8020584215494
  • ABARTH : 51885456 5741447
  • APEC : DSK3235
  • APEC : SDK7152
  • BLUE PRINT : ADL144347
  • BORG & BECK : BBD5559
  • BOSCH : 0 986 478 342
  • DELPHI : BG4936C
  • Fahren : FBD7152
  • FEBI BILSTEIN : 107724
  • HELLA : 8DD 355 103-151
  • HELLA : 8DD 355 134-891
  • MINTEX : MDC3163C
  • MINTEX : MDC592
  • MINTEX : MDC592C
  • NAPA : NBD5846
  • National : NBD2059
  • TEXTAR : 92061100
  • TEXTAR : 92061103
  • TEXTAR : 92316003
