BREMBO

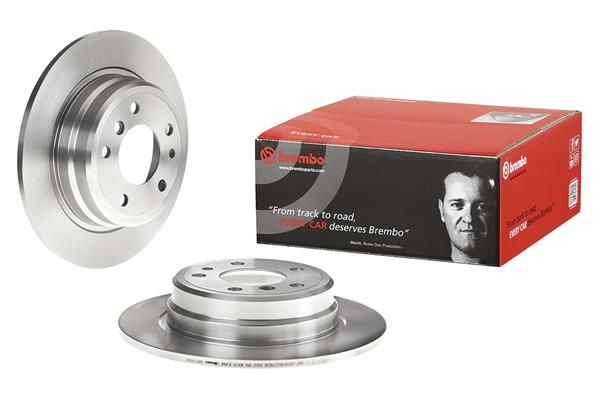

Brembo 08.5174.34 Brake Disc

SKU: 08.5174.34
Your selected vehicle
Out of stock
Out of Stock
£58.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (E34)
Description Cylinder Capacity Horse Power Year
520 i 1990 CCM 129 HP 06/1987 - 09/1990
520 i 24V 1990 CCM 150 HP 04/1990 - 08/1995
524 td 2443 CCM 115 HP 03/1988 - 08/1991
525 i 2494 CCM 170 HP 02/1988 - 08/1990
525 i 24V 2494 CCM 192 HP 03/1990 - 08/1995
525 tds 2497 CCM 143 HP 09/1991 - 08/1995
530 i 2986 CCM 188 HP 01/1988 - 04/1990
530 i V8 2997 CCM 218 HP 09/1992 - 12/1995
535 i 3430 CCM 211 HP 11/1987 - 02/1993
518 i 1796 CCM 115 HP 05/1994 - 08/1995
518 i 1796 CCM 113 HP 09/1989 - 04/1994
5 Touring (E34)
Description Cylinder Capacity Horse Power Year
520 i 1990 CCM 150 HP 07/1991 - 07/1996
525 i 2494 CCM 192 HP 07/1991 - 07/1996
525 tds 2497 CCM 143 HP 12/1991 - 07/1996
530 i 2997 CCM 218 HP 09/1992 - 07/1996
518 g 1796 CCM 101 HP 02/1996 - 07/1996
525 td 2497 CCM 115 HP 03/1993 - 07/1996
518 i 1796 CCM 113 HP 04/1993 - 04/1994
518 i 1796 CCM 115 HP 05/1994 - 07/1996

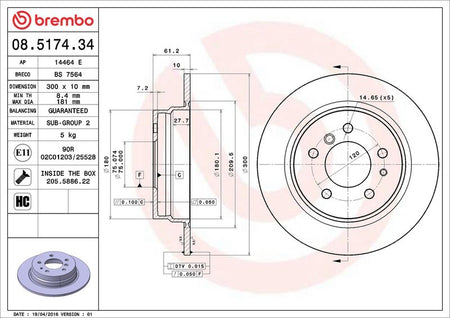

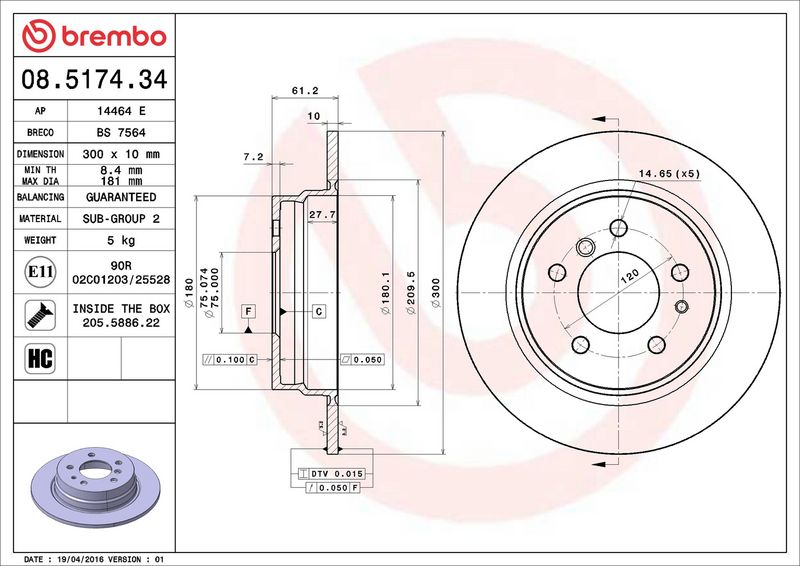

The Brembo 08.5174.34 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 10 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 10
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 61
Centering Diameter [mm] : 75
Outer Diameter [mm] : 300
Machining : High-carbon
Minimum thickness [mm] : 8.4
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 08.5174.34
  • Barcode 8020584013229
  • BMW : 34211156668 34211162305 34216756537
  • BLUE PRINT : ADB114389
  • BORG & BECK : BBD4895
  • BOSCH : 0 986 478 321
  • DELPHI : BG2431
  • FEBI BILSTEIN : 04176
  • FTE : 9072177
  • HELLA : 8DD 355 101-731
  • MEYLE : 315 523 3004
  • MINTEX : MDC483
  • National : NBD323
  • SKF : VKBD 90573 S2
  • TEXTAR : 92042303
  • TRW : DF2557
  • VALEO : 186125
  • VALEO : 673451
