BREMBO

Brembo 08.5177.10 Brake Disc

SKU: 08.5177.10
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£40.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
TRANSPORTER T3 Platform/Chassis (24_)
Description Cylinder Capacity Horse Power Year
1.6 TD 1588 CCM 70 HP 10/1984 - 07/1992
1.7 D 1715 CCM 57 HP 08/1985 - 07/1992
2.1 2109 CCM 95 HP 08/1985 - 07/1992
2.0 1970 CCM 69 HP 05/1979 - 04/1986
1.9 1913 CCM 60 HP 09/1982 - 07/1992
1.9 1913 CCM 78 HP 08/1982 - 07/1992
2.1 2109 CCM 112 HP 03/1986 - 07/1992
2.1 i 2109 CCM 92 HP 07/1989 - 07/1992
1.6 D 1588 CCM 50 HP 01/1981 - 07/1987
1.9 1913 CCM 83 HP 10/1984 - 02/1989
TRANSPORTER T3 Van (24_, 25_)
Description Cylinder Capacity Horse Power Year
2.1 2109 CCM 95 HP 08/1985 - 07/1992
1.9 1913 CCM 60 HP 10/1982 - 07/1992
2.0 1970 CCM 69 HP 05/1979 - 04/1986
1.6 1584 CCM 50 HP 05/1979 - 12/1982
1.9 1913 CCM 78 HP 10/1982 - 07/1992
1.6 TD 1588 CCM 69 HP 10/1984 - 07/1992
1.7 D 1715 CCM 57 HP 08/1984 - 07/1992
1.6 D 1588 CCM 50 HP 01/1981 - 07/1987
2.1 2109 CCM 112 HP 03/1986 - 07/1992
2.1 i 2109 CCM 92 HP 07/1989 - 07/1992
1.9 1913 CCM 90 HP 08/1983 - 02/1989
TRANSPORTER / CARAVELLE T3 Bus (25_)
Description Cylinder Capacity Horse Power Year
1.6 1584 CCM 50 HP 05/1979 - 12/1982
1.6 D 1588 CCM 50 HP 01/1981 - 07/1987
1.6 TD 1588 CCM 70 HP 08/1984 - 07/1992
1.9 1913 CCM 60 HP 08/1982 - 07/1992
1.9 1913 CCM 78 HP 08/1982 - 07/1992
1.9 1913 CCM 83 HP 01/1983 - 07/1985
2.0 1970 CCM 70 HP 05/1979 - 12/1982
2.1 2109 CCM 95 HP 08/1985 - 07/1992
2.1 2109 CCM 112 HP 08/1984 - 07/1992
1.7 D 1716 CCM 57 HP 10/1986 - 07/1992
2.1 i 2109 CCM 92 HP 07/1989 - 07/1992
2.1 Cat 2109 CCM 95 HP 06/1989 - 07/1992
1.9 1913 CCM 90 HP 08/1983 - 07/1985

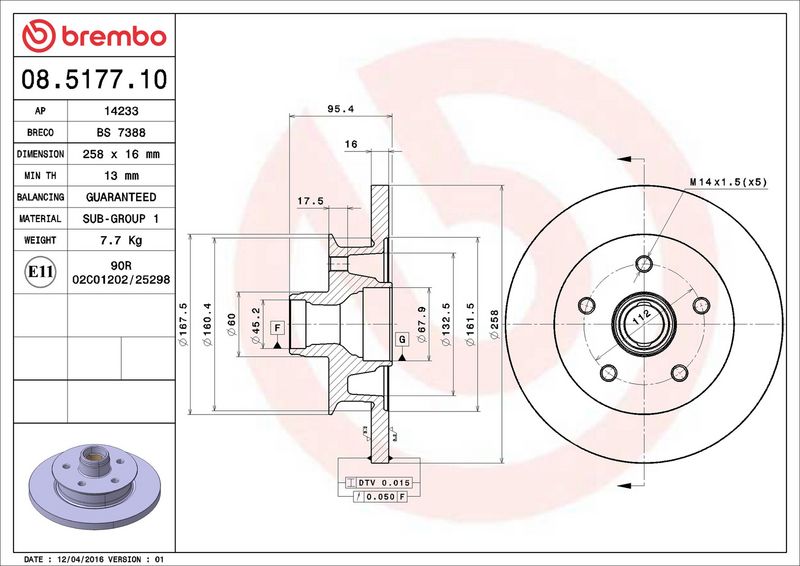

The Brembo 08.5177.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 16 mm brake disc thickness, 5 mounting holes, and 45 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 16
Number of Holes : 5
Height [mm] : 92
Centering Diameter [mm] : 45
Outer Diameter [mm] : 258
Minimum thickness [mm] : 13
  • Vendor BREMBO
  • SKU 08.5177.10
  • Barcode 8020584517710
  • VW : 251407617D 251407617K
  • BLUE PRINT : ADV184391
  • BORG & BECK : BBD5857S
  • BOSCH : 0 986 478 224
  • DELPHI : BG2468
  • FEBI BILSTEIN : 02583
  • FTE : 9071135
  • HELLA : 8DD 355 102-361
  • MEYLE : 115 521 1025
  • MINTEX : MDC910
  • MINTEX : MDC911
  • National : NBD179
  • TEXTAR : 92053000
  • TRW : DF1534
  • TRW : DF2587
  • VALEO : 186770
  • VALEO : 673562
