BREMBO

Brembo 08.5497.10 Brake Disc

SKU: 08.5497.10
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£70.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.0 1968 CCM 84 HP 07/1990 - 04/2003
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.0 1968 CCM 84 HP 07/1990 - 04/2003
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
1.8 1781 CCM 67 HP 12/1990 - 07/1992
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.0 1968 CCM 84 HP 09/1990 - 04/2003

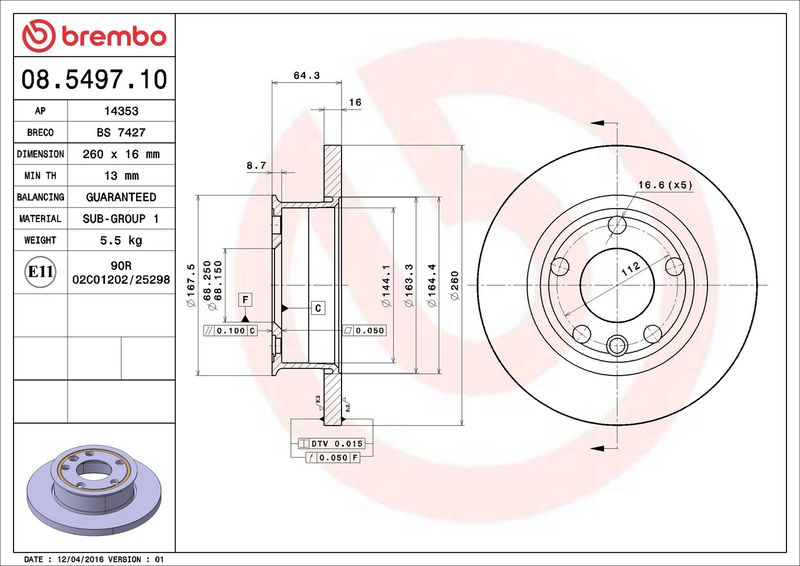

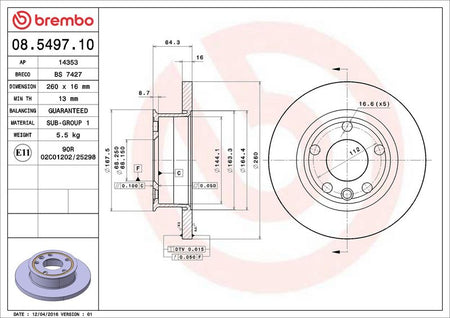

The Brembo 08.5497.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 16 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 16
Number of Holes : 5
Height [mm] : 64
Centering Diameter [mm] : 68
Outer Diameter [mm] : 260
Minimum thickness [mm] : 13
  • Vendor BREMBO
  • SKU 08.5497.10
  • Barcode 8020584549711
  • VW : 701615301 701615301C
  • BOSCH : 0 986 478 547
  • DELPHI : BG2716
  • DELPHI : BG3415
  • DELPHI : BG3417
  • DELPHI : BG3417C
  • FEBI BILSTEIN : 06547
  • FTE : 9082467
  • FTE : 9082715
  • MEYLE : 115 521 1015
  • MINTEX : MDC912
  • National : NBD306
  • TEXTAR : 92055900
  • TRW : DF1593
  • VALEO : 673060
