BREMBO

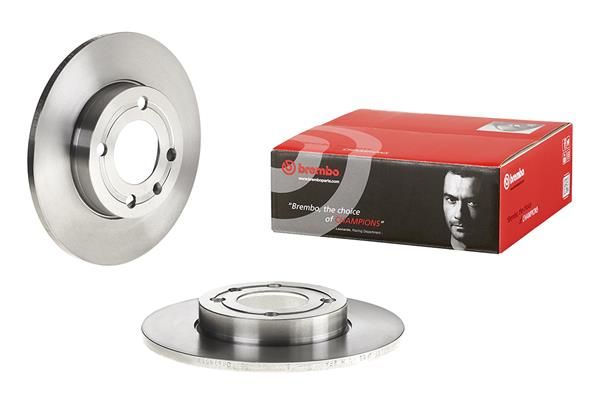

Brembo 08.6785.10 Brake Disc

SKU: 08.6785.10

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£42.77 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAN

TGE Platform/Chassis (UZ_)

Description	Cylinder Capacity	Horse Power	Year
2.0 TDI	1968 CCM	102 HP	11/2016 - 06/2024
2.0 TDI (UZB, UZC, 08V, UZH, UZI, 10V, UZO, UZP, 21V,...	1968 CCM	140 HP	From 11/2016
2.0 TDI	1968 CCM	177 HP	From 11/2016
2.0 TDI RWD	1968 CCM	122 HP	08/2017 - 12/2021
2.0 TDI RWD (UZB, UZC, UZD, 14V, 29V, UZH, UZI, 18V, 30V...	1968 CCM	140 HP	From 11/2017
2.0 TDI RWD	1968 CCM	177 HP	07/2017 - 06/2024
2.0 TDI AWD (UZB, UZC, 15V, UZH, UZI, 19V, UZO, UZP,...	1968 CCM	140 HP	From 11/2017
2.0 TDI AWD	1968 CCM	177 HP	From 11/2017
2.0 TDI RWD (UZB, UZC, UZH, UZI, UZO, UZP, 14V, 18V, 22V...	1968 CCM	163 HP	From 03/2023
2.0 TDI (UZB, UZC, UZH, UZI, UZO, UZP, UZJ, UZK, 14V,...	1968 CCM	163 HP	From 11/2022
2.0 TDI AWD (UZB, UZC, UZH, UZI, UZO, UZP, 15V, 19V)	1968 CCM	163 HP	From 11/2022

TGE Bus

Description	Cylinder Capacity	Horse Power	Year
2.0 TDI	1968 CCM	140 HP	From 02/2017
2.0 TDI AWD	1968 CCM	177 HP	From 02/2017

TGE Van

Description	Cylinder Capacity	Horse Power	Year
2.0 TDI (01V, 03V, 36V, UYB, UYC, UYD)	1968 CCM	102 HP	02/2017 - 06/2024
2.0 TDI (01V, 03V, 36V, UYB, UYC, UYD)	1968 CCM	140 HP	From 02/2017
2.0 TDI (01V, 03V, 36V, UYB, UYC, UYD)	1968 CCM	177 HP	From 02/2017
2.0 TDI AWD (02V, 04V, 37V, UYB, UYC, UYD)	1968 CCM	140 HP	From 04/2017
2.0 TDI AWD (02V, 04V, 37V, UYB, UYC, UYD)	1968 CCM	177 HP	From 03/2017
2.0 TDI RWD (11V, 12V, 33V, 34V, UYB, UYC, UYD)	1968 CCM	122 HP	08/2017 - 12/2021
2.0 TDI RWD (11V, 12V, UYB, UYC, UYD)	1968 CCM	140 HP	From 10/2017
2.0 TDI RWD (11V, 12V, 33V, 34V, UYB, UYC, UYD)	1968 CCM	177 HP	05/2017 - 06/2024
2.0 TDI RWD (UYB, UYC, UYD, 11V, 12V, 33V)	1968 CCM	163 HP	From 03/2023
2.0 TDI (UYB, UYC, UYD, 01V, 09V, 03V, 10V)	1968 CCM	163 HP	From 11/2022
2.0 TDI AWD (UYB, UYC, UYD, 02V, 04V)	1968 CCM	163 HP	From 11/2022

SEAT

AROSA (6H1)

Description	Cylinder Capacity	Horse Power	Year
1.0	999 CCM	50 HP	05/1997 - 06/2004
1.7 SDI	1716 CCM	60 HP	08/1997 - 06/2004
1.0	997 CCM	50 HP	10/1998 - 01/2001

POLO Hatchback Van (6N1)

Description	Cylinder Capacity	Horse Power	Year
1.0	1043 CCM	45 HP	10/1994 - 12/1999

POLO III (6N1)

Description	Cylinder Capacity	Horse Power	Year
55 1.3	1296 CCM	55 HP	10/1994 - 04/1997
75 1.6	1598 CCM	75 HP	10/1994 - 10/1999
45 1.0	1043 CCM	45 HP	10/1994 - 09/1996
64 1.9 D	1896 CCM	64 HP	10/1994 - 10/1999
64 1.9 SDI	1896 CCM	64 HP	07/1996 - 10/1999

POLO (6N2)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1896 CCM	64 HP	10/1999 - 09/2001
1.9 SDI	1896 CCM	64 HP	10/1999 - 09/2001

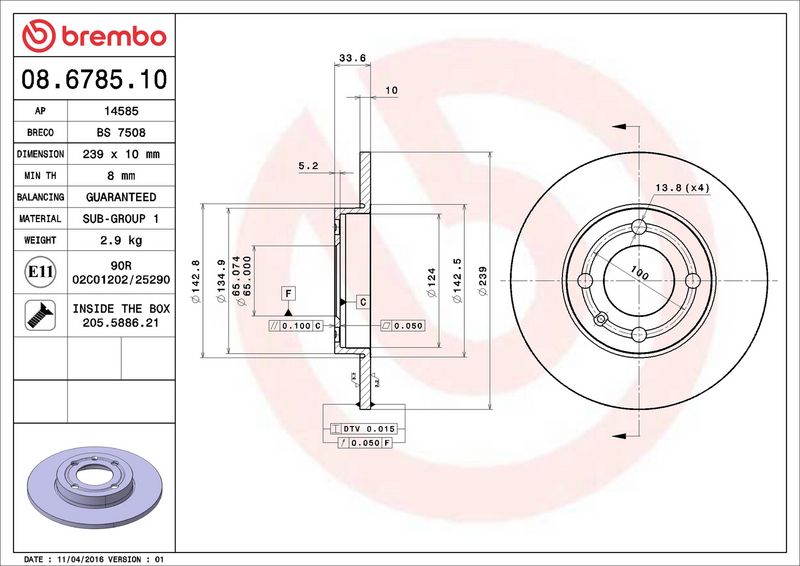

The Brembo 08.6785.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 10 mm brake disc thickness, 4 mounting holes, and 65 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Brake Disc Thickness [mm] : 10

Number of Holes : 4

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 34

Centering Diameter [mm] : 65

Outer Diameter [mm] : 239

Minimum thickness [mm] : 8

Tightening Torque [Nm] : 110

BLUE PRINT : ADV184349
BOSCH : 0 986 478 620
DELPHI : BG2911
FEBI BILSTEIN : 18841
FTE : 9072277
FTE : 9082193
HELLA : 8DD 355 104-191
MEYLE : 115 521 0021
MINTEX : MDC1064
National : NBD756
TEXTAR : 92071903
TRW : DF2755
VALEO : 186581
VALEO : 673334

Brembo 08.6785.10 Brake Disc
