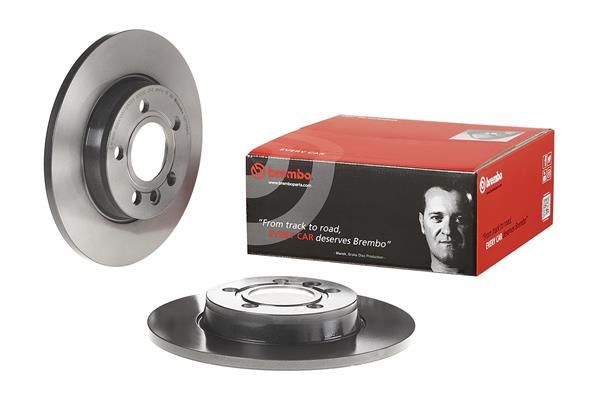

Brembo 08.7288.11 Brake Disc - 1

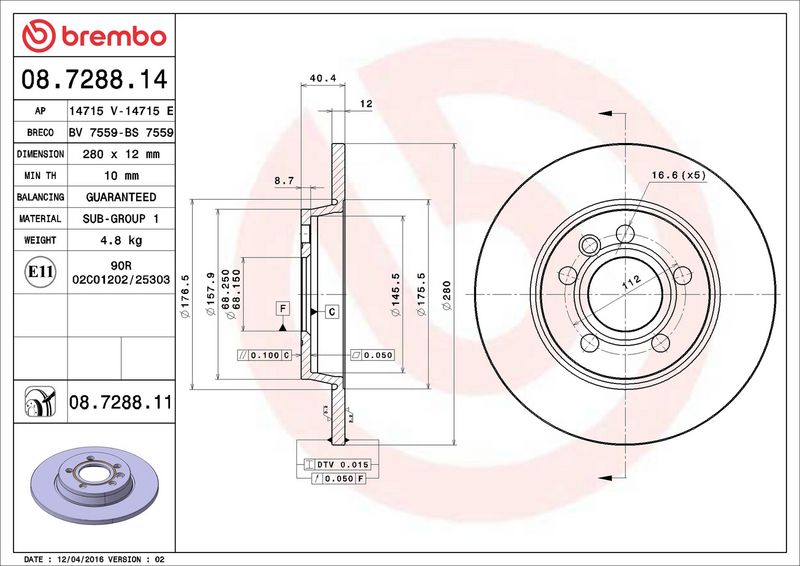

Brembo 08.7288.11 Brake Disc - 2
Brembo 08.7288.11 Brake Disc - 1
Brembo 08.7288.11 Brake Disc - 2
BREMBO

Brembo 08.7288.11 Brake Disc

SKU: 08.7288.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£57.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 05/1998 - 04/2003
2.8 2792 CCM 140 HP 05/1996 - 05/2000
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 110 HP 11/1990 - 04/2003
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI 2461 CCM 88 HP 12/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 09/2000 - 04/2003
2.8 VR6 2792 CCM 204 HP 06/2000 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.0 1968 CCM 84 HP 09/1990 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 07/1996 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.8 VR 6 2792 CCM 140 HP 11/1995 - 04/2000
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 05/1998 - 04/2003

The Brembo 08.7288.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 12 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 12
Number of Holes : 5
Height [mm] : 40
Centering Diameter [mm] : 68
Outer Diameter [mm] : 280
Surface : Coated
Minimum thickness [mm] : 10
  • Vendor BREMBO
  • SKU 08.7288.11
  • Barcode 8020584210475
  • VW : 701615601 701615601A 7D0615601 7D0615601B
  • BLUE PRINT : ADV184364
  • BORG & BECK : BBD4214
  • BOSCH : 0 986 478 863
  • BOSCH : 0 986 478 871
  • BOSCH : 0 986 479 R91
  • BOSCH : 0 986 479 S17
  • DELPHI : BG3416
  • DELPHI : BG3416C
  • DELPHI : BG3616
  • FEBI BILSTEIN : 18490
  • FTE : 9072554
  • HELLA : 8DD 355 105-611
  • MEYLE : 115 523 0017
  • MEYLE : 115 523 0017/PD
  • MINTEX : MDC1525
  • SKF : VKBD 90503 S2
  • TEXTAR : 92083903
  • TRW : DF4047
  • VALEO : 197819
  • VALEO : 672906
