BREMBO

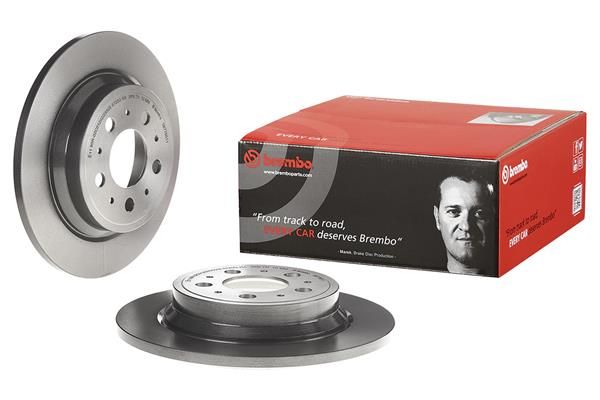

Brembo 08.7765.11 Brake Disc

SKU: 08.7765.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£70.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
S60 I (384)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 07/2000 - 04/2010
2.4 2435 CCM 170 HP 11/2000 - 04/2010
2.4 T 2435 CCM 200 HP 07/2000 - 04/2010
T5 2319 CCM 250 HP 07/2000 - 04/2010
D5 2401 CCM 163 HP 01/2001 - 04/2010
2.4 T AWD 2435 CCM 200 HP 06/2001 - 04/2010
2.0 T 1984 CCM 180 HP 07/2000 - 04/2010
2.4 Bifuel (CNG) 2435 CCM 140 HP 07/2001 - 04/2010
R 2,5 T AWD 2521 CCM 300 HP 01/2003 - 04/2010
2.4 D 2401 CCM 130 HP 05/2001 - 04/2010
2.5 T 2521 CCM 210 HP 01/2003 - 04/2010
2.5 T AWD 2521 CCM 210 HP 07/2002 - 04/2010
T5 2401 CCM 260 HP 04/2004 - 04/2010
D5 2401 CCM 185 HP 03/2005 - 04/2010
2.4 D 2400 CCM 126 HP 03/2005 - 04/2010
S80 I (184)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 204 HP 05/1998 - 07/2006
T6 2783 CCM 272 HP 05/1998 - 12/2001
2.4 2435 CCM 140 HP 01/1999 - 07/2006
2.0 T 1984 CCM 226 HP 06/1998 - 07/2006
2.5 TDI 2460 CCM 140 HP 01/1999 - 07/2006
2.0 1984 CCM 163 HP 06/1998 - 07/2006
2.4 2435 CCM 170 HP 01/1999 - 07/2006
2.9 2922 CCM 200 HP 03/1999 - 07/2006
2.0 T 1984 CCM 180 HP 12/1999 - 07/2006
2.4 T 2435 CCM 200 HP 06/2000 - 07/2006
D5 2401 CCM 163 HP 08/2001 - 07/2006
2.4 Bifuel (CNG) 2435 CCM 140 HP 09/2001 - 07/2006
3.0 2922 CCM 196 HP 06/2001 - 07/2006
T6 2922 CCM 272 HP 06/2001 - 07/2006
2.4 D 2401 CCM 131 HP 10/2001 - 07/2006
V70   (875, 876)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 126 HP 12/1995 - 03/2000
2.4 2435 CCM 170 HP 12/1995 - 05/2000
2.5 TDI 2460 CCM 140 HP 12/1995 - 12/2000
2.3 Turbo 2319 CCM 250 HP 12/1995 - 03/2000
2.0 Turbo 1984 CCM 226 HP 11/1996 - 12/2000
2.0 Turbo AWD 1984 CCM 226 HP 11/1996 - 12/2000
V70 Mk II (285)
Description Cylinder Capacity Horse Power Year
T5 2319 CCM 250 HP 11/1999 - 12/2004
2.4 T 2435 CCM 200 HP 11/1999 - 08/2003
2.5 TDI 2460 CCM 140 HP 11/1999 - 08/2007
2.4 2435 CCM 140 HP 03/2000 - 08/2007
2.4 2435 CCM 170 HP 03/2000 - 08/2007
D5 2401 CCM 163 HP 01/2001 - 12/2008
2.4 Bifuel (CNG) 2435 CCM 140 HP 09/2001 - 08/2007
2.0 T 1984 CCM 180 HP 11/1999 - 08/2007
2.4 T AWD 2435 CCM 200 HP 09/2001 - 08/2002
2.4 D 2401 CCM 131 HP 07/2001 - 08/2007
2.5 T AWD 2521 CCM 209 HP 07/2002 - 08/2007
D5 AWD 2401 CCM 163 HP 07/2002 - 08/2007
2.5 T 2521 CCM 209 HP 09/2002 - 10/2007
T5 2401 CCM 260 HP 04/2004 - 08/2007
XC70 I Cross Country (295)
Description Cylinder Capacity Horse Power Year
2.4 T XC AWD 2435 CCM 200 HP 03/2000 - 09/2002
D5 XC AWD 2401 CCM 163 HP 09/2002 - 08/2007
2.5 T XC AWD 2521 CCM 209 HP 09/2002 - 10/2007
D5 AWD 2401 CCM 185 HP 12/2005 - 08/2007

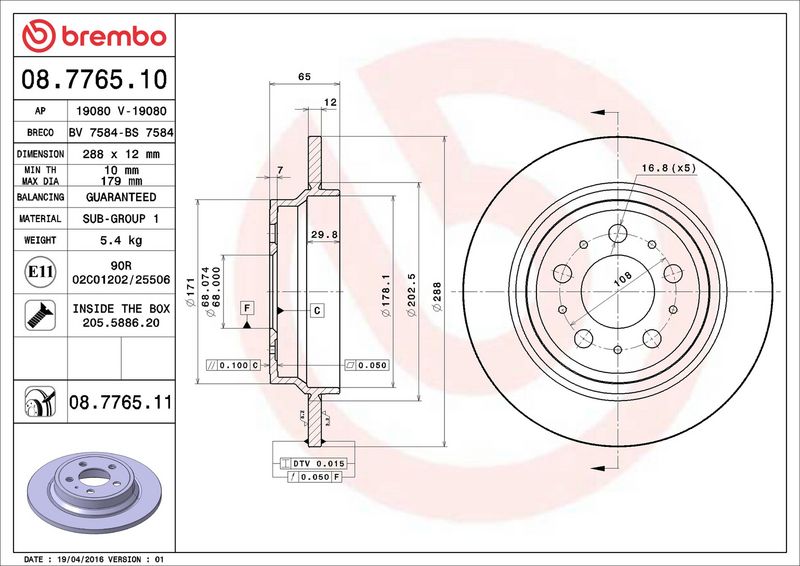

The Brembo 08.7765.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 12 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 12
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 68
Outer Diameter [mm] : 288
Surface : Coated
Minimum thickness [mm] : 10
Tightening Torque [Nm] : 140
  • Vendor BREMBO
  • SKU 08.7765.11
  • Barcode 8020584015674
  • VOLVO : 314718210 9434167 94341670 94341674
  • BLUE PRINT : ADF124333
  • BORG & BECK : BBD4216
  • BOSCH : 0 986 478 495
  • DELPHI : BG3515
  • DELPHI : BG3515C
  • FEBI BILSTEIN : 18051
  • FTE : 9072189
  • HELLA : 8DD 355 107-091
  • MEYLE : 515 523 0014
  • MEYLE : 515 523 0014/PD
  • MINTEX : MDC1434C
  • SKF : VKBD 90202 S2
  • TEXTAR : 92100703
  • TRW : DF4066
  • VALEO : 186841
