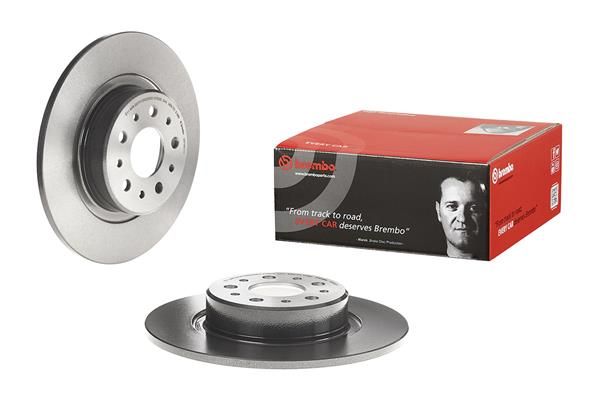

Brembo 08.7861.11 Brake Disc

SKU: 08.7861.11
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£58.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
147 (937_)
Description Cylinder Capacity Horse Power Year
3.2 GTA (937.AXL1) 3179 CCM 250 HP 02/2003 - 03/2010
156 Sportwagon (932_)
Description Cylinder Capacity Horse Power Year
1.6 16V T.SPARK. (932B4100) 1598 CCM 120 HP 05/2000 - 05/2006
1.8 16V T.SPARK (932A3) 1747 CCM 144 HP 06/2000 - 02/2005
1.8 16V T.SPARK (932B31__) 1747 CCM 140 HP 02/1997 - 05/2006
2.0 16V T.SPARK (932B21__) 1970 CCM 150 HP 10/2000 - 03/2002
2.5 V6 24V (932B1100) 2492 CCM 192 HP 02/1997 - 05/2006
1.9 JTD (932.B2B00) 1910 CCM 110 HP 10/2000 - 05/2001
2.4 JTD (932.B1B00) 2387 CCM 140 HP 10/2000 - 05/2006
1.9 JTD (932B2B, 932B2C) 1910 CCM 115 HP 05/2001 - 05/2006
3.2 GTA (932.BXB00) 3179 CCM 250 HP 03/2002 - 05/2006
2.0 JTS (932BXA) 1970 CCM 166 HP 03/2002 - 05/2006
2.4 JTD (932.BXC00) 2387 CCM 150 HP 03/2002 - 05/2006
156 (932_)
Description Cylinder Capacity Horse Power Year
1.6 16V T.SPARK (932.A4, 932.A4100) 1598 CCM 120 HP 09/1997 - 09/2005
1.8 16V T.SPARK (932.A3100) 1747 CCM 140 HP 09/1997 - 09/2005
2.0 16V T.SPARK (932A21__) 1970 CCM 150 HP 10/2000 - 03/2002
2.5 V6 24V (932A11_) 2492 CCM 192 HP 10/2000 - 09/2005
2.4 JTD (932A1B__) 2387 CCM 140 HP 10/2000 - 09/2005
1.9 JTD (932.A2B00, 932.A2C00) 1910 CCM 115 HP 05/2001 - 09/2005
3.2 GTA (932AXB) 3179 CCM 250 HP 03/2002 - 09/2005
2.0 JTS (932AXA) 1970 CCM 166 HP 03/2002 - 09/2005
2.4 JTD (932AXC) 2387 CCM 150 HP 03/2002 - 09/2005
GT (937_)
Description Cylinder Capacity Horse Power Year
2.0 JTS (937CXH11, 937CXH1A, 937CXT1A) 1970 CCM 162 HP 12/2006 - 09/2010
1.8 TS (937CXR1A) 1747 CCM 140 HP 11/2003 - 09/2010
2.0 JTS (937CXH1A, 937CXH11) 1970 CCM 165 HP 11/2003 - 09/2010
3.2 GTA (937CXP1B) 3179 CCM 240 HP 11/2003 - 09/2010
1.9 JTD (937CXN1B) 1910 CCM 150 HP 11/2003 - 09/2010
1.9 JTD (937CXN1B, 937CXZ1B) 1910 CCM 170 HP 05/2008 - 09/2010

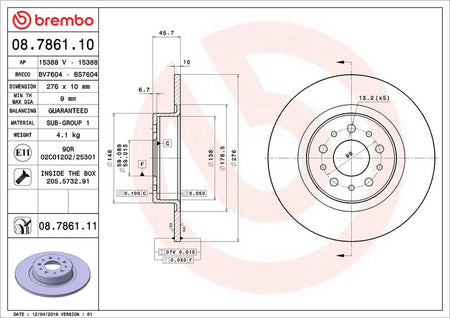

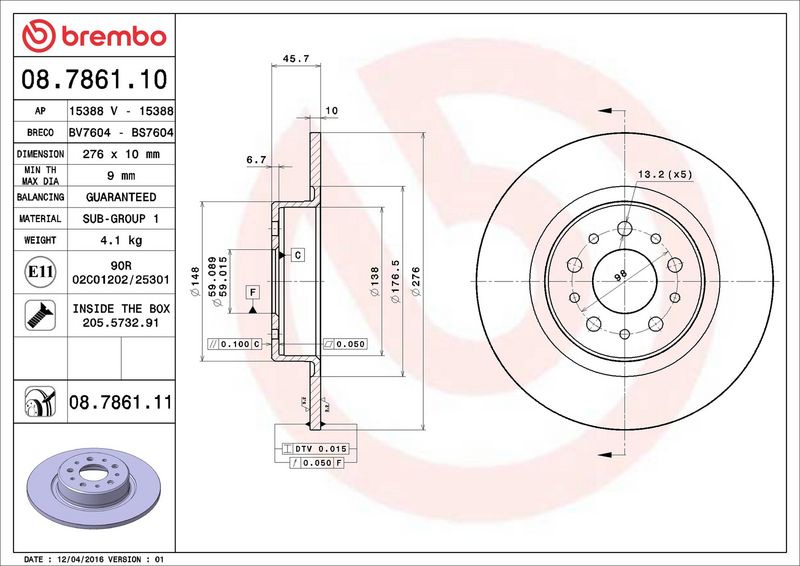

The Brembo 08.7861.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 10 mm brake disc thickness, 5 mounting holes, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 10
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 46
Centering Diameter [mm] : 59
Outer Diameter [mm] : 276
Surface : Coated
Minimum thickness [mm] : 9
Tightening Torque [Nm] : 98
  • Vendor BREMBO
  • SKU 08.7861.11
  • Barcode 8020584014073
  • ALFA ROMEO : 46469908 46542702
  • BLUE PRINT : ADL144326
  • BORG & BECK : BBD4359
  • BOSCH : 0 986 479 120
  • DELPHI : BG3857
  • FEBI BILSTEIN : 43850
  • FTE : 9072164
  • HELLA : 8DD 355 108-731
  • MEYLE : 215 523 0013
  • MINTEX : MDC1593
  • SKF : VKBD 90193 S2
  • TEXTAR : 92114703
  • TRW : DF4440
  • VALEO : 186797
