BREMBO

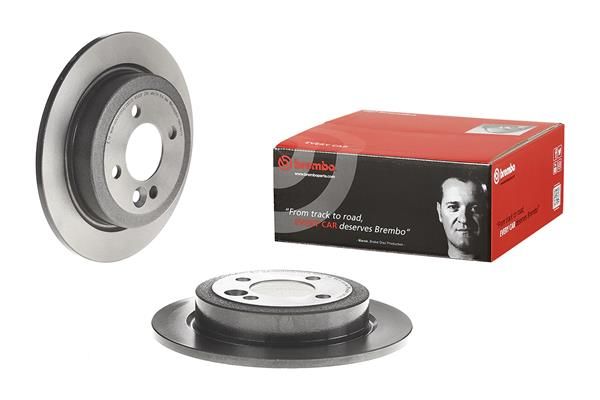

Brembo 08.9163.11 Brake Disc

SKU: 08.9163.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£49.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MINI
MINI (R50, R53)
Description Cylinder Capacity Horse Power Year
One 1598 CCM 90 HP 06/2001 - 09/2006
Cooper 1598 CCM 116 HP 06/2001 - 09/2006
Cooper S 1598 CCM 163 HP 03/2002 - 09/2006
One D 1364 CCM 75 HP 06/2003 - 09/2006
Works 1598 CCM 210 HP 11/2003 - 09/2006
Cooper S 1598 CCM 170 HP 07/2004 - 09/2006
One D 1364 CCM 88 HP 06/2003 - 09/2006
S Works 1598 CCM 203 HP 11/2003 - 06/2005
John Cooper Works 1598 CCM 218 HP 03/2006 - 09/2006
MINI Convertible (R52)
Description Cylinder Capacity Horse Power Year
One 1598 CCM 90 HP 07/2004 - 11/2007
Cooper 1598 CCM 116 HP 04/2004 - 07/2008
Cooper S 1598 CCM 170 HP 07/2004 - 07/2008
John Cooper Works 1598 CCM 210 HP 07/2004 - 11/2007
Cooper S 1598 CCM 163 HP 07/2004 - 11/2007
MINI (R56)
Description Cylinder Capacity Horse Power Year
Cooper 1598 CCM 120 HP 10/2006 - 02/2012
Cooper D 1560 CCM 109 HP 11/2006 - 09/2010

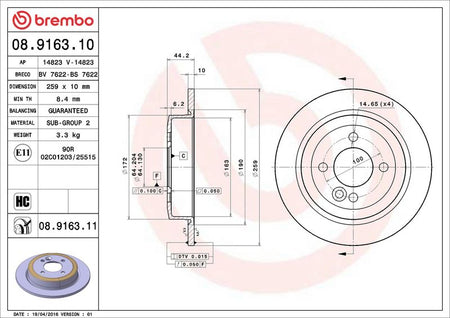

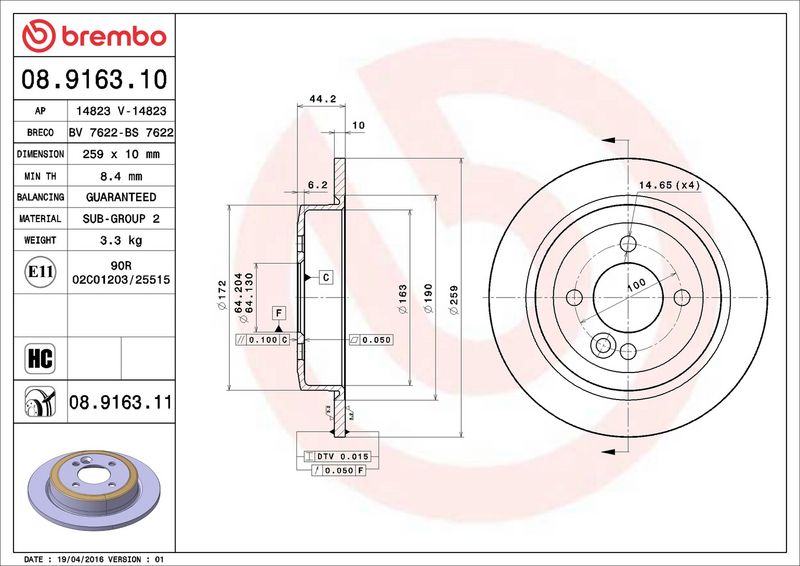

The Brembo 08.9163.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 10 mm brake disc thickness, 4 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 10
Number of Holes : 4
Height [mm] : 44
Centering Diameter [mm] : 64
Outer Diameter [mm] : 259
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 8.4
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 08.9163.11
  • Barcode 8020584017296
  • BLUE PRINT : ADG04375
  • BORG & BECK : BBD4257
  • BOSCH : 0 986 478 601
  • DELPHI : BG3662
  • DELPHI : BG3662C
  • FEBI BILSTEIN : 23117
  • FEBI BILSTEIN : 32176
  • FTE : 9072093
  • HELLA : 8DD 355 115-261
  • MEYLE : 315 523 0060
  • MEYLE : 315 523 0060/PD
  • MINTEX : MDC1499
  • MINTEX : MDC1804
  • MINTEX : MDC1804C
  • SKF : VKBD 90050 S2
  • TEXTAR : 92107603
  • TEXTAR : 92107605
  • TEXTAR : 92175003
  • TRW : DF4198
  • VALEO : 186812
  • VALEO : 672534
