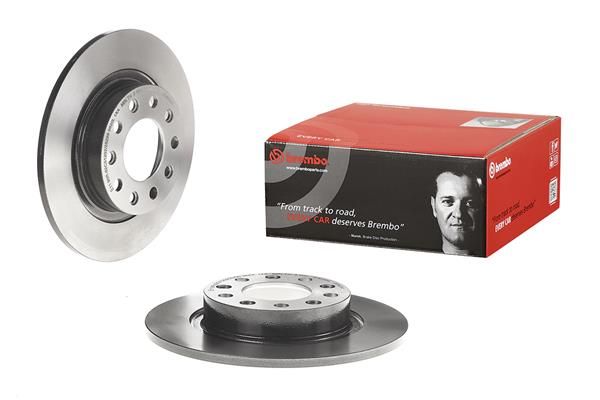

Brembo 08.9460.41 Brake Disc - 1

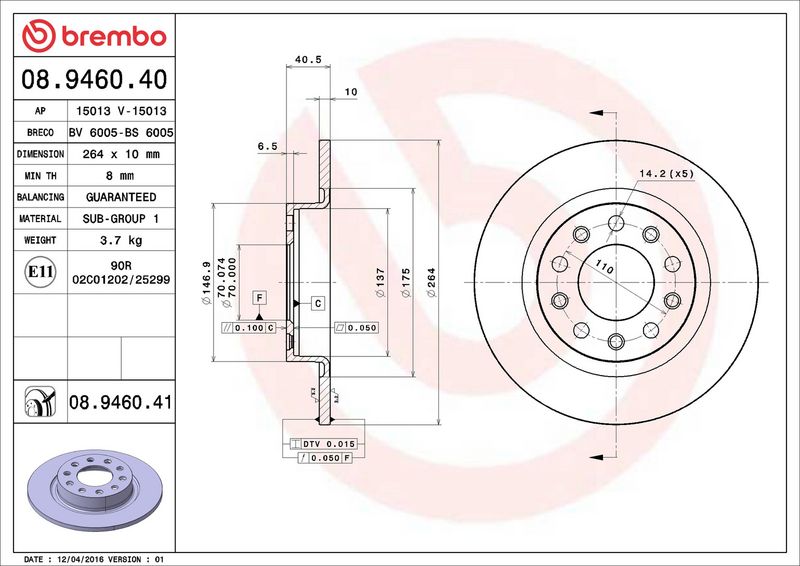

Brembo 08.9460.41 Brake Disc - 2
Brembo 08.9460.41 Brake Disc - 1

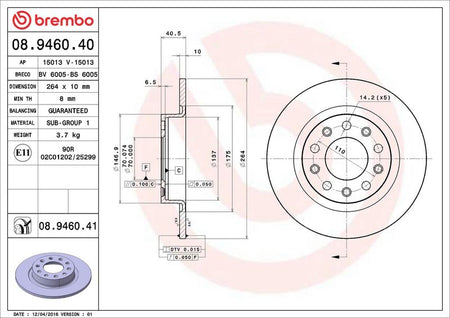

Brembo 08.9460.41 Brake Disc - 2
BREMBO

Brembo 08.9460.41 Brake Disc

SKU: 08.9460.41
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£75.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
GIULIETTA (940_)
Description Cylinder Capacity Horse Power Year
2.0 JTDM (940.FXL1A) 1956 CCM 140 HP 04/2010 - 12/2020
2.0 JTDM (940FXH1A, 940FXH11, 940FXZ11, 940FXZ1A) 1956 CCM 163 HP 04/2010 - 10/2018
1.4 TB (940FXF1A) 1368 CCM 116 HP 04/2010 - 02/2016
1.4 TB (940FXG1A) 1368 CCM 163 HP 04/2010 - 10/2018
2.0 JTDM (940FXM1A, 940FXS1A, 940FYD1A) 1956 CCM 136 HP 04/2010 - 02/2016
1.4 TB (940FXN1A, 940FXU1A) 1368 CCM 105 HP 04/2011 - 02/2017
1.4 BiFuel (940FXA1A, 940FXT1A) 1368 CCM 120 HP 12/2011 - 02/2017
2.0 JTDM (940FXQ1A, 940FYC1A) 1956 CCM 150 HP 08/2013 - 10/2018
1.4 TB (940FXA1A, 940FXT1A) 1368 CCM 120 HP 04/2010 - 12/2020
1.4 TB (940FXB1A, 940FXB11) 1368 CCM 170 HP 04/2010 - 10/2018
2.0 JTDM (940FXE1A, 940FXG11) 1956 CCM 170 HP 04/2010 - 12/2020
1.6 JTDM (940FXD1A) 1598 CCM 105 HP 04/2010 - 02/2016
2.0 JTDM (940FXV11) 1956 CCM 175 HP 11/2013 - 10/2018

The Brembo 08.9460.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 10 mm brake disc thickness, 5 mounting holes, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 10
Number of Holes : 5
Height [mm] : 41
Centering Diameter [mm] : 70
Outer Diameter [mm] : 264
Surface : Coated
Minimum thickness [mm] : 8
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 08.9460.41
  • Barcode 8020584032978
  • ALFA ROMEO : 51806283 51815313
  • DODGE : 68082121AA 68082121AB
  • FIAT (GAC) : 51912593
  • BLUE PRINT : ADL144314
  • BOSCH : 0 986 479 C41
  • DELPHI : BG4315
  • FEBI BILSTEIN : 43864
  • FTE : 9072179
  • FTE : 9082091
  • HELLA : 8DD 355 117-241
  • MEYLE : 15-15 523 0005/PD
  • MINTEX : MDC2279
  • SKF : VKBD 90359 S2
  • TEXTAR : 92230203
  • TRW : DF4477
  • TRW : DF8070
  • VALEO : 197457
  • VALEO : 672504
