Brembo 08.9580.11 Brake Disc

SKU: 08.9580.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£52.06 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
E-CELL (169.090) 68 HP 12/2010 - 06/2012
A 200 CDI (169.308, 169.008) 1991 CCM 136 HP 09/2004 - 06/2012
A 170 (169.032, 169.332) 1699 CCM 116 HP 09/2004 - 06/2012
A 150 (169.031, 169.331) 1498 CCM 95 HP 09/2004 - 06/2012
A 200 (169.033, 169.333) 2034 CCM 136 HP 09/2004 - 06/2012
A 160 CDI (169.006, 169.306) 1991 CCM 82 HP 09/2004 - 06/2012
A 180 CDI (169.007, 169.307) 1991 CCM 109 HP 09/2004 - 06/2012
A 200 CDI (169.008, 169.308) 1991 CCM 140 HP 09/2004 - 06/2012
A 200 TURBO (169.034, 169.334) 2034 CCM 193 HP 09/2005 - 06/2012
A 160 (169.031, 169.331) 1498 CCM 95 HP 04/2009 - 06/2012
A 180 (169.032, 169.332) 1699 CCM 116 HP 04/2009 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 180 CDI (245.207) 1991 CCM 109 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 140 HP 03/2005 - 11/2011
B 170 (245.232) 1699 CCM 116 HP 03/2005 - 11/2011
B 200 (245.233) 2034 CCM 136 HP 03/2005 - 11/2011
B 200 TURBO (245.234) 2034 CCM 193 HP 03/2005 - 11/2011
B 150 (245.231) 1498 CCM 95 HP 03/2005 - 11/2011
B 170 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 180 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 160 (245.231) 1498 CCM 95 HP 04/2009 - 11/2011
B 180 (245.232) 1699 CCM 116 HP 04/2009 - 11/2011
B 200 CDI (245.208) 1991 CCM 136 HP 03/2005 - 11/2011

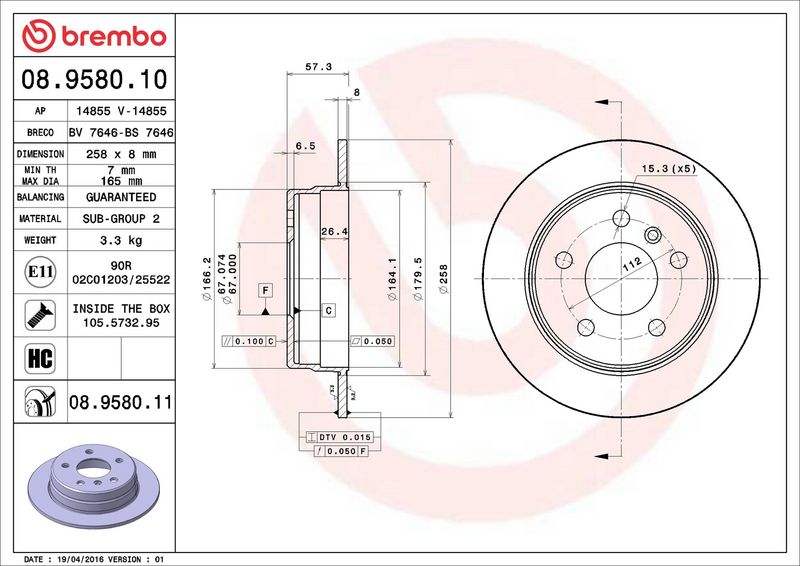

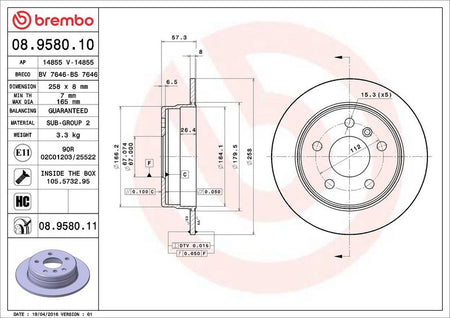

The Brembo 08.9580.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 8 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 8
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 58
Centering Diameter [mm] : 67
Outer Diameter [mm] : 258
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 7
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 08.9580.11
  • Barcode 8020584024164
  • MERCEDES-BENZ : 1694230012 1694230312 1694230912 A1694230012 A1694230312 A1694230912
  • BLUE PRINT : ADU174332
  • BORG & BECK : BBD4487
  • BOSCH : 0 986 479 235
  • DELPHI : BG3910
  • DELPHI : BG3910C
  • FEBI BILSTEIN : 24750
  • FTE : 9072095
  • HELLA : 8DD 355 111-101
  • MEYLE : 015 523 0027
  • MEYLE : 015 523 0027/PD
  • MINTEX : MDC1846
  • MINTEX : MDC1846C
  • SKF : VKBD 90083 S2
  • TEXTAR : 92132103
  • TRW : DF4453
  • VALEO : 197036
  • VALEO : 672530
