Brembo 08.A147.1X Brake Disc - 1
Brembo 08.A147.1X Brake Disc - 2
Brembo 08.A147.1X Brake Disc - 1
Brembo 08.A147.1X Brake Disc - 2
BREMBO

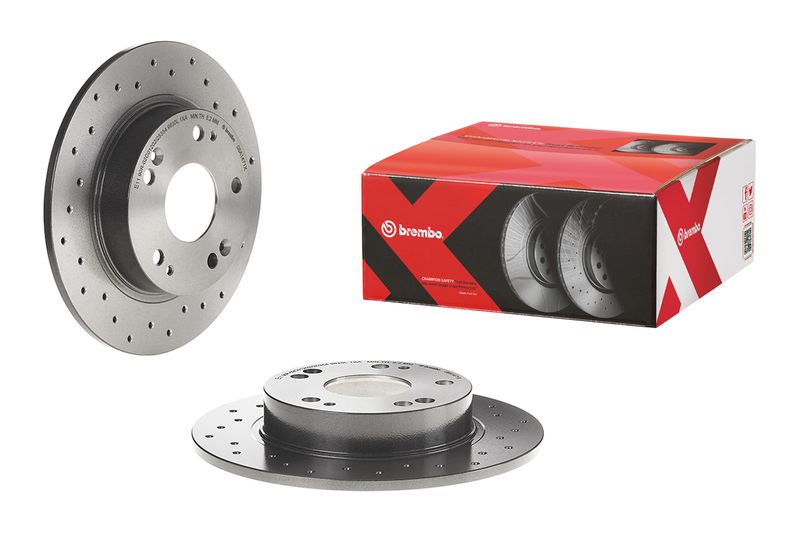

Brembo 08.A147.1X Brake Disc

SKU: 08.A147.1X
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£75.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
CIVIC VIII Saloon (FD, FA)
Description Cylinder Capacity Horse Power Year
1.3 IMA (FD3) 1339 CCM 116 HP 01/2010 - 02/2012
1.3 IMA (FA3, FD3) 1339 CCM 95 HP 01/2006 - 12/2012
1.6 (FD6) 1595 CCM 114 HP 09/2005 - 12/2012
1.8 (FD1, FD7, FA1) 1799 CCM 140 HP 09/2005 - 02/2012
1.6 1595 CCM 125 HP 09/2005 - 12/2012
CIVIC VIII Hatchback (FN, FK)
Description Cylinder Capacity Horse Power Year
1.4 (FK1) 1339 CCM 83 HP 09/2005 - 09/2008
1.8 (FN1, FK2) 1799 CCM 140 HP 09/2005 - 12/2011
2.2 CTDi (FK3) 2204 CCM 140 HP 09/2005 - 12/2011
Type R (FN2) 1998 CCM 201 HP 09/2006 - 01/2012
1.4 (FK1, FN4) 1339 CCM 100 HP 10/2008 - 12/2011
2.0 i-VTEC Type R (FN2) 1998 CCM 241 HP 03/2010 - 12/2010
CIVIC IX Saloon (FB)
Description Cylinder Capacity Horse Power Year
1.8 (FB2) 1799 CCM 141 HP 02/2012 - 12/2016
1.6 (FB7, FB1) 1597 CCM 125 HP 09/2011 - 12/2016

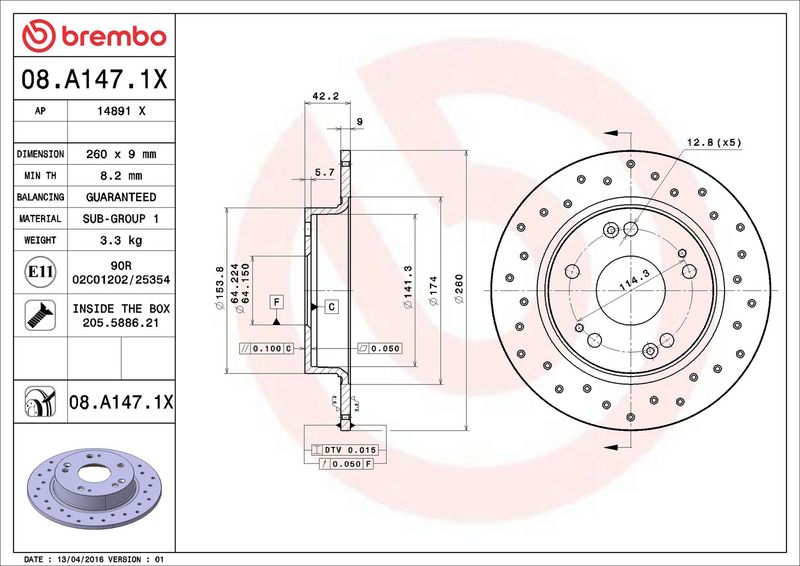

The Brembo 08.A147.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid and Perforated disc construction, 9 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Type : Perforated
Brake Disc Thickness [mm] : 9
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 42
Centering Diameter [mm] : 64
Outer Diameter [mm] : 260
Surface : Coated
Minimum thickness [mm] : 8.2
Tightening Torque [Nm] : 108
  • Vendor BREMBO
  • SKU 08.A147.1X
  • Barcode 8020584212318
  • HONDA : 42510SMGE20 42510SNAA00 42510SNAA01 42510SNEA00 42510SNLT00 42510TR3A00
  • ACURA : 42510TR3A00
  • HONDA (DONGFENG) : 42510SNAA00 42510SNVH00
  • CIIMO : 42510SNVH00
  • BLUE PRINT : ADH243100
  • BLUE PRINT : ADH24370
  • BOSCH : 0 986 479 451
  • BOSCH : 0 986 479 C63
  • DELPHI : BG4118C
  • FEBI BILSTEIN : 31415
  • FTE : 9072131
  • HELLA : 8DD 355 118-991
  • MEYLE : 31-15 523 0055/PD
  • MEYLE : 31-85 523 0009
  • MINTEX : MDC1833C
  • SKF : VKBD 90421 S2
  • TEXTAR : 92164300
  • TEXTAR : 92164303
  • TRW : DF4837
  • VALEO : 197343
  • VALEO : 672933
