BREMBO

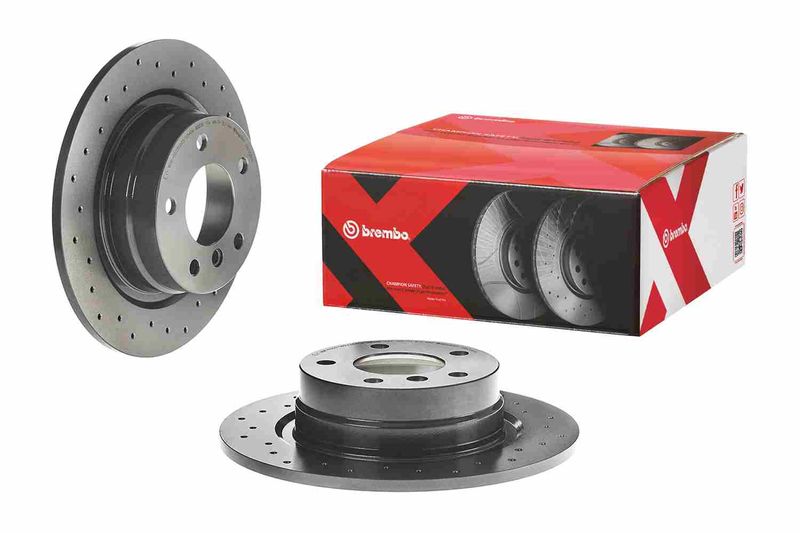

Brembo 08.A205.1X Brake Disc

SKU: 08.A205.1X
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£105.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
118 i 1995 CCM 129 HP 07/2004 - 02/2007
118 i 1995 CCM 136 HP 10/2006 - 06/2011
118 i 1995 CCM 143 HP 09/2006 - 06/2011
120 i 1995 CCM 150 HP 06/2004 - 02/2007
120 i 1995 CCM 156 HP 03/2007 - 06/2011
120 i 1995 CCM 163 HP 03/2007 - 06/2011
120 i 1995 CCM 170 HP 03/2007 - 06/2011
1 (E81)
Description Cylinder Capacity Horse Power Year
118 i 1995 CCM 143 HP 09/2006 - 12/2011
120 i 1995 CCM 170 HP 03/2007 - 09/2012
120 i 1995 CCM 156 HP 03/2007 - 12/2011
120 i 1995 CCM 163 HP 03/2007 - 12/2011
1 Coupe (E82)
Description Cylinder Capacity Horse Power Year
120 i 1995 CCM 170 HP 10/2007 - 10/2013
3 (E90)
Description Cylinder Capacity Horse Power Year
320 i 1995 CCM 150 HP 12/2004 - 08/2007
318 i 1995 CCM 129 HP 09/2005 - 08/2007
318 d 1995 CCM 122 HP 03/2005 - 08/2007

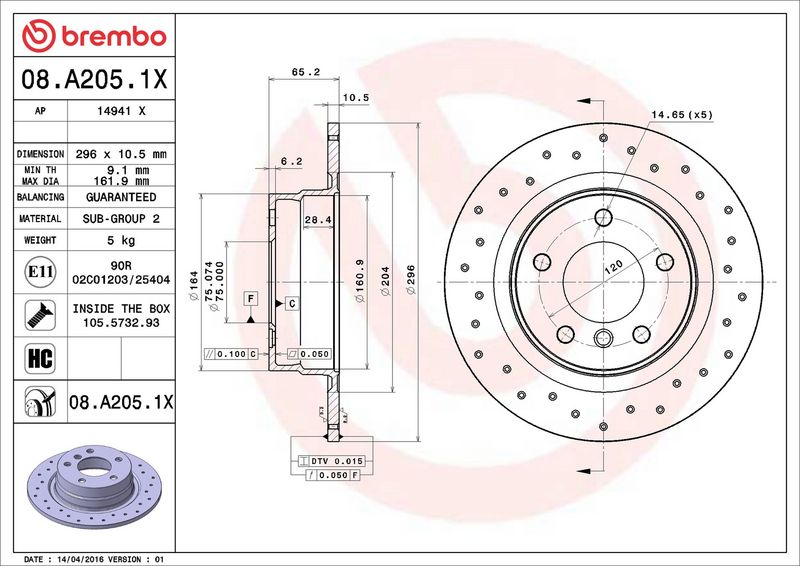

The Brembo 08.A205.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid and Perforated disc construction, 10.5 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Type : Perforated
Brake Disc Thickness [mm] : 10.5
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 75
Outer Diameter [mm] : 296
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 9.1
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 08.A205.1X
  • Barcode 8020584215319
  • BMW : 34214031275 34214031725 34216764649 34216769271 34216855002
  • BMW (BRILLIANCE) : 34214031725 34216764649 34216769271 34216855002
  • BLUE PRINT : ADB114329
  • BOSCH : 0 986 479 306
  • BOSCH : 0 986 479 C55
  • DELPHI : BG3960
  • FEBI BILSTEIN : 24482
  • FTE : 9072106
  • HELLA : 8DD 355 111-301
  • MEYLE : 315 523 0053
  • MEYLE : 315 523 0053/PD
  • MINTEX : MDC1746C
  • TEXTAR : 92133100
  • TEXTAR : 92133103
  • TRW : DF4451
  • VALEO : 197344
  • VALEO : 672569
