BREMBO

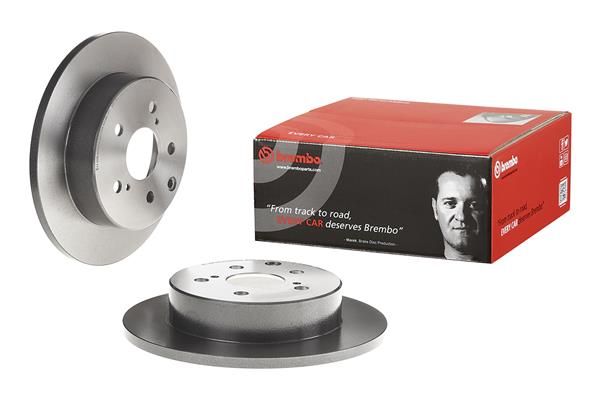

Brembo 08.A429.11 Brake Disc

SKU: 08.A429.11
Your selected vehicle
Out of stock
Out of Stock
£82.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (ACA31, ACA33) 2362 CCM 170 HP 11/2005 - 06/2013
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.4 (ACA36, ACA38) 2362 CCM 170 HP 11/2005 - 12/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 4WD (ZSA44) 1987 CCM 146 HP 12/2012 - 09/2019
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 (ZSA42) 1987 CCM 146 HP 12/2012 - 09/2019
2.5 4WD (ASA44) 2494 CCM 180 HP 12/2012 - 10/2018
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018
2.5 (ASA42) 2494 CCM 180 HP 12/2012 - 11/2018
2.5 Hybrid (AVA42_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 (ZSA42) 1987 CCM 143 HP 12/2012 - 09/2019
RAV 4 IV VAN (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi 4WD (ZSA44) 1987 CCM 152 HP 12/2012 - 11/2018

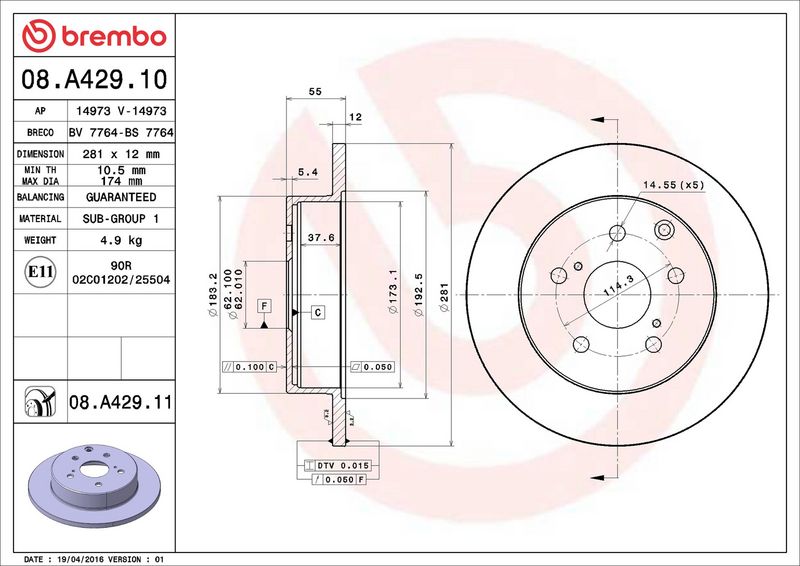

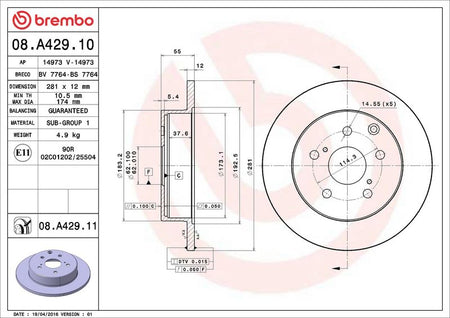

The Brembo 08.A429.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 12 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 12
Number of Holes : 5
Height [mm] : 55
Centering Diameter [mm] : 62
Outer Diameter [mm] : 281
Surface : Coated
Minimum thickness [mm] : 10.5
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 08.A429.11
  • Barcode 8020584034552
  • TOYOTA : 424310R010 4243142060
  • LEXUS : 424310R010 4243142060
  • TOYOTA (FAW) : 424310R020
  • BLUE PRINT : ADT343207
  • BORG & BECK : BBD4603
  • BOSCH : 0 986 479 419
  • BOSCH : 0 986 479 S67
  • DELPHI : BG4115
  • FEBI BILSTEIN : 29353
  • FTE : 9072288
  • HELLA : 8DD 355 118-881
  • MEYLE : 30-15 523 0102/PD
  • MINTEX : MDC1826
  • SKF : VKBD 90368 S2
  • TEXTAR : 92162103
  • TRW : DF4829
  • VALEO : 672727
