BREMBO

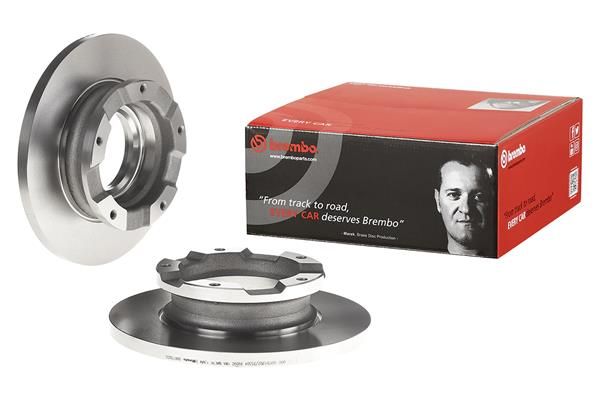

Brembo 08.A730.20 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 08.A730.20

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£85.25 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.3 16V RWD	2261 CCM	145 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	100 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	115 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	140 HP	04/2006 - 08/2014
3.2 TDCi RWD	3199 CCM	200 HP	09/2007 - 08/2014
2.4 TDCi 4x4	2402 CCM	140 HP	11/2006 - 08/2014

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	115 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	140 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.4 TDCi RWD	2402 CCM	100 HP	04/2006 - 08/2014
2.3 16V RWD	2261 CCM	145 HP	04/2006 - 08/2014
3.2 TDCi RWD	3199 CCM	200 HP	09/2007 - 08/2014
2.4 TDCi 4x4	2402 CCM	140 HP	11/2006 - 08/2014

TRANSIT TOURNEO Bus

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	131 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014
2.2	2198 CCM	125 HP	10/2011 - 08/2014

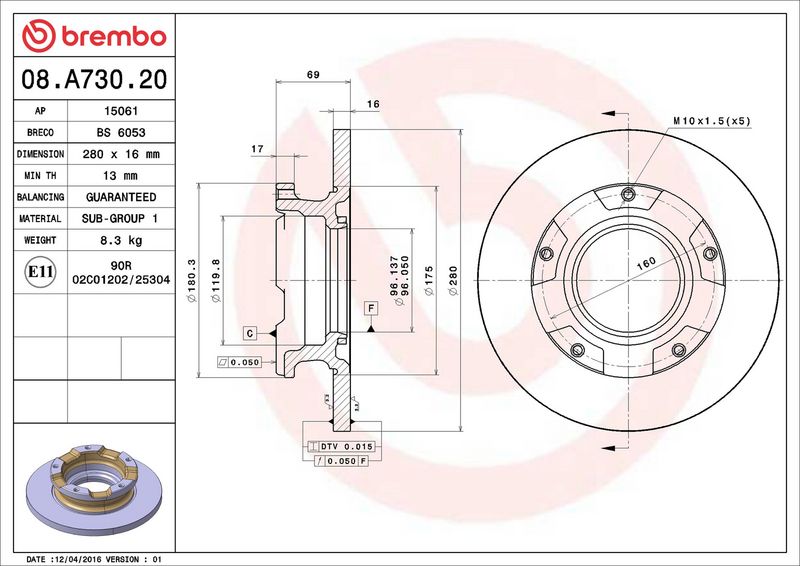

The Brembo 08.A730.20 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 16 mm brake disc thickness, 5 mounting holes, and 96 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Brake Disc Thickness [mm] : 16

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with ABS sensor ring

Height [mm] : 69

Centering Diameter [mm] : 96

Outer Diameter [mm] : 280

Minimum thickness [mm] : 13
