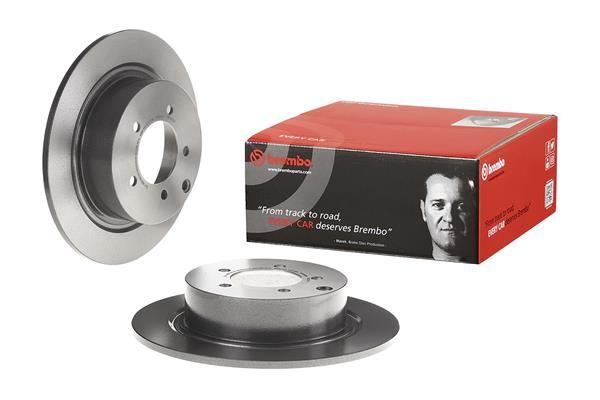

Brembo 08.C247.11 Brake Disc - 1
Brembo 08.C247.11 Brake Disc - 2
Brembo 08.C247.11 Brake Disc - 1
Brembo 08.C247.11 Brake Disc - 2
BREMBO

Brembo 08.C247.11 Brake Disc

SKU: 08.C247.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£66.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
SEBRING Convertible (JS)
Description Cylinder Capacity Horse Power Year
2.4 VVT 2360 CCM 170 HP 07/2007 - 12/2010
2.7 VVT 2736 CCM 192 HP 07/2007 - 12/2010
2.0 CRD 1968 CCM 140 HP 07/2007 - 12/2010
2.7 2736 CCM 186 HP 07/2007 - 12/2010
CITROËN
C4 AIRCROSS
Description Cylinder Capacity Horse Power Year
1.6 1590 CCM 117 HP From 04/2012
1.6 HDi 115 1560 CCM 114 HP From 04/2012
1.6 HDi 115 AWC 1560 CCM 114 HP From 05/2012
1.8 HDi 150 1798 CCM 150 HP From 04/2012
1.8 HDi 150 AWC 1798 CCM 150 HP From 04/2012
DODGE
AVENGER
Description Cylinder Capacity Horse Power Year
2.7 2736 CCM 186 HP 06/2007 - 12/2011
2.0 1998 CCM 156 HP 06/2007 - 12/2011
2.0 CRD 1968 CCM 140 HP 06/2007 - 12/2011
2.7 Flex-Fuel 2736 CCM 189 HP 06/2007 - 12/2009
2.4 2360 CCM 170 HP 06/2007 - 12/2014
2.4 2360 CCM 175 HP 06/2007 - 12/2014
3.6 3605 CCM 287 HP 01/2012 - 12/2014
CALIBER
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 150 HP 06/2006 - 10/2010
2.0 1998 CCM 156 HP From 06/2006
2.4 2359 CCM 170 HP From 10/2006
2.0 CRD 1968 CCM 140 HP From 06/2006
2.4 Turbo 2359 CCM 295 HP From 12/2007
2.2 CRD 2143 CCM 163 HP 07/2010 - 11/2011
2.4 AWD 2359 CCM 170 HP From 10/2006
2.0 CRD 1968 CCM 136 HP 06/2006 - 11/2011
2.0 CRD 1968 CCM 120 HP 06/2006 - 11/2011
LANCIA
FLAVIA Convertible (JS_)
Description Cylinder Capacity Horse Power Year
2.4 (JK, JS) 2360 CCM 170 HP 03/2012 - 12/2014
MITSUBISHI
ASX (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D (GA6W) 1798 CCM 116 HP From 06/2010
1.8 (GA3W) 1798 CCM 139 HP From 02/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 116 HP From 06/2010
2.0 MIVEC (GA2W) 1998 CCM 150 HP From 06/2010
2.0 MIVEC 4WD 1998 CCM 150 HP From 06/2010
1.6 MIVEC (GA1W) 1590 CCM 116 HP From 05/2010
1.6 MIVEC (GA1W) 1590 CCM 117 HP From 06/2010
1.8 DI-D (GA6W) 1798 CCM 150 HP From 06/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 150 HP From 06/2010
ASX Van (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D 4WD 1798 CCM 150 HP From 06/2010
OUTLANDER II (CW_W)
Description Cylinder Capacity Horse Power Year
2.0 (CW4W) 1998 CCM 147 HP 11/2006 - 11/2012
2.2 DI-D 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 140 HP 09/2010 - 11/2012
2.0 4WD 1998 CCM 147 HP 11/2006 - 11/2012
2.4 Flex 4WD 2360 CCM 170 HP 09/2007 - 11/2012
2.0 DI-D (CW8W) 1968 CCM 140 HP 02/2007 - 11/2012
2.4 4WD (CW5W) 2360 CCM 170 HP 09/2007 - 11/2012
2.4 (CW5W) 2360 CCM 170 HP 11/2006 - 11/2012
OUTLANDER II Van (CW_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (CW8W) 1968 CCM 140 HP 12/2006 - 06/2010
PEUGEOT
4008
Description Cylinder Capacity Horse Power Year
1.6 HDi AWC 1560 CCM 114 HP From 05/2012
1.8 HDi AWC 1798 CCM 150 HP From 05/2012
1.6 HDi 1560 CCM 114 HP From 05/2012
1.8 HDi 1798 CCM 150 HP From 05/2012
1.6 1590 CCM 117 HP From 05/2012
JEEP
COMPASS (MK49)
Description Cylinder Capacity Horse Power Year
2.2 CRD 4x4 2143 CCM 163 HP From 12/2010
2.0 1998 CCM 156 HP From 05/2011
2.2 CRD 2143 CCM 136 HP From 05/2011
2.2 CRD 4x4 2143 CCM 136 HP From 05/2011
PATRIOT (MK74)
Description Cylinder Capacity Horse Power Year
2.2 CRD 4x4 2143 CCM 163 HP 01/2011 - 12/2017
2.0 1998 CCM 156 HP 01/2011 - 12/2017
2.4 4x4 2360 CCM 170 HP 01/2008 - 12/2017
2.0 CRD 4x4 1968 CCM 140 HP 02/2007 - 12/2017
2.4 Eco + 4x4 2360 CCM 170 HP 07/2008 - 12/2017
2.4 2360 CCM 170 HP 06/2009 - 12/2017
2.0 4x4 1998 CCM 156 HP 02/2007 - 12/2017

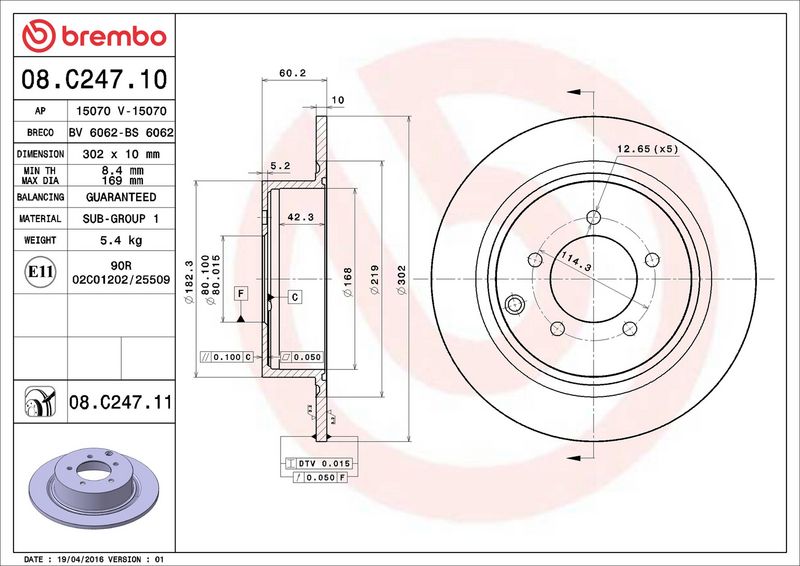

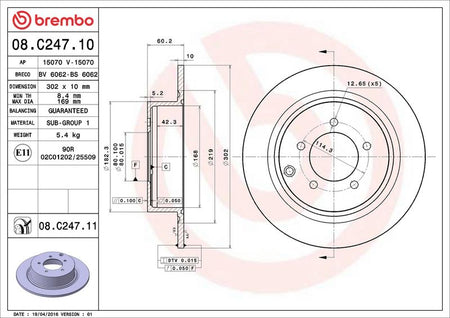

The Brembo 08.C247.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 10 mm brake disc thickness, 5 mounting holes, and 80 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 10
Number of Holes : 5
Height [mm] : 60
Centering Diameter [mm] : 80
Outer Diameter [mm] : 302
Surface : Coated
Minimum thickness [mm] : 8.4
  • Vendor BREMBO
  • SKU 08.C247.11
  • Barcode 8020584218600
  • CHRYSLER : 2AMV3999AA
  • CITROËN : 1606292080 1611667880
  • LANCIA : K04743999AA
  • MITSUBISHI : 4615A010 4615A121 4615A193
  • PEUGEOT : 1606292080 1611667880
  • JEEP : 04743999AB 2AMV3999AA
  • MITSUBISHI (GAC) : 4615A121 4615A193
  • BLUE PRINT : ADC443125
  • BLUE PRINT : ADP154333
  • BORG & BECK : BBD4820
  • BORG & BECK : BBD5255
  • BOSCH : 0 986 479 318
  • BOSCH : 0 986 479 746
  • BOSCH : 0 986 479 R07
  • DELPHI : BG4169
  • FEBI BILSTEIN : 108491
  • FEBI BILSTEIN : 108528
  • FEBI BILSTEIN : 44056
  • FTE : 9072370
  • FTE : 9082266
  • HELLA : 8DD 355 115-491
  • MEYLE : 32-15 523 0020/PD
  • MINTEX : MDC1930
  • SKF : VKBD 90589 S2
  • TEXTAR : 92177303
  • TRW : DF6177
  • VALEO : 197594
