Brembo 08.C540.11 Brake Disc - 1
Brembo 08.C540.11 Brake Disc - 2
Brembo 08.C540.11 Brake Disc - 1
Brembo 08.C540.11 Brake Disc - 2
BREMBO

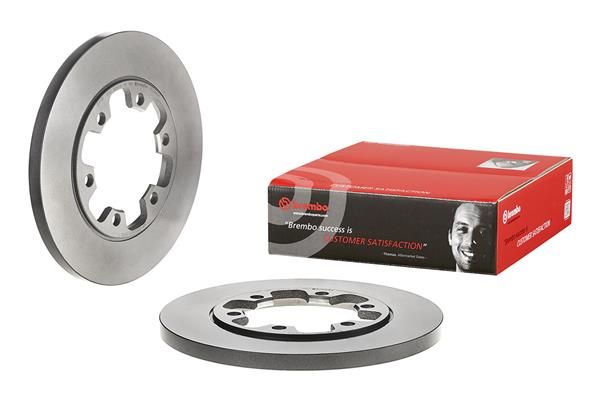

Brembo 08.C540.11 Brake Disc

SKU: 08.C540.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£78.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.2 TDCi All-wheel Drive 2198 CCM 155 HP 08/2015 - 12/2018
2.0 EcoBlue RWD 1995 CCM 130 HP From 05/2019
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2015 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue 4x4 1995 CCM 130 HP From 01/2017

The Brembo 08.C540.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 18 mm brake disc thickness, 6 mounting holes, and 123 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

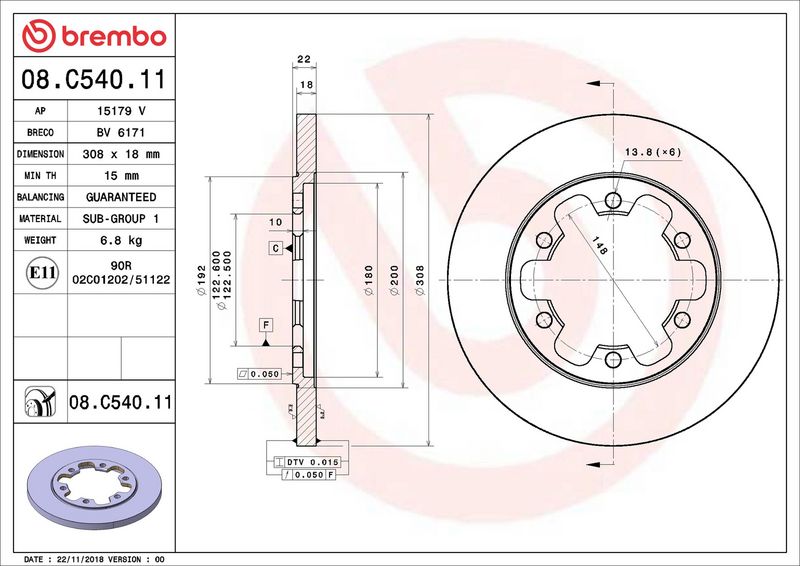

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 18
Number of Holes : 6
Height [mm] : 22
Centering Diameter [mm] : 123
Outer Diameter [mm] : 308
Surface : Coated
Minimum thickness [mm] : 15
  • Vendor BREMBO
  • SKU 08.C540.11
  • Barcode 8020584310342
  • FORD : 1815600 2226521 2527114 BK312A315BD CK4Z2C026D KK312A315BA KK312A315BB
  • BLUE PRINT : ADF124348
  • BORG & BECK : BBD5386
  • BOSCH : 0 986 479 D43
  • DELPHI : BG4680C
  • FEBI BILSTEIN : 104498
  • FTE : 9072388
  • HELLA : 8DD 355 122-831
  • MEYLE : 715 523 0030/PD
  • MINTEX : MDC2698
  • TEXTAR : 92275803
  • VALEO : 673230
