BREMBO

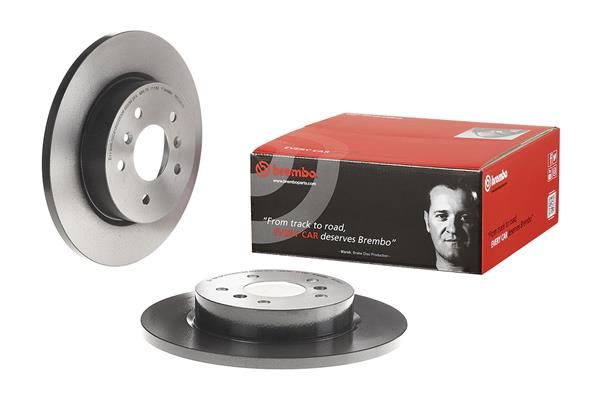

Brembo 08.C546.11 Brake Disc

SKU: 08.C546.11

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£81.23 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

QASHQAI II (J11, J11_)

Description	Cylinder Capacity	Horse Power	Year
1.2 DIG-T	1197 CCM	116 HP	From 11/2013
1.5 dCi	1461 CCM	110 HP	From 11/2013
1.6 dCi	1598 CCM	130 HP	From 11/2013
1.6 dCi ALL MODE 4x4-i	1598 CCM	130 HP	From 11/2013
2.0 (J11E)	1997 CCM	144 HP	From 06/2014
1.6 DIG-T	1618 CCM	163 HP	From 02/2014
2.0 ALL MODE 4x4-i (J11R)	1997 CCM	144 HP	From 12/2013
1.3 DIG-T	1332 CCM	140 HP	From 08/2018
1.3 DIG-T	1332 CCM	160 HP	From 08/2018
1.5 dCi	1461 CCM	116 HP	From 06/2018
1.7 dCi	1749 CCM	150 HP	From 01/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	150 HP	From 01/2019
1.3 DIG-T	1332 CCM	158 HP	From 10/2020

QASHQAI II VAN (J11_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	110 HP	From 05/2015
1.5 dCi	1461 CCM	116 HP	From 06/2018

RENAULT

CAPTUR II (HF_)

Description	Cylinder Capacity	Horse Power	Year
E-TECH 160	1598 CCM	158 HP	From 05/2020
E-TECH 145 (HFMU)	1598 CCM	143 HP	From 01/2022

KADJAR (HA_, HL_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi 110 (HLA3)	1461 CCM	110 HP	From 06/2015
1.6 dCi 130 (HLA4)	1598 CCM	130 HP	From 06/2015
1.6 dCi 130 4x4 (HLA4)	1598 CCM	130 HP	From 06/2015
1.2 TCe 130 (HLMR)	1197 CCM	130 HP	From 06/2015
1.6 TCe 165 (HLMH)	1618 CCM	163 HP	From 11/2016
1.3 TCe 140 (HLNB, HLN1)	1332 CCM	140 HP	From 08/2018
1.5 BLUE dCi 115 (HLA6)	1461 CCM	116 HP	From 08/2018
1.3 TCe 160 (HLNC)	1332 CCM	160 HP	From 08/2018
1.7 Blue dCi 150 4WD (HLA7)	1749 CCM	150 HP	From 08/2018
1.7 Blue dCi 150 (HLA7)	1749 CCM	150 HP	From 08/2018
1.3 TCe 160 (HLN2)	1332 CCM	158 HP	From 07/2021

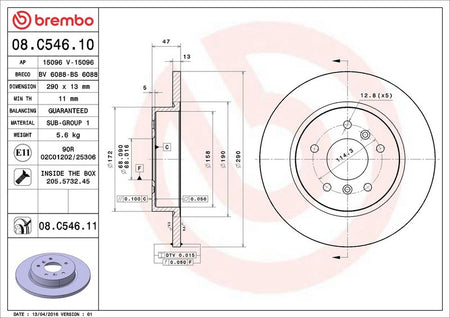

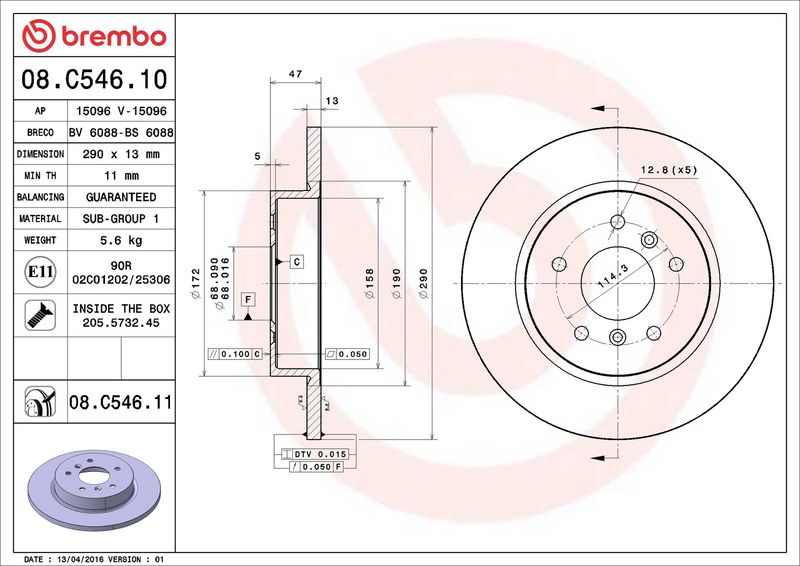

The Brembo 08.C546.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 13 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Brake Disc Thickness [mm] : 13

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 47

Centering Diameter [mm] : 68

Outer Diameter [mm] : 290

Surface : Coated

Minimum thickness [mm] : 11

BLUE PRINT : ADN143177
BORG & BECK : BBD5367
BOSCH : 0 986 479 D17
DELPHI : BG4807C
FEBI BILSTEIN : 108445
FTE : 9072841
FTE : 9082279
FTE : 9082806
HELLA : 8DD 355 122-771
MEYLE : 36-15 523 0055/PD
MINTEX : MDC2693
National : NBD1884
SKF : VKBD 90457 S2
TEXTAR : 92274003
TRW : DF6787
VALEO : 197757
VALEO : 672714

Brembo 08.C546.11 Brake Disc
