BREMBO

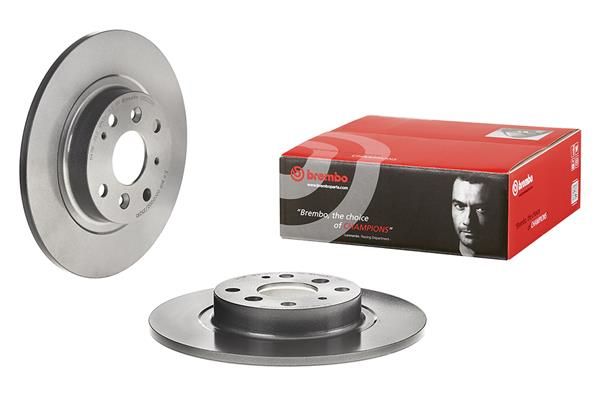

Brembo 08.D223.11 Brake Disc

SKU: 08.D223.11

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£69.88 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

2 Hatchback (DL, DJ)

Description	Cylinder Capacity	Horse Power	Year
1.5 SKYACTIV-G (DJLFS)	1496 CCM	115 HP	From 08/2014
1.5 (DJ2HA)	1496 CCM	107 HP	From 11/2014
1.5 E-SKYACTIV G	1496 CCM	116 HP	From 10/2021

MX-5 IV (ND__)

Description	Cylinder Capacity	Horse Power	Year
1.5 (ND2E, ND5R)	1496 CCM	131 HP	From 06/2015
1.5 (ND6E, ND5RC)	1496 CCM	132 HP	From 05/2018

MX-5 RF Targa (ND)

Description	Cylinder Capacity	Horse Power	Year
1.5	1496 CCM	131 HP	From 08/2017
1.5 (ND6E)	1496 CCM	132 HP	From 05/2018

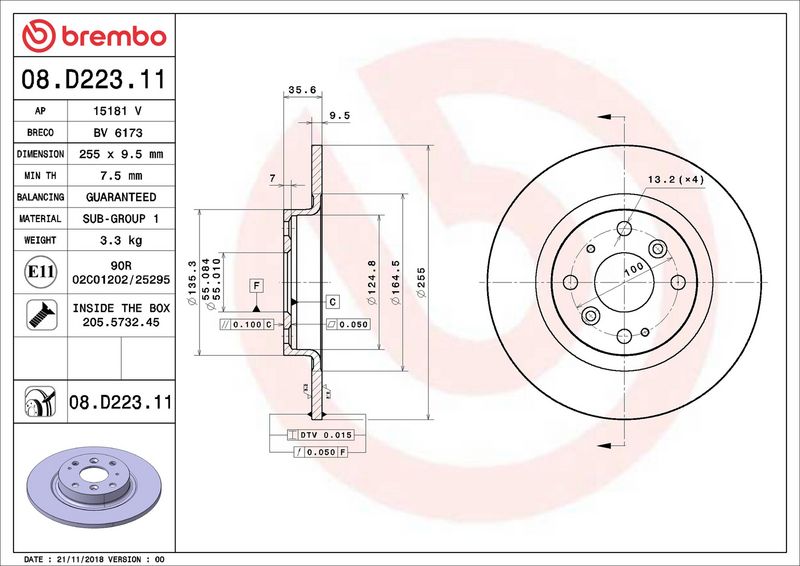

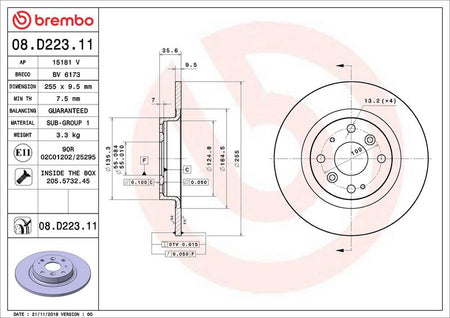

The Brembo 08.D223.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 9.5 mm brake disc thickness, 4 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Brake Disc Thickness [mm] : 9.5

Number of Holes : 4

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 36

Centering Diameter [mm] : 55

Outer Diameter [mm] : 255

Surface : Coated

Minimum thickness [mm] : 7.5

APEC : DSK3327
APEC : SDK7013
BLUE PRINT : ADM543133
BORG & BECK : BBD5518
BOSCH : 0 986 479 G72
DELPHI : BG5298C
FEBI BILSTEIN : 170726
HELLA : 8DD 355 134-831
MEYLE : 35-15 523 0033/PD
MINTEX : MDC3051C
NAPA : NBD5934
National : NBD1967
TEXTAR : 92338203
TRW : DF6796
