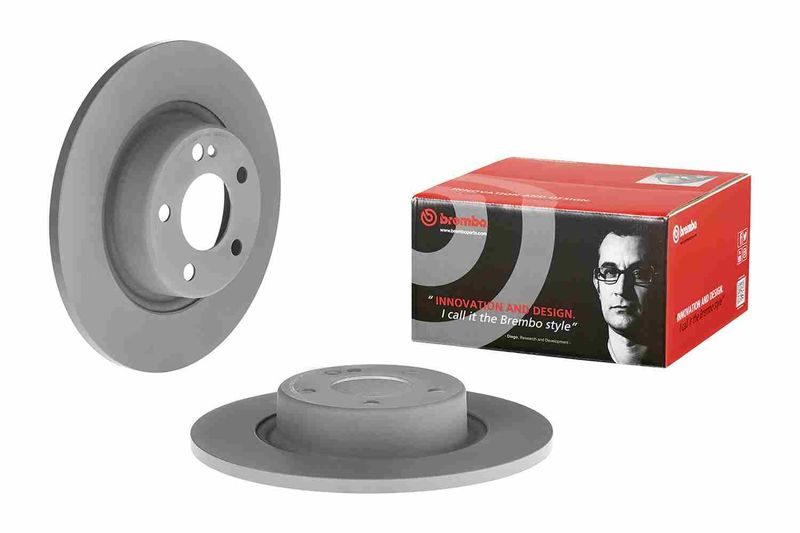

Brembo 08.D530.13 Brake Disc - 1
Brembo 08.D530.13 Brake Disc - 2
Brembo 08.D530.13 Brake Disc - 1
Brembo 08.D530.13 Brake Disc - 2
BREMBO

Brembo 08.D530.13 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 08.D530.13

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£175.44 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
C-CLASS (W205)
Description Cylinder Capacity Horse Power Year
C 200 (205.042) 1991 CCM 184 HP 12/2013 - 08/2018
C 220 BlueTEC / d (205.002, 205.004) 2143 CCM 170 HP 02/2014 - 05/2018
C 180 (205.040, 205.140) 1595 CCM 156 HP 03/2014 - 03/2021
C 220 BlueTEC / d (205.003) 2143 CCM 163 HP 03/2014 - 05/2016
C 250 BlueTEC / d (205.008, 205.006) 2143 CCM 204 HP 02/2014 - 05/2018
C 250 (205.045) 1991 CCM 211 HP 03/2014 - 05/2018
C 180 BlueTEC / d (205.036) 1598 CCM 116 HP 05/2014 - 05/2018
C 200 BlueTEC / d (205.037) 1598 CCM 136 HP 05/2014 - 05/2018
C 250 BlueTEC / d 4-matic (205.009) 2143 CCM 204 HP 02/2014 - 05/2018
C 300 BlueTEC Hybrid / h (205.012) 2143 CCM 231 HP 05/2014 - 05/2018
C 300 (205.048) 1991 CCM 245 HP 09/2015 - 08/2018
C 350 e (205.047) 1991 CCM 279 HP 02/2015 - 08/2018
C-CLASS T-Model (S205)
Description Cylinder Capacity Horse Power Year
C 220 BlueTEC / d (205.204) 2143 CCM 170 HP 09/2014 - 05/2018
C 250 BlueTEC / d (205.208) 2143 CCM 204 HP 09/2014 - 05/2018
C 180 (205.240) 1595 CCM 156 HP 09/2014 - 08/2020
C 200 (205.242) 1991 CCM 184 HP 09/2014 - 05/2018
C 250 (205.245) 1991 CCM 211 HP 09/2014 - 05/2018
C 180 BlueTEC / d (205.236) 1598 CCM 116 HP 09/2014 - 05/2018
C 200 BlueTEC / d (205.237) 1598 CCM 136 HP 09/2014 - 05/2018
C 250 BlueTEC / d 4-matic (205.209) 2143 CCM 204 HP 10/2014 - 05/2018
C 220 BlueTEC / d (205.204) 2143 CCM 163 HP 09/2014 - 05/2018
C 160 (205.244) 1595 CCM 129 HP 04/2015 - 11/2019
C-CLASS Coupe (C205)
Description Cylinder Capacity Horse Power Year
C 220 d (205.304) 2143 CCM 170 HP 10/2015 - 05/2018
C 250 d (205.308) 2143 CCM 204 HP 10/2015 - 05/2018
C 180 (205.340) 1595 CCM 156 HP 10/2015 - 08/2020
C 200 (205.342) 1991 CCM 184 HP 10/2015 - 05/2018
C 250 (205.345) 1991 CCM 211 HP 10/2015 - 05/2018
C 300 (205.348) 1991 CCM 245 HP 10/2015 - 12/2018
C 220 d (205.304) 2143 CCM 163 HP 10/2015 - 05/2018
C 220 d 4-matic (205.305) 2143 CCM 170 HP 04/2016 - 05/2018
C 250 d 4-matic (205.309) 2143 CCM 204 HP 04/2016 - 05/2018
C 200 4-matic (205.343) 1991 CCM 184 HP 04/2016 - 05/2018
C 220 d (205.314) 1950 CCM 194 HP 04/2018 - 04/2023
C-CLASS Convertible (A205)
Description Cylinder Capacity Horse Power Year
C 180 (205.440) 1595 CCM 156 HP 06/2016 - 08/2020
C 200 (205.442) 1991 CCM 184 HP 06/2016 - 05/2018
C 200 4-matic (205.443) 1991 CCM 184 HP 06/2016 - 05/2018
C 250 (205.445) 1991 CCM 211 HP 06/2016 - 05/2018
C 300 (205.448) 1991 CCM 245 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 170 HP 06/2016 - 05/2018
C 220 d 4-matic (205.405) 2143 CCM 170 HP 06/2016 - 05/2018
C 250 d (205.408) 2143 CCM 204 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 163 HP 06/2016 - 05/2018
C 220 d (205.414) 1950 CCM 194 HP 04/2018 - 04/2023
C 200 EQ Boost (205.477) 1497 CCM 184 HP 05/2018 - 04/2023

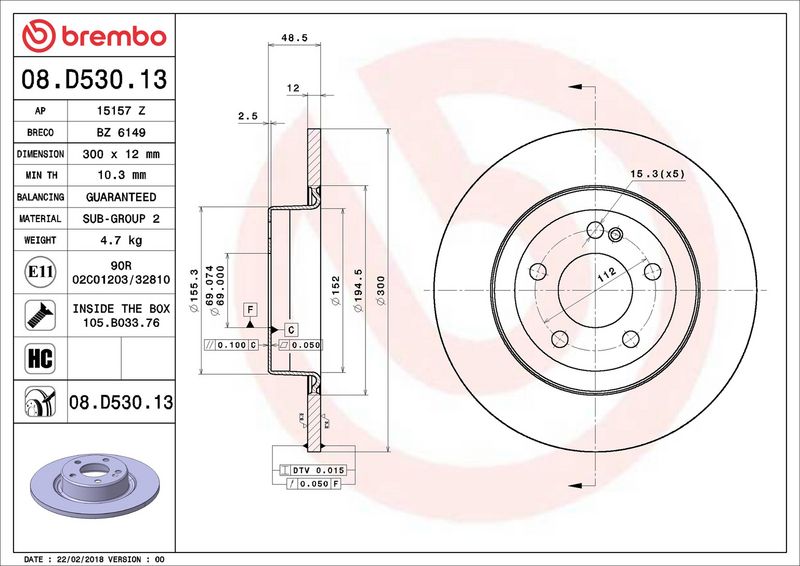

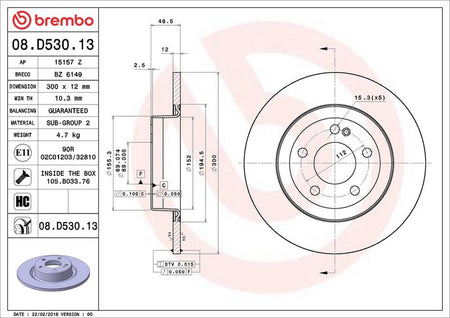

The Brembo 08.D530.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid, two-piece brake disc, and Steel Brake Disc Hub disc construction, 12 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 12
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 49
Centering Diameter [mm] : 69
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 10.3
Tightening Torque [Nm] : 150
  • Vendor BREMBO
  • SKU 08.D530.13
  • Barcode 8020584226193
  • MERCEDES-BENZ : 0004230512 A0004230512
  • MERCEDES-BENZ (BBDC) : A0004230512
  • APEC : DSK3352B
  • BLUE PRINT : ADU1743119
  • BOSCH : 0 986 479 H49
  • DELPHI : BG9542BC
  • FEBI BILSTEIN : 107726
  • MEYLE : 083 523 1000/PD
  • National : NBD2008
  • SKF : VKBD 91110 S1
  • TRW : DF6646S
  • TRW : DF6680
  • User manual
