BREMBO

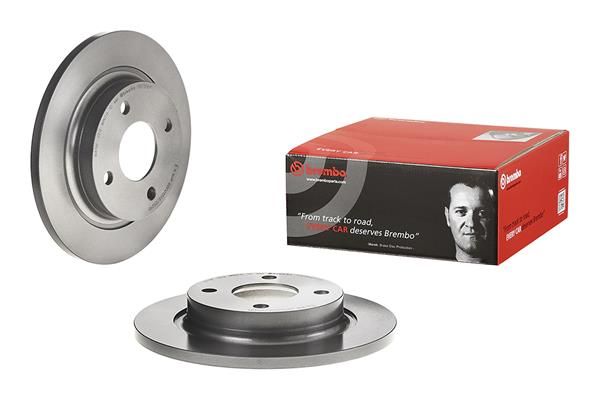

Brembo 08.D566.11 Brake Disc

SKU: 08.D566.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£50.06 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FIESTA VII (HJ, HF)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 101 HP From 05/2017
1.0 EcoBoost 998 CCM 125 HP From 05/2017
1.5 TDCi 1499 CCM 86 HP From 05/2017
1.5 TDCi 1499 CCM 120 HP From 05/2017
1.1 Ti-VCT 1084 CCM 71 HP From 05/2017
1.1 Ti-VCT 1084 CCM 86 HP From 05/2017
1.0 EcoBoost 998 CCM 140 HP From 06/2017
1.5 ST EcoBoost 1496 CCM 200 HP From 04/2018
1.0 EcoBoost 998 CCM 85 HP From 04/2018
1.0 EcoBoost 999 CCM 95 HP From 12/2019
1.1 Ti-VCT 1084 CCM 75 HP From 10/2019
1.0 EcoBoost mHEV 999 CCM 125 HP From 11/2019
1.0 EcoBoost mHEV 999 CCM 155 HP From 07/2020
1.0 EcoBoost mHEV Active 999 CCM 155 HP From 01/2021
1.0 EcoBoost mHEV Active 999 CCM 125 HP From 01/2021
FIESTA VII Van
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 125 HP From 09/2018
1.5 TDCi 1499 CCM 120 HP From 09/2018
1.1 Ti-VCT 1084 CCM 86 HP From 04/2019
1.5 TDCi 1499 CCM 86 HP From 04/2019
1.1 Ti-VCT 1084 CCM 71 HP From 04/2019
1.0 EcoBoost 998 CCM 101 HP From 04/2019
1.0 EcoBoost 998 CCM 140 HP From 04/2019
1.1 Ti-VCT 1084 CCM 75 HP From 04/2019
1.0 EcoBoost 999 CCM 95 HP From 12/2019
1.0 EcoBoost mHEV 999 CCM 125 HP From 06/2020
1.0 EcoBoost Flex 999 CCM 95 HP From 12/2019

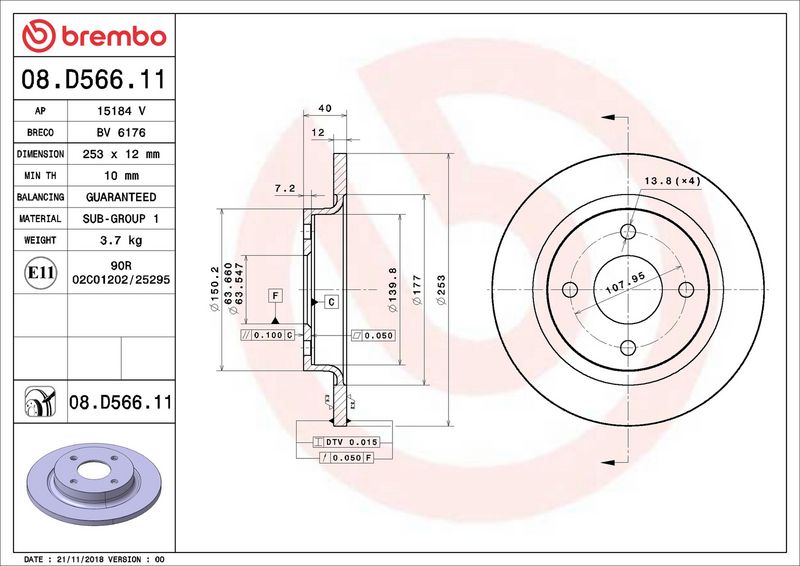

The Brembo 08.D566.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 12 mm brake disc thickness, 4 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 12
Number of Holes : 4
Height [mm] : 40
Centering Diameter [mm] : 64
Outer Diameter [mm] : 253
Surface : Coated
Minimum thickness [mm] : 10
  • Vendor BREMBO
  • SKU 08.D566.11
  • Barcode 8020584238158
  • FORD : 2096336 H1BC2A315AB
  • BLUE PRINT : ADF124364
  • BORG & BECK : BBD5575
  • BOSCH : 0 986 479 F63
  • DELPHI : BG4954C
  • FEBI BILSTEIN : 105850
  • FTE : 9082774
  • HELLA : 8DD 355 126-611
  • MEYLE : 715 523 0033/PD
  • MINTEX : MDC2812C
  • National : NBD2022
  • SKF : VKBD 91279 S2
  • TEXTAR : 92292803
  • TRW : DF6759
  • VALEO : 673122
