Brembo 08.R101.11 Brake Disc - 1
Brembo 08.R101.11 Brake Disc - 2
Brembo 08.R101.11 Brake Disc - 1
Brembo 08.R101.11 Brake Disc - 2
BREMBO

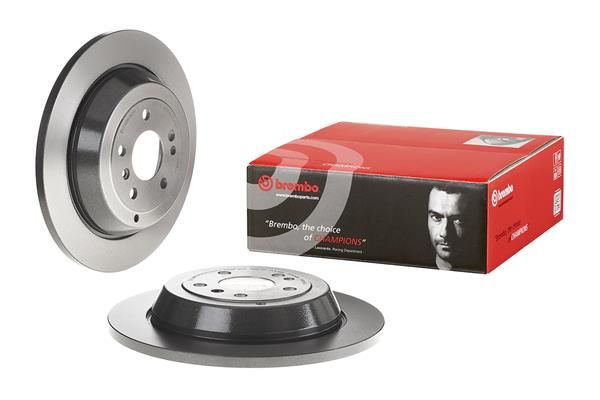

Brembo 08.R101.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 08.R101.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£134.03 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 350 4-matic (164.186) 3498 CCM 272 HP 02/2005 - 12/2011
ML 280 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2005 - 07/2009
ML 320 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2005 - 07/2009
ML 300 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 211 HP 09/2009 - 12/2011
ML 300 CDI 4-matic (164.121) 2987 CCM 204 HP 02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 231 HP 02/2010 - 12/2011
ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2987 CCM 211 HP 07/2005 - 07/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 350 CDI 4-matic (251.023, 251.123) 2987 CCM 265 HP 08/2010 - 12/2014
R 350 CGI 4-matic (251.057, 251.157) 3498 CCM 306 HP 10/2011 - 12/2014
R 350 4-matic (251.065, 251.165) 3498 CCM 272 HP 07/2005 - 12/2012
R 320 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 01/2006 - 07/2010
R 280 CDI 4-matic (251.020) 2987 CCM 190 HP 05/2006 - 12/2012
R 280 (251.054, 251.154) 2996 CCM 231 HP 01/2007 - 12/2014
R 350 (251.056, 251.156) 3498 CCM 272 HP 01/2007 - 12/2012
R 280 CDI (251.121, 251.026, 251.126) 2987 CCM 190 HP 05/2006 - 12/2012
R 300 CDI (251.021, 251.121, 251.026, 251.126) 2987 CCM 190 HP 07/2009 - 12/2012
R 300 CDI 4-matic (251.020) 2987 CCM 190 HP 07/2009 - 12/2012
R 350 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 07/2009 - 12/2012
R 350 CDI 4-matic (251.124, 251.125) 2987 CCM 211 HP 01/2006 - 12/2014

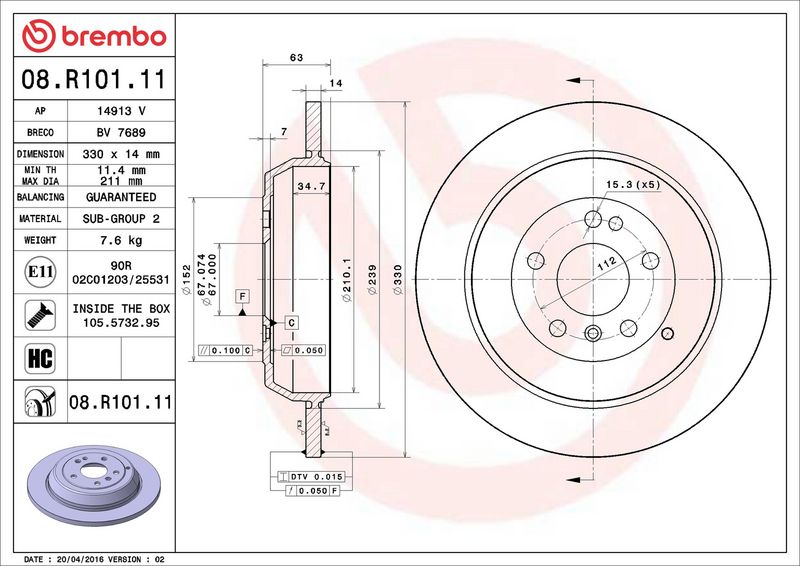

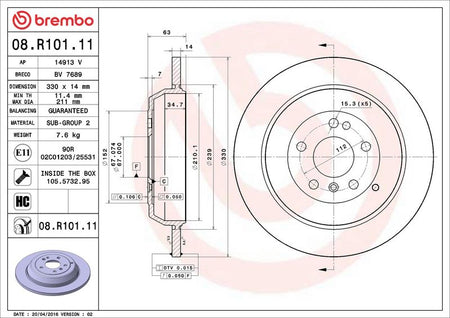

The Brembo 08.R101.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 14 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Brake Disc Thickness [mm] : 14
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 11.4
Tightening Torque [Nm] : 150
  • Vendor BREMBO
  • SKU 08.R101.11
  • Barcode 8020584014851
  • MERCEDES-BENZ : 1644230512 1644231212 A1644230512 A1644231212
  • APEC : DSK2386
  • APEC : SDK6443
  • BLUE PRINT : ADU174341
  • BORG & BECK : BBD4541
  • BOSCH : 0 986 479 330
  • DELPHI : BG4031
  • Fahren : FBD6443
  • FEBI BILSTEIN : 24747
  • FTE : 9071224
  • HELLA : 8DD 355 113-211
  • HELLA : 8DD 355 128-601
  • MEYLE : 015 523 0028
  • MEYLE : 015 523 0028/PD
  • MINTEX : MDC2066
  • NAPA : NBD5416
  • National : NBD1703
  • SKF : VKBD 90377 S1
  • TEXTAR : 92150803
  • TRW : DF4472
  • TRW : DF4472S
  • VALEO : 197545
  • VALEO : 673301
