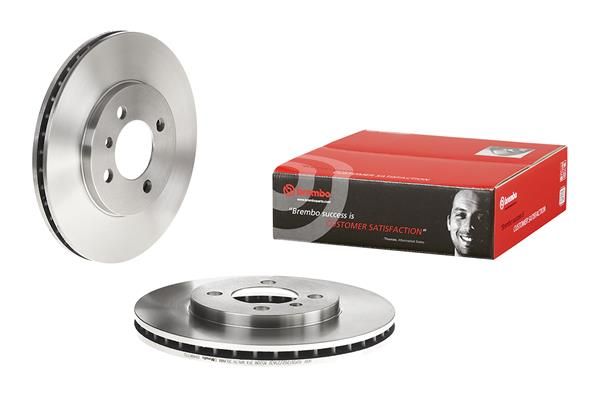

Brembo 09.4883.10 Brake Disc - 1

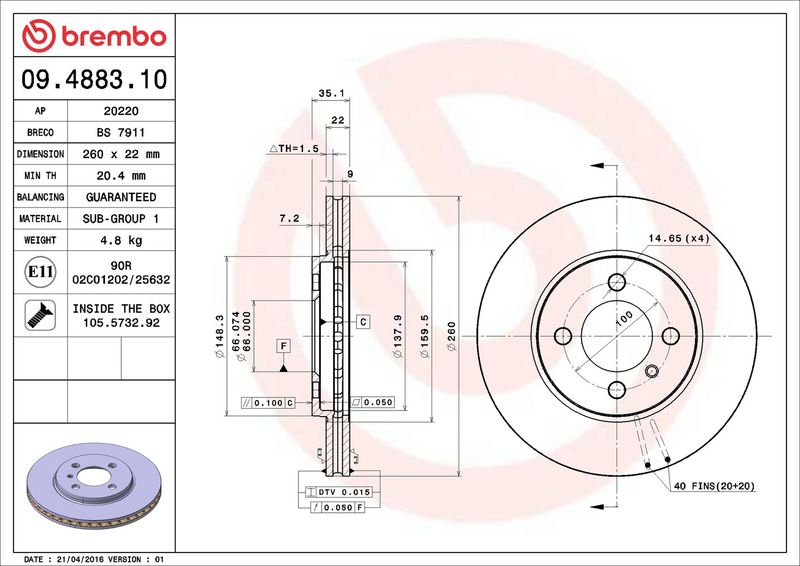

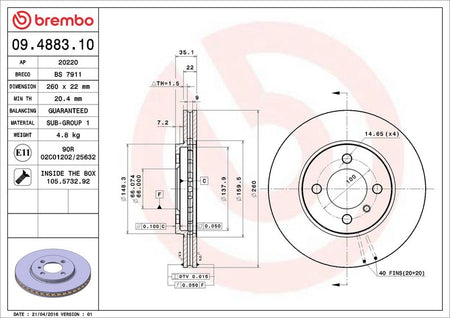

Brembo 09.4883.10 Brake Disc - 2
Brembo 09.4883.10 Brake Disc - 1
Brembo 09.4883.10 Brake Disc - 2
BREMBO

Brembo 09.4883.10 Brake Disc

SKU: 09.4883.10
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£62.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 (E30)
Description Cylinder Capacity Horse Power Year
316 (Ecotronic) 1766 CCM 90 HP 09/1983 - 06/1988
316 i 1596 CCM 100 HP 09/1987 - 06/1991
318 i 1766 CCM 102 HP 12/1984 - 08/1988
318 i 1766 CCM 105 HP 09/1982 - 08/1987
318 i 1796 CCM 115 HP 09/1987 - 06/1991
318 i 1796 CCM 113 HP 06/1987 - 12/1991
318 is 1796 CCM 136 HP 09/1989 - 08/1991
320 i 1990 CCM 129 HP 10/1986 - 04/1991
320 i 1990 CCM 125 HP 09/1982 - 12/1991
323 i 2316 CCM 139 HP 09/1982 - 08/1983
323 i 2316 CCM 150 HP 09/1983 - 09/1986
325 i X 2494 CCM 170 HP 09/1986 - 08/1991
3 Convertible (E30)
Description Cylinder Capacity Horse Power Year
318 i 1796 CCM 113 HP 09/1990 - 10/1993
320 i 1990 CCM 129 HP 05/1986 - 11/1993
325 i 2494 CCM 170 HP 08/1987 - 11/1993
325 i 2494 CCM 171 HP 12/1985 - 12/1987
318 i 1796 CCM 140 HP 10/1990 - 12/1992
320 i 1990 CCM 126 HP 07/1987 - 10/1993
316 i Baur TC 1596 CCM 99 HP 09/1987 - 12/1989
3 Touring (E30)
Description Cylinder Capacity Horse Power Year
318 i 1796 CCM 113 HP 04/1989 - 06/1994
320 i 1991 CCM 129 HP 01/1988 - 12/1991
325 i 2494 CCM 170 HP 07/1987 - 03/1993
325 i X 2494 CCM 170 HP 06/1988 - 10/1993
324 td 2443 CCM 115 HP 01/1988 - 06/1993
316 i 1596 CCM 100 HP 09/1991 - 06/1994
316 i 1596 CCM 102 HP 09/1991 - 06/1994
318 i 1796 CCM 115 HP 09/1987 - 06/1991
320 i 1991 CCM 126 HP 01/1988 - 12/1991
Z1 Roadster
Description Cylinder Capacity Horse Power Year
2.5 2494 CCM 170 HP 06/1988 - 06/1991

The Brembo 09.4883.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 66 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 35
Centering Diameter [mm] : 66
Outer Diameter [mm] : 260
Minimum thickness [mm] : 20.4
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.4883.10
  • Barcode 8020584488317
  • BMW : 34111154749 34111154750 34111160847 34111160915 34116752352
  • BLUE PRINT : ADB114335
  • BOSCH : 0 986 478 036
  • DELPHI : BG2347
  • FEBI BILSTEIN : 04059
  • FTE : 9072246
  • HELLA : 8DD 355 100-651
  • MEYLE : 315 521 3001
  • MINTEX : MDC391
  • National : NBD067
  • SKF : VKBD 80609 V2
  • TEXTAR : 92026500
  • TEXTAR : 92026503
  • TRW : DF2550
  • VALEO : 186119
  • VALEO : 673392
