Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

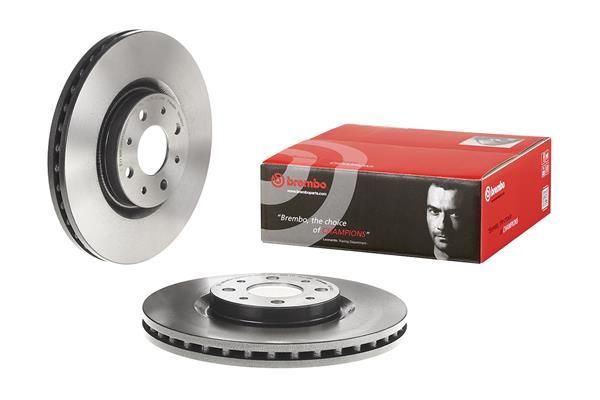

Brembo 09.5180.31 Brake Disc - 1
Brembo 09.5180.31 Brake Disc - 2
Brembo 09.5180.31 Brake Disc - 1
Brembo 09.5180.31 Brake Disc - 2
BREMBO

Brembo 09.5180.31 Brake Disc

SKU: 09.5180.31
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£86.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
MITO (955_)
Description Cylinder Capacity Horse Power Year
1.3 MultiJet (955AXT1A) 1248 CCM 84 HP 01/2011 - 12/2015
1.4 Bifuel (955AXG1A) 1368 CCM 120 HP 01/2009 - 08/2016
1.6 JTDM (955AXC1B) 1598 CCM 120 HP 08/2008 - 08/2015
1.4 TJet (955AXG1A) 1368 CCM 120 HP 08/2008 - 08/2013
1.3 MultiJet (955AXH1B, 955AXT1A) 1248 CCM 90 HP 08/2008 - 08/2010
1.6 JTDM (955AXE1B) 1598 CCM 115 HP 08/2008 - 08/2015
1.4 Turbo MultiAir (955AXM1A, 955AXR11) 1368 CCM 135 HP 10/2009 - 12/2014
CHRYSLER
DELTA
Description Cylinder Capacity Horse Power Year
1.4 1368 CCM 120 HP From 08/2011
1.4 16V 1368 CCM 140 HP From 08/2011
1.6 D Multijet 1598 CCM 120 HP From 08/2011
FIAT
500e (332_)
Description Cylinder Capacity Horse Power Year
Elektro 3+1 (FA1) 118 HP From 10/2020
Elektro (FA1) 95 HP From 10/2020
Elektro (FA1) 118 HP From 12/2022
500e Convertible (332_)
Description Cylinder Capacity Horse Power Year
Elektro (FA1) 118 HP From 10/2020
BRAVO II (198_)
Description Cylinder Capacity Horse Power Year
1.4 16V (198AXS1B) 1368 CCM 140 HP 04/2010 - 12/2014
2.0 D Multijet (198AXPIB) 1956 CCM 163 HP 09/2008 - 12/2014
1.9 D Multijet (198AXC1B) 1910 CCM 150 HP 04/2007 - 12/2014
1.4 T-Jet (198AXF1B) 1368 CCM 150 HP 09/2007 - 12/2014
2.0 D Multijet (198AXN1B) 1956 CCM 165 HP 09/2008 - 12/2014
STILO (192_)
Description Cylinder Capacity Horse Power Year
2.4 20V (192_XD1A, 192AXD12) 2446 CCM 170 HP 10/2001 - 04/2007
1.9 JTD 1910 CCM 140 HP 01/2004 - 08/2005
1.9 D Multijet 1910 CCM 150 HP 09/2005 - 11/2006
1.9 JTD 1910 CCM 126 HP 09/2003 - 11/2006
1.9 JTD 1910 CCM 136 HP 04/2004 - 11/2006
STILO Multi Wagon (192_)
Description Cylinder Capacity Horse Power Year
1.9 JTD 1910 CCM 140 HP 01/2004 - 08/2008
1.9 D Multijet (192DXT1B) 1910 CCM 150 HP 09/2005 - 08/2008
1.9 JTD 1910 CCM 126 HP 09/2003 - 08/2008
1.9 JTD 1910 CCM 136 HP 04/2004 - 08/2008
LANCIA
DELTA III (844_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (844.AXF11, 844.AXF1A) 1598 CCM 116 HP 08/2008 - 08/2014
1.6 D Multijet (844.AXP1A) 1598 CCM 105 HP 04/2011 - 08/2014
1.6 D Multijet (844.AXC11, 844.AXC1A) 1598 CCM 120 HP 09/2008 - 08/2014
1.4 16V (844.AXL1A) 1368 CCM 140 HP 07/2010 - 08/2014
ABARTH
500E Hatchback (332_)
Description Cylinder Capacity Horse Power Year
Scorpionissima 155 HP From 02/2023
500E Convertible (332_)
Description Cylinder Capacity Horse Power Year
Scorpionissima 155 HP From 02/2023

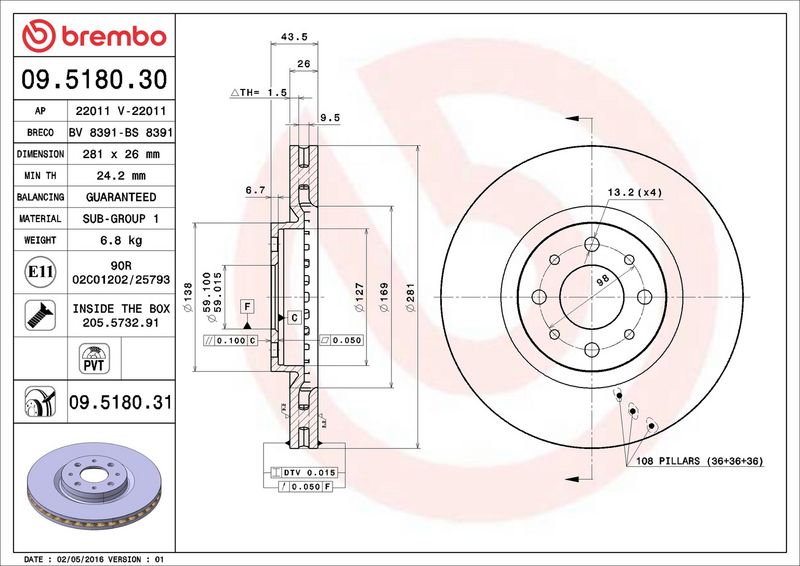

The Brembo 09.5180.31 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 4 mounting holes, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 4
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 44
Centering Diameter [mm] : 59
Outer Diameter [mm] : 281
Surface : Coated
Minimum thickness [mm] : 24.2
Tightening Torque [Nm] : 98
  • Vendor BREMBO
  • SKU 09.5180.31
  • Barcode 8020584023877
  • ALFA ROMEO : 46535086 46765546 6001073184 71773403
  • CHRYSLER : 46535086 46765546
  • FIAT : 46535086 46765546 52195818
  • LANCIA : 46535086 46765546
  • ABARTH : 52195818
  • APEC : DSK3878
  • BLUE PRINT : ADL144305
  • BORG & BECK : BBD4374
  • BOSCH : 0 986 478 855
  • BOSCH : 0 986 479 B52
  • BOSCH : 0 986 479 S97
  • DELPHI : BG5163C
  • FEBI BILSTEIN : 43960
  • FTE : 9072190
  • HELLA : 8DD 355 107-831
  • MEYLE : 215 521 0034
  • MEYLE : 215 521 0054/PD
  • MINTEX : MDC1592
  • MINTEX : MDC3168C
  • SKF : VKBD 80225 V2
  • TEXTAR : 92107703
  • TEXTAR : 92344703
  • TRW : DF4377
  • VALEO : 186745
  • VALEO : 672511
