Brembo 09.5180.41 Brake Disc - 1
Brembo 09.5180.41 Brake Disc - 2
Brembo 09.5180.41 Brake Disc - 1
Brembo 09.5180.41 Brake Disc - 2
BREMBO

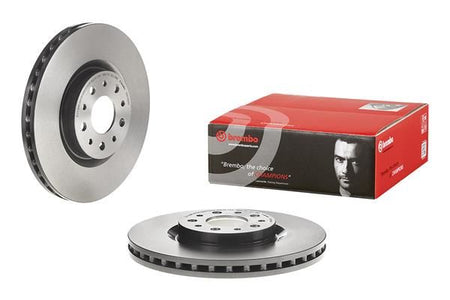

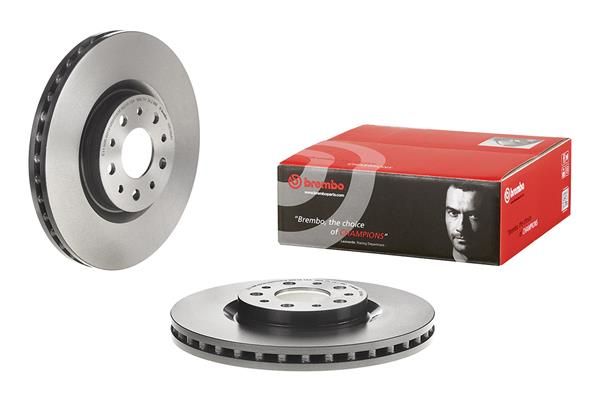

Brembo 09.5180.41 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.5180.41

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£101.69 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FIAT
TIPO Saloon (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356SXA1B) 1368 CCM 95 HP From 10/2015
1.6 (356SXE11) 1598 CCM 110 HP 10/2015 - 10/2020
1.3 D (356SXB1A, 356SXH1A, 356SXD1A) 1248 CCM 95 HP 10/2015 - 10/2020
1.6 D (356SXG1B) 1598 CCM 120 HP 10/2015 - 10/2020
1.4 LPG (356SXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.0 (357SXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357SXG1) 1598 CCM 131 HP From 11/2020
TIPO Hatchback (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356HXA1B, 357) 1368 CCM 95 HP From 03/2016
1.6 D (356HXG1B, 356HXG11) 1598 CCM 120 HP 03/2016 - 10/2020
1.3 D (356HXH1A) 1248 CCM 95 HP From 03/2016
1.4 (356HXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356HXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.6 (356HXE11) 1598 CCM 110 HP 07/2016 - 10/2020
1.0 (357HXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357HXG1) 1598 CCM 131 HP From 11/2020
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022
TIPO Estate (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356WXA1B) 1368 CCM 95 HP 03/2016 - 10/2020
1.6 D (356WXG1B) 1598 CCM 120 HP 03/2016 - 10/2020
1.3 D (356WXH1A) 1248 CCM 95 HP From 03/2016
1.4 (356WXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356WXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.6 (356WXE11) 1598 CCM 110 HP 07/2016 - 10/2020
1.0 (357WXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357WXG1) 1598 CCM 131 HP From 11/2020
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022

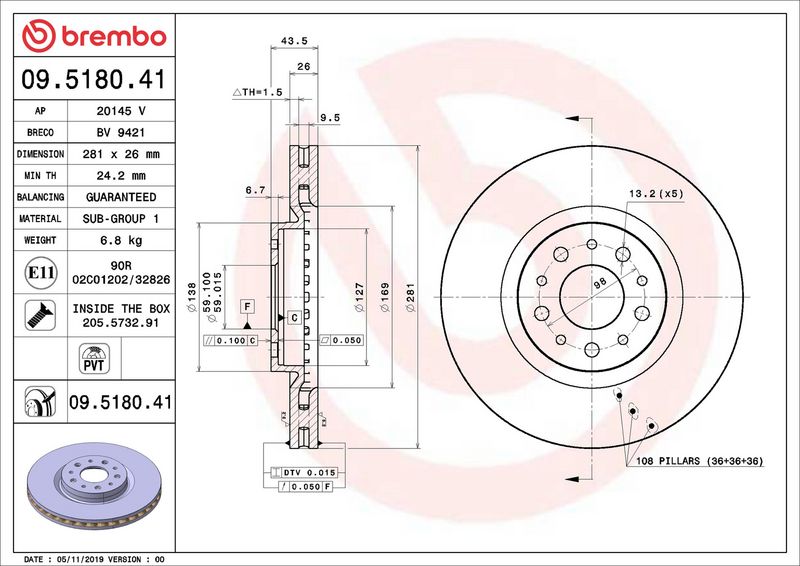

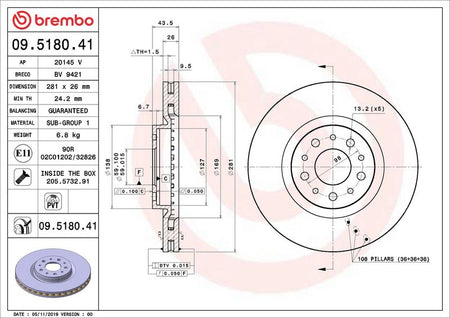

The Brembo 09.5180.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 44
Centering Diameter [mm] : 59
Outer Diameter [mm] : 281
Surface : Coated
Minimum thickness [mm] : 24.2
  • Vendor BREMBO
  • SKU 09.5180.41
  • Barcode 8020584310021
  • FIAT : 52017292 52017293 52067393 52067394
  • BLUE PRINT : ADBP430068
  • BORG & BECK : BBD5554
  • BOSCH : 0 986 479 G82
  • DELPHI : BG4821C
  • FEBI BILSTEIN : 173028
  • HELLA : 8DD 355 132-131
  • MEYLE : 215 523 0037/PD
  • MINTEX : MDC2877C
  • SKF : VKBD 80809 V2
  • TEXTAR : 92304803
  • TRW : DF6933
  • VALEO : 673168
