BREMBO

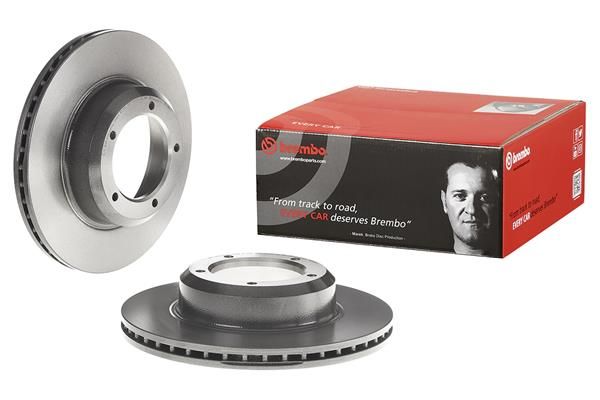

Brembo 09.5488.11 Brake Disc

SKU: 09.5488.11

Your selected vehicle

Out of stock

Out of Stock

£100.86 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER

DEFENDER Station Wagon (L316, L315)

Description	Cylinder Capacity	Horse Power	Year
2.5 TDI 4x4 (L316)	2495 CCM	113 HP	08/1990 - 12/1998
3.9 V8 4x4 (L316)	3947 CCM	185 HP	11/1998 - 02/2016
2.5 Td5 4x4 (L316)	2495 CCM	122 HP	06/1998 - 02/2016
2.2 Td4 4x4 (L316)	2198 CCM	122 HP	08/2011 - 02/2016
2.5 4x4	2495 CCM	83 HP	09/1990 - 12/1994
3.5 4x4	3528 CCM	117 HP	09/1990 - 08/1993
2.4 Td4 4x4 (L316)	2402 CCM	122 HP	10/2006 - 02/2016
2.5 D 4x4 (L316)	2495 CCM	69 HP	09/1990 - 07/1994
2.2 Td4 4x4 (L316)	2198 CCM	150 HP	02/2015 - 02/2016
3.5 4x4	3528 CCM	136 HP	09/1990 - 07/1994
2.4 Td4 4x4	2402 CCM	140 HP	07/2007 - 02/2016

DEFENDER Cabrio (L316)

Description	Cylinder Capacity	Horse Power	Year
2.5 TDI 4x4 (L316)	2495 CCM	113 HP	08/1990 - 11/1998
2.2 Td4 4x4 (L317)	2198 CCM	122 HP	08/2011 - 02/2016
2.5 Td5 4x4 (L316)	2495 CCM	122 HP	06/1998 - 02/2016
3.9 4x4	3947 CCM	182 HP	04/1998 - 09/2000
2.4 Td4 4x4 (L317)	2402 CCM	122 HP	05/2007 - 02/2016
2.5 D 4x4 (L316)	2495 CCM	69 HP	09/1990 - 07/1994
3.5 4x4	3528 CCM	117 HP	09/1990 - 08/1993

DEFENDER Platform/Chassis (L316)

Description	Cylinder Capacity	Horse Power	Year
2.2 Td4 4x4 (L317)	2198 CCM	122 HP	08/2011 - 02/2016
2.4 TD4 4x4	2402 CCM	122 HP	05/2007 - 02/2016

DEFENDER Pick Up (L316)

Description	Cylinder Capacity	Horse Power	Year
2.2 Td4 4x4 (L317)	2198 CCM	122 HP	08/2011 - 02/2016
2.5 Td5 4x4 (L316)	2495 CCM	122 HP	06/1998 - 02/2016
4.0 4x4	3947 CCM	182 HP	04/1998 - 09/2000
2.4 Td4 4x4 (L317)	2402 CCM	122 HP	05/2007 - 02/2016
2.4 Td4 4x4	2402 CCM	140 HP	10/2009 - 05/2016

DISCOVERY I (LJ)

Description	Cylinder Capacity	Horse Power	Year
2.5 TDI 4x4	2495 CCM	113 HP	10/1989 - 10/1998
3.5 4x4 (SALLJG)	3531 CCM	154 HP	06/1989 - 06/1994
2.0 16 V 4x4	1994 CCM	135 HP	06/1989 - 10/1998
4.0 4x4	3947 CCM	182 HP	09/1993 - 10/1998
3.5 4x4	3531 CCM	166 HP	06/1989 - 06/1994
3.5 4x4	3528 CCM	133 HP	06/1989 - 08/1990
2.5 TDI 4x4	2495 CCM	122 HP	06/1993 - 10/1998
2.5 D 4x4	2496 CCM	116 HP	10/1993 - 12/1998
4.0 4x4	3947 CCM	185 HP	09/1993 - 10/1998
3.5 4x4	3528 CCM	114 HP	11/1989 - 09/1990

RANGE ROVER

Description	Cylinder Capacity	Horse Power	Year
3.9 Cat 4x4	3947 CCM	173 HP	11/1988 - 07/1994
3.9 Vogue SEI 4x4	3947 CCM	182 HP	11/1988 - 07/1994
4.3 Vogue LSE 4x4	4275 CCM	203 HP	09/1992 - 07/1994
2.4 TD 4x4	2393 CCM	121 HP	10/1989 - 02/1992
2.5 TDi 4x4	2495 CCM	113 HP	11/1992 - 04/1996
2.5 TD 4x4	2498 CCM	121 HP	10/1989 - 11/1992
2.4 TD 4x4	2393 CCM	113 HP	04/1986 - 07/1994
3.9 4x4	3947 CCM	185 HP	10/1989 - 12/1994
3.9 4x4	3947 CCM	182 HP	11/1988 - 12/1992

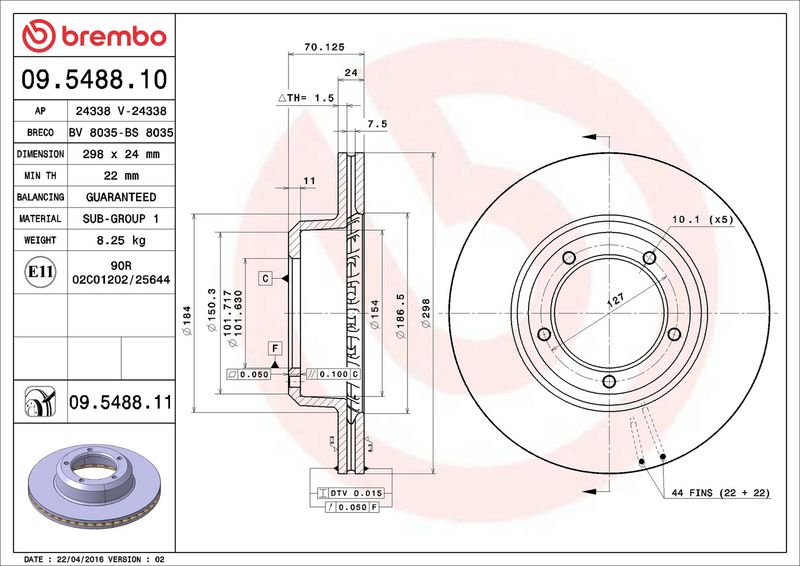

The Brembo 09.5488.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 102 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 24

Number of Holes : 5

Height [mm] : 70

Centering Diameter [mm] : 102

Outer Diameter [mm] : 298

Surface : Coated

Minimum thickness [mm] : 22

Tightening Torque [Nm] : 130

BLUE PRINT : ADJ134324
BORG & BECK : BBD4032
BOSCH : 0 986 478 824
DELPHI : BG2612C
FEBI BILSTEIN : 106297
HELLA : 8DD 355 103-161
MEYLE : 45-15 521 0004/PD
MINTEX : MDC565
SKF : VKBD 80504 V1
TEXTAR : 92061300
TRW : DF1803
VALEO : 673192

Brembo 09.5488.11 Brake Disc
