BREMBO

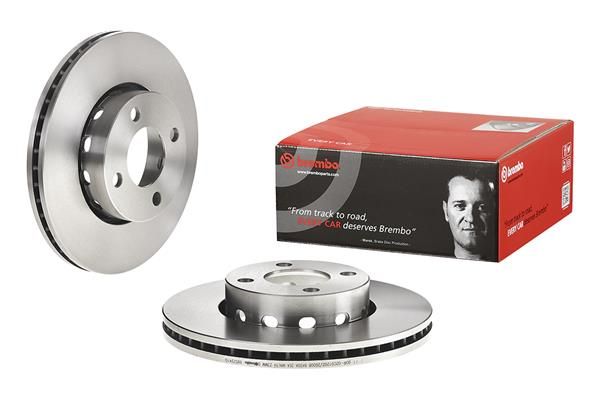

Brembo 09.5724.10 Brake Disc

SKU: 09.5724.10

Your selected vehicle

Out of stock

Out of Stock

£96.92 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI

80 B4 Avant (8C5)

Description	Cylinder Capacity	Horse Power	Year
2.6 quattro	2598 CCM	150 HP	07/1992 - 07/1995
2.8 quattro	2771 CCM	174 HP	08/1992 - 07/1995
2.8	2771 CCM	174 HP	09/1991 - 01/1996

80 B4 Saloon (8C2)

Description	Cylinder Capacity	Horse Power	Year
2.8	2771 CCM	174 HP	09/1991 - 12/1994
2.6 quattro	2598 CCM	150 HP	06/1992 - 12/1994

CABRIOLET B3 (8G7)

Description	Cylinder Capacity	Horse Power	Year
2.8	2771 CCM	174 HP	11/1992 - 08/2000

COUPE B3 (89, 8B3)

Description	Cylinder Capacity	Horse Power	Year
2.3 20V	2309 CCM	167 HP	08/1990 - 07/1991
2.6	2598 CCM	150 HP	08/1992 - 12/1996
2.8	2771 CCM	174 HP	09/1991 - 12/1996
2.3 20V quattro	2309 CCM	170 HP	11/1988 - 07/1991
2.3 20V quattro	2309 CCM	167 HP	05/1990 - 12/1996
2.6 quattro	2598 CCM	150 HP	08/1992 - 12/1996
2.8 quattro	2771 CCM	174 HP	08/1991 - 12/1996

The Brembo 09.5724.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 4 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

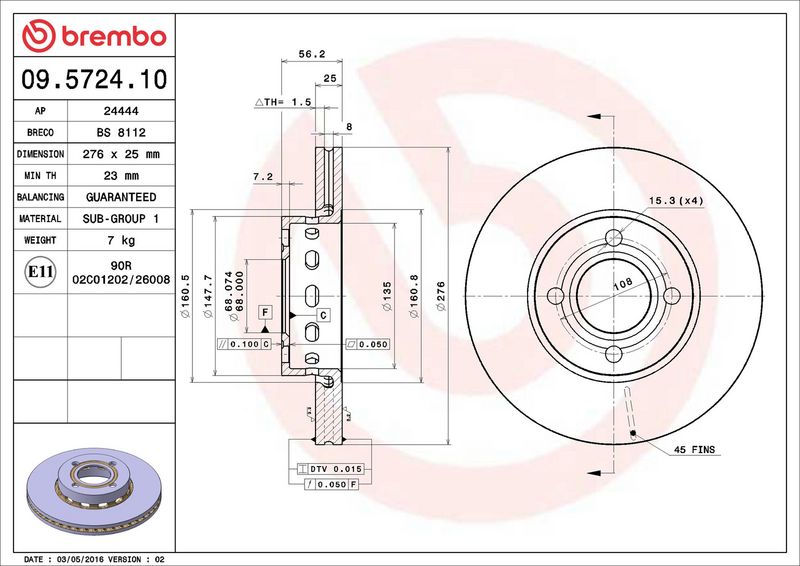

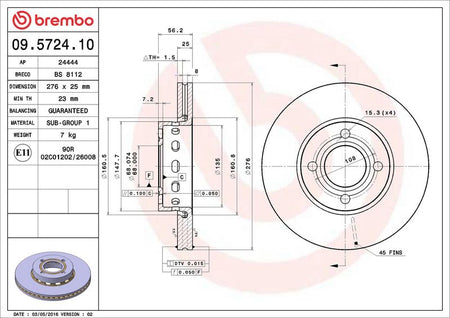

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 25

Number of Holes : 4

Height [mm] : 56

Centering Diameter [mm] : 68

Outer Diameter [mm] : 276

Minimum thickness [mm] : 23

Tightening Torque [Nm] : 120

Brembo 09.5724.10 Brake Disc
