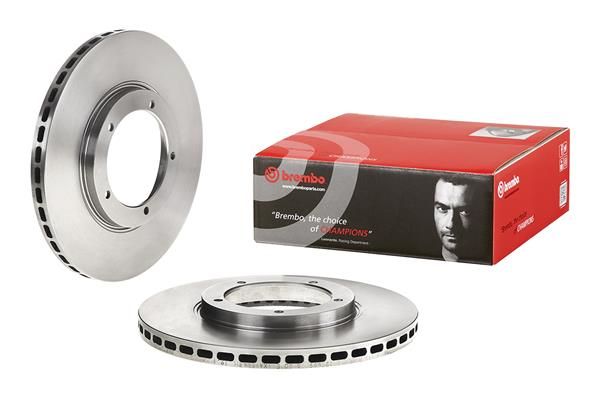

Brembo 09.5782.10 Brake Disc - 1

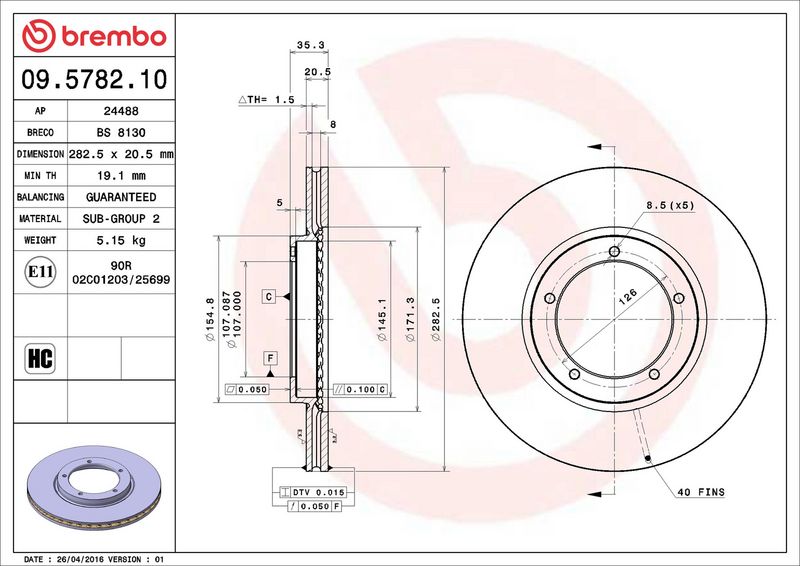

Brembo 09.5782.10 Brake Disc - 2
Brembo 09.5782.10 Brake Disc - 1
Brembo 09.5782.10 Brake Disc - 2
BREMBO

Brembo 09.5782.10 Brake Disc

SKU: 09.5782.10
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£69.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE
911
Description Cylinder Capacity Horse Power Year
2.2 T 2195 CCM 125 HP 01/1970 - 12/1972
2.3 T 2341 CCM 130 HP 01/1972 - 12/1973
2.7 2687 CCM 150 HP 09/1973 - 08/1975
2.7 2687 CCM 165 HP 09/1975 - 06/1977
3.0 SC Carrera 2993 CCM 180 HP 07/1977 - 06/1980
3.0 SC Carrera 2993 CCM 188 HP 09/1979 - 06/1980
3.0 SC Carrera 2993 CCM 200 HP 09/1975 - 06/1977
3.0 SC 2993 CCM 204 HP 08/1980 - 07/1983
2.3 S 2341 CCM 190 HP 08/1971 - 08/1973
2.3 E 2341 CCM 165 HP 08/1971 - 12/1973
911 Targa
Description Cylinder Capacity Horse Power Year
2.2 T 2195 CCM 125 HP 01/1970 - 12/1972
2.3 T 2341 CCM 130 HP 01/1972 - 12/1973
2.7 2687 CCM 150 HP 09/1973 - 08/1975
2.7 2687 CCM 165 HP 09/1975 - 06/1977
3.0 SC Carrera 2993 CCM 180 HP 07/1977 - 06/1980
3.0 SC Carrera 2993 CCM 188 HP 09/1979 - 06/1980
3.0 SC Carrera 2993 CCM 200 HP 09/1975 - 06/1977
2.0 E 1991 CCM 140 HP 09/1968 - 02/1972
2.0 T 1991 CCM 110 HP 06/1967 - 02/1972
2.2 E 2195 CCM 155 HP 09/1969 - 02/1972
2.0 L 1991 CCM 131 HP 01/1967 - 11/1968
2.0 S 1991 CCM 160 HP 07/1966 - 11/1968
2.2 S 2195 CCM 180 HP 09/1969 - 02/1972
2.3 E 2341 CCM 165 HP 08/1971 - 12/1973
2.7 SC Carrera RS 2687 CCM 209 HP 08/1972 - 01/1979
911 Convertible
Description Cylinder Capacity Horse Power Year
3.0 SC 2993 CCM 204 HP 08/1982 - 07/1983
914
Description Cylinder Capacity Horse Power Year
/6 2.0 1991 CCM 110 HP 11/1969 - 12/1973
924
Description Cylinder Capacity Horse Power Year
2.0 Turbo 1984 CCM 170 HP 11/1978 - 06/1980
2.5 S 2479 CCM 150 HP 09/1985 - 07/1987
2.5 S 2479 CCM 160 HP 08/1987 - 07/1988
2.0 Turbo 1984 CCM 177 HP 06/1980 - 10/1986
2.0 Carrera GT 1984 CCM 209 HP 06/1980 - 10/1986
944
Description Cylinder Capacity Horse Power Year
2.5 2479 CCM 150 HP 01/1985 - 07/1987
2.5 2479 CCM 163 HP 06/1981 - 07/1987

The Brembo 09.5782.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20.4 mm brake disc thickness, 5 mounting holes, and 107 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20.4
Number of Holes : 5
Height [mm] : 35
Centering Diameter [mm] : 107
Outer Diameter [mm] : 282
Machining : High-carbon
Minimum thickness [mm] : 19.1
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.5782.10
  • Barcode 8020584578216
  • PORSCHE : 477405083A 477405083B 477405083D 90135104116 90135104118 90135104120 90135140115 90135140116 91135104118 91135104120
  • BOSCH : 0 986 478 097
  • DELPHI : BG2692
  • FEBI BILSTEIN : 11442
  • National : NBD150
  • TEXTAR : 92006105
  • TEXTAR : 92006107
  • TRW : DF6486
