Brembo 09.5784.10 Brake Disc - 1
Brembo 09.5784.10 Brake Disc - 2
Brembo 09.5784.10 Brake Disc - 1
Brembo 09.5784.10 Brake Disc - 2
BREMBO

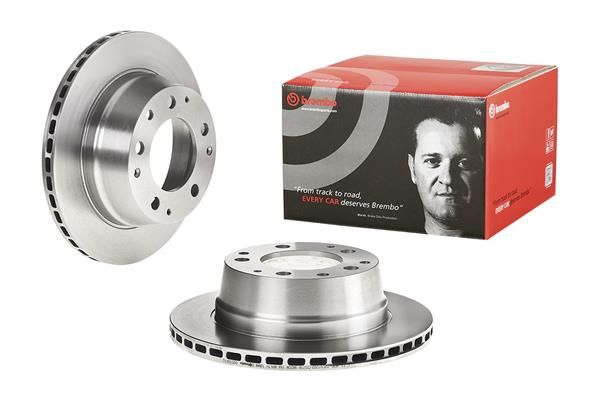

Brembo 09.5784.10 Brake Disc

SKU: 09.5784.10
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£98.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE
911
Description Cylinder Capacity Horse Power Year
2.2 T 2195 CCM 125 HP 01/1970 - 12/1972
2.3 T 2341 CCM 130 HP 01/1972 - 12/1973
2.7 2687 CCM 150 HP 09/1973 - 08/1975
2.7 2687 CCM 165 HP 09/1975 - 06/1977
3.0 SC Carrera 2993 CCM 180 HP 07/1977 - 06/1980
3.0 SC Carrera 2993 CCM 188 HP 09/1979 - 06/1980
3.0 SC Carrera 2993 CCM 200 HP 09/1975 - 06/1977
3.0 SC 2993 CCM 204 HP 08/1980 - 07/1983
2.3 S 2341 CCM 190 HP 08/1971 - 08/1973
2.3 E 2341 CCM 165 HP 08/1971 - 12/1973
911 Targa
Description Cylinder Capacity Horse Power Year
2.2 T 2195 CCM 125 HP 01/1970 - 12/1972
2.3 T 2341 CCM 130 HP 01/1972 - 12/1973
2.7 2687 CCM 150 HP 09/1973 - 08/1975
2.7 2687 CCM 165 HP 09/1975 - 06/1977
3.0 SC Carrera 2993 CCM 180 HP 07/1977 - 06/1980
3.0 SC Carrera 2993 CCM 188 HP 09/1979 - 06/1980
3.0 SC Carrera 2993 CCM 200 HP 09/1975 - 06/1977
2.2 E 2195 CCM 155 HP 09/1969 - 02/1972
2.2 S 2195 CCM 180 HP 09/1969 - 02/1972
2.3 E 2341 CCM 165 HP 08/1971 - 12/1973
2.7 SC Carrera RS 2687 CCM 209 HP 08/1972 - 01/1979
911 Convertible
Description Cylinder Capacity Horse Power Year
3.0 SC 2993 CCM 204 HP 08/1982 - 07/1983

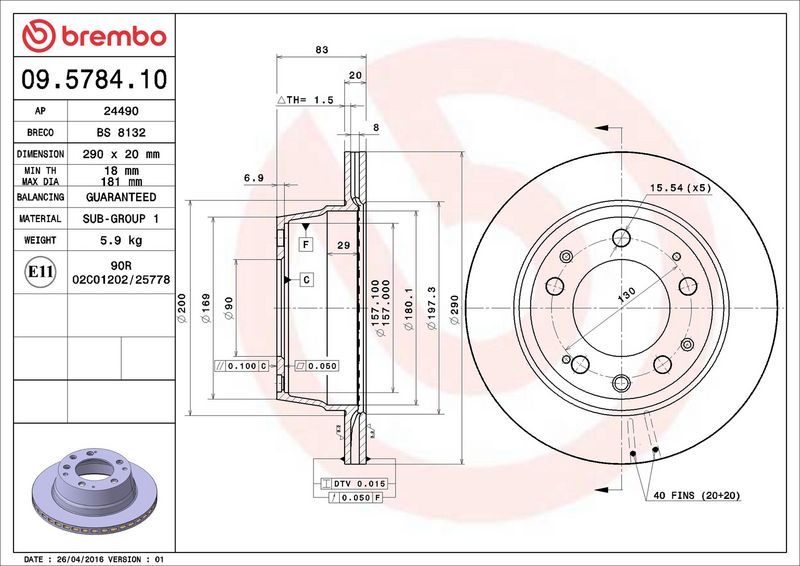

The Brembo 09.5784.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 90 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Height [mm] : 83
Centering Diameter [mm] : 90
Outer Diameter [mm] : 290
Minimum thickness [mm] : 18
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.5784.10
  • Barcode 8020584578414
  • PORSCHE : 90135204114 90135240114
  • BOSCH : 0 986 478 098
  • DELPHI : BG2766
  • MINTEX : MDC1091
  • TEXTAR : 92048300
